Double Safety Locks Garage Lift (LFP45/1750/A)

Name: Double Safety Locks Garage Lift (LFP45/1750/A)
Brand: ibuyautoparts.com
SKU: 728660632
Availability: InStock
Rating: 4.9 (44 reviews)

Price:	US $ 1500sets
Min Order:	1sets
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

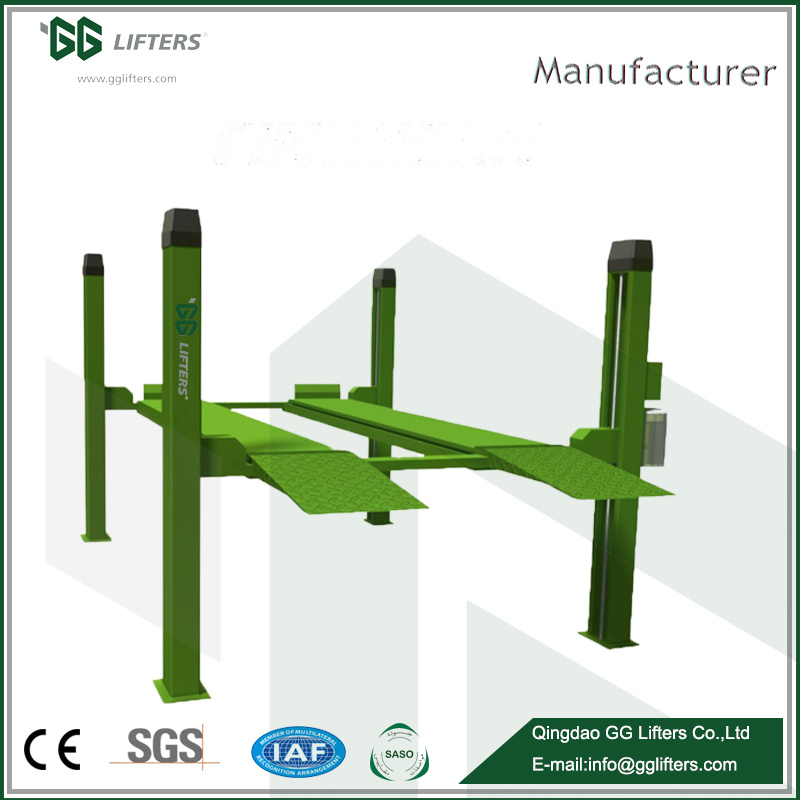

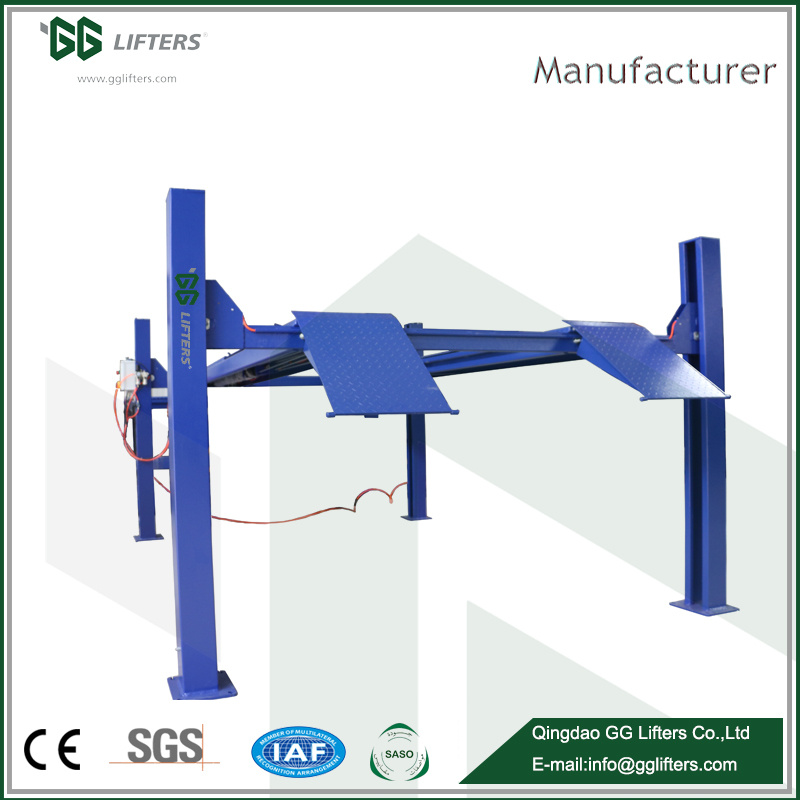

FOUR POST CAR LIFT

Hydraulic drive , steel rope lifting system

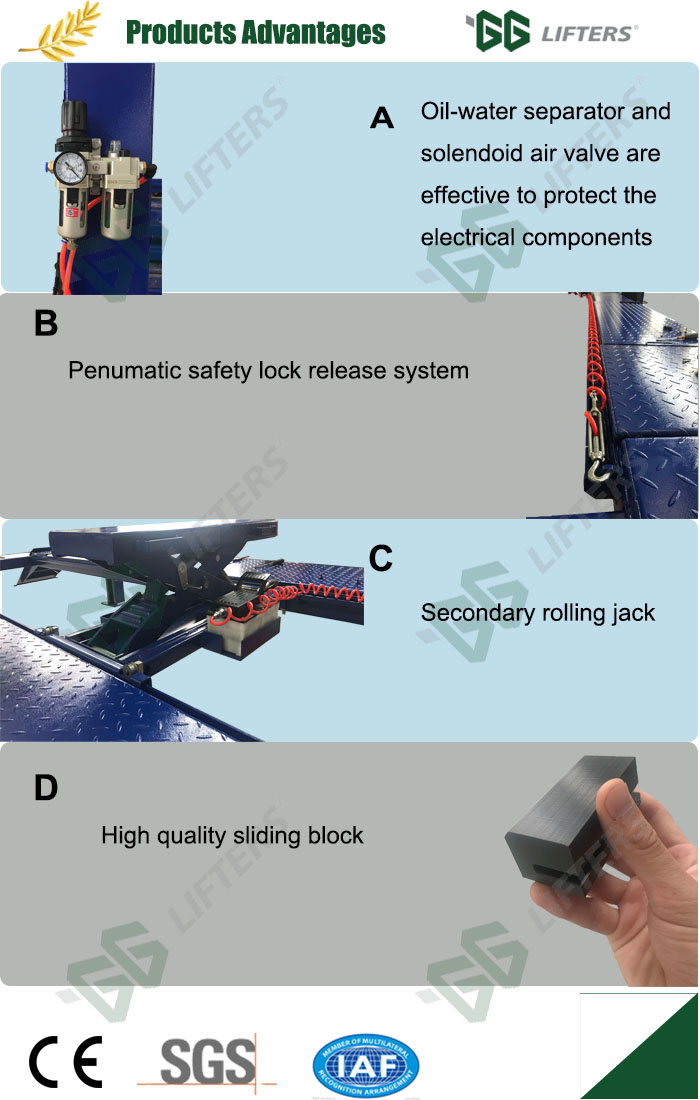

Adjustable self-lock system ensure the vehicle safe in different height , pneumatic lock release, steel rope anti-dropping device

Self-lubricating bearing to ensure the safety

Four points automatic safety locks

Heavy duty sliding turn plate

Slide way inside of the runway for other equipments

Anti-falling blocks in all the posts to add safety

Free caster kit for moving the lift ,Diamond plate runways and ramps

Hydraulic middle rolling jack , manual or pneumatic

Polished and powder coated posts.

PARAMETERS

Model NO.	LFP45/1750/A
Drive Mode	Hydraulic drive + steel rope
Loading Capacity	4500kg
Lifting Height	1750mm
Width Between Runways	945.5mm
Overall Height	2106mm
Outline Dimension	3083×5140×2106mm
Rise/Drop Time	90S/60S
Rated Oil Pressure	18Mpa
Surface Treatment	Powder coated
Safety Lock	Pneumatic lock release
Power Supply/Motor Capacity	220V/380V/2.2kw or according to customers' request
Safety	Four points automatic safety locks ,Multiple safety locks, Adjustable self-lock system to ensure safety

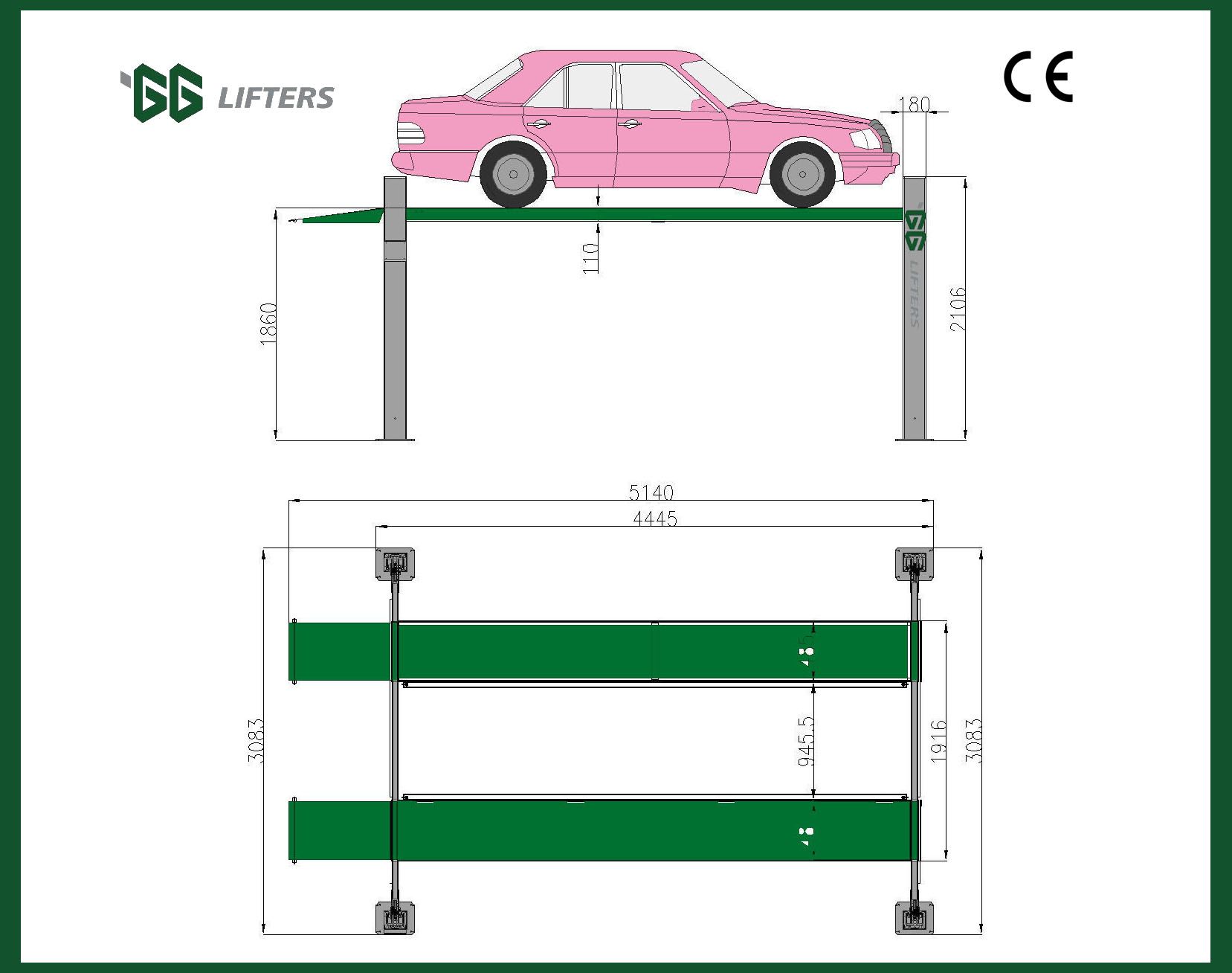

DRAWING

PHOTOS

Prod Model:	LFP45/1750/A
Outline Dimension:	308351402106mm
Max Lifting Height:	1750mm
Rise/Drop Time:	90s/60s
Warranty:	2 Years for Electric Parts, 5years for Steel Frame
Width Between Runways:	945.5mm
Safety Lock:	Pneumatic Lock Release
Power Supply/Motor Capacity:	220V/380V/2.2kw or Customerized
Type:	One Cylinder Hydraulic Lift
Lifting Capacity:	4.5T
Certification:	ISO
Design:	Two Post
Driving Type:	Hydraulic Drive + Steel Rope
Brand:	Gg Lifters

Qingdao GG Lifters Co., Ltd, an established Factory in Qingdao, China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking and car service lifts offered to our customers worldwide.

Our competent team in multi languages (English, Chinese, Italian, Arabic, Japanese, etc) is well prepared to anticipate, identify and exceed our customers' expectations. GG Lifters enjoys excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

GG Lifters through its Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.
