Double Row Angular Contact Bearing for Wheel Hub One Generation
Price: |
US $ 22-25/Piece |
Min Order: |
100/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
1)Augular Contact Ball Bearings(HUBI) Double-row augular contact6 ball bearing with integral high performance seal. Easier preload setting;
2)Double-row tapered roller bearing with integral high pearing with integral high performance seal. Suitable for heavy-duty vehicles;
More and more vehicles are equipped with wheel hub assemblies today with various kinds of designs.
The growth of these vehicles has also increased the demand for replacement market.
However the safety concerns and performance are always the top priority of the customers,
therefore CIE high quality wheel hub bearing assemblies are built to meet and satisfy the customers' requirement.
CIE meets the need for premium quality wheel hub bearing assemblies with:
"One stop service" from CIE on different generation designs.
More than 400 different types of wheel hub units in three generations are available from CIE. There is application coverage for American, European, Japanese and Korean vehicles.
Different configurations of wheel hub units are available to meet the customer's various needs.
CIE keeps inventory for most of popular items, so minimum order quantities (MOQ) are not required for many items.
CIE standardized packing and the environment-protected packing materials will increase efficiency for customers and reduce the impact and damage to the natural environment.

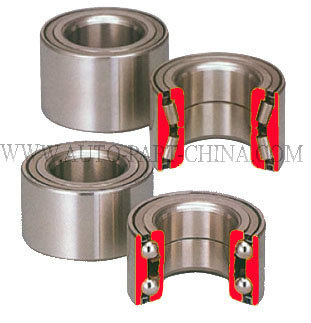

First Generation hub unit based on a double row angular contact ball bearing .
Used for both driven and non-driven wheel application.
Double row tapered roller bearings are also available.
Double row angular contact ball bearing Two inner rings (2)
Double row angular contact ball bearing Outer ring with flange
Double row tapered roller bearings
IB | NSK | FAG | SKF | Automotive type |
630374/C4 | | 522372 543909 | BB1B 630374/C4 614593 | Fiat, Seat, Polski |
DAC225200206A | | | | Fiat, Seat |
DAC255200206 | | | 617546A | Fiat, Seat |
DAC25520037 | | 576467 546467 | 445539AA | Renault, Peugeot, Citroen |
DAC25520043 | | | | Renault, Peugeot, Citroen |
DAC25550043 | | | | Renault |
DAC25560032 | | | BAH5000 | Citroen |
DAC25720043 | | | | |
DAC26520015 | | 639174 | | |
DAC27600050 | 27BVV06-2G | | | Nissan |
DAC28580042 | 28BW 03A 28BWD08A | | | SK410 |
DAC28610042 | 28BWD01ACA60 | | | Toyota |
DAC30500020 | | | | |
DAC30540024 | | | | |
DAC30600037 | FAG545312AJ22C | 256706 418780 | | Fiat, Lada, Lancia, Seat, Volvo |
DAC30600337 | | 529891AB 545312 581736 | BA2B 633313C 418780 405956A 615505 | Fiat, Lada, Lancia, Seat, Volvo |
DAC30620016 | | | | |
DAC30620032 | | | | |
DAC30640042 | 34BWD03ACA78 | | | |
DAC32700038 | | | | |
DAC34620037 | | 531910 561447 | 309724 BAHB 311316B | Audi, Volkswagen, Chrystrle |
DAC34640034 | | | | |
DAC34640037 | 6-256907AE7C17 HB-4022C | 532066DE 540466B 256907 | 309726DA 605124 421955 | Lada, Opel, Volkswagen, Bedford |
DAC34660037 | | 580400CA 479399 | 636114A | Opel, Vauxhall, Accord(Honda) |
DAC35550020 (Air Condition) | | | | |
DAC35640037 | | | | "" TJ7300, Daihastu() |
DAC35650035 | JRM3535 A/3565XD | | BT2B 445620B 443952 | Renault |
DAC35660032 | | | 445980A | Citroen |
DAC35660033 | | | BAHB633676 BAH-0015 | Fiat |
DAC35660037 | | 546238 544307 | BAHB311309 BAH-0023 | Volkswagen |
DAC35680037 | PLC 15-12 | 567918B 541153A 430042C | BAHB 633528F BAHB 633295B 633967 | Fiat, Lancia, Seat, Volvo, Zaztava |
DAC35680039/36 | 35BWD16 | | | Nissan |
DAC35680233/30 | | | | Nissan |
DAC35720017 | | | | |
DAC35720033 | | 548083 456162 | BA2B 446762B BA2B 445535AE | Citroen, Peugeot |
DAC35720034 | 35BWD01CCA38 | 540763 | | LZW7100 |
DAC35720228 | | 544033 | BA2B 441832AB | Citroen, Eugest, Renault, Simca, Talbot |
DAC35720233/31 | 35BWD06ACA11 35BWD08A | | | |
DAC35720433 | BAH-0013 | | BAHB 633669 | Fiat, Lancia |
DAC35720434 | | | | Honda |
DAC36680033 | DAC3668AWCS36 | | | Suzuki |
DAC36720033/28 | | | | |
DAC36720534 | 8236BW 01 BC A60 | | | Chrysrle,Honda |
DAC37720037 | PLC15-22 | 256908 468683 | | Fiat, Ford, Lancia, Renault, Chrysrle |
DAC37720237 | | 527631 | BA2B 633028CB BAH0012 | |
DAC37720437 | | 562398A | 633531B | Alfa romeo, Fiat, Lancia, Chrysrle, Renault |
DAC37740045 | | 541521C | 309946AC 303946 | BMW, Opel, Ford |
DAC38700037 | | | 636193C | |
DAC38700038 | 38BWD21CA53 | DE-08A32 | 686908A | "" 7100, Charde |
DAC38710033/30 | | | | |
DAC38710039 | | | | |
DAC38710233/30 | 38BWD09A | | | Toyota |
DAC38720040 | 38BVV07-10G | | | |
DAC38720236/33 | 38BWD12CA145 | | | Honda, Rover |
DAC38730040 | 38BVV07-20G | | | |
DAC38740036/33 | 38BVV07-26G 38BWD15ACA63 | | 574795A | Toyota |
DAC38740050 | 38BWD06DACA71 | 559192 (636146) | | Nissan |
DAC38740236/33 | 38BWD01A1ACA147 | | | Toyota |
DAC38740450 | | | | Nissan |
DAC39/41750037 | AUDI80 | 567447B 328723 | BAHB 633815A | Audi,Passat B5 |
DAC39680037 | 4T-CRI-0868 JRM3939C | 540733 528810 439622C | BA2B 309692 BA2B 309396 309791 311315BD | Volkswagen, Ford, Audi, Santana |
DAC39680637 | | | | Volkswagen, Ford, Audi |
DAC39680737 | | | | Volkswagen, Ford, Audi, Chrysrle |
DAC39720037 | LDJT39=1 | 542186A 581169 | 309639 BAHB 311396B BAH0036 | BMW, Opel, Ford, Bedford, Vauxhall |
DAC39720637 | | 542186CA | | BMW, Opel, Ford, Bedford, Vauxhall |
DAC39740039 | | 579557 | BAHB 636096A | Opel, Vauxhall |
DAC401080017/32 | | 445533 | | |
DAC40660024 | | | | |
DAC40680042 | | | | |
DAC40720036 | | | DAC4072 | |
DAC40720037 | | 566719 | BAHB311443B | Volkswagen, Seat |
DAC40720437 | | | | |
DAC40720637 | | | | |
DAC40740036 | 40BWD15BCA50 | | | Malaysia |
DAC40740036/34 | | | | |
DAC40740040 | | | 40BWD06B | |
DAC40750037 | | | BAHB 633966E | Ford |
DAC40760033 | | | | |
DAC40760033/28 | | 539166AB | | Chrysrle, Volkswagen |
DAC40760040/38 | | | | |
DAC40760041/38 | 8640BWD05CA A60 | | | Honda, Rover |
DAC40760441/38 | | | | |
DAC408000302 | | 523854 | 440320H | Peugeot, Simca, Talbot |
DAC40800031 | | | BA2B 445469 BA | |
DAC40800036 | | | | |
DAC40800036/34 | | | 636187A | GM |
DAC40820040 | | | | Citroen |
DAC408402538 | | | | Renault |
DAC401100017/38 | | | | |
DAC41680040/35 | | | | |
DAC42720038 | 4T-CRI-0822 | | | Mazda, Ford |
DAC42720038/35 | 42KWD02 | | | |
DAC42750037 | | 533953 545495D 521771 | 633457 BAHB 311424 BA | Alfa Romeo, Audi, Porsche, Saab, BMW |
DAC42760033 | | | | |
DAC42760038/35 | 42BWD06 | 510009 | | Nissan |
DAC42760039 | | | | Chrysler |
DAC42760040/37 | | 547059A | BA2B 309796BA 909042 | Chrysler |
DAC42800037 | | | BAHB 633770 BAH0004-A | Alfa Romeo |
DAC42800042 | | | | |
DAC42800045 | | | | |
DAC42800342 | | 527243C 582226 | BA2B 309609 AD 305988 303609 | BMW, Chrysrle |
DAC42820036 | | 561481 588226 | BA2B 446047 | Citroen, Peugeot |
DAC42820037 | | 565636 | BAHB 311413 A | Audi |
DAC42840036 | | 564727 | BA2B 444090AB | Peugeot, Simca, Talbot, " 505" |
DAC42840039 | | 543359B | 440090 | Renault, Peugeot |
DAC42840236 | | | | |
DAC43/45820037 | | 567519A | BAHB 633814A BAH0011A | Audi |
DAC43/45850037 | | | BAHB 636214A | Audi |
DAC43770038 | | | | |
DAC43790041/38 | | | | |
DAC43800038 | | | | Ford, Seat, Volkswagen |
DAC43800045/50 | 43BWB03 | | | |
DAC43800050/45 | | | | |
DAC43820045 | 43BWD06 | 510006 | | |
DAC44825037 | | | | Citroen, Fiat, Peugeot |
DAC45800045 | | 564725AB | | |
DAC45830045 | | | | |
DAC45840039 | | 547103E | BAHB 309797C BAHB 633809AC | Citroen, Mercedes, Peugeot |
DAC45840041/39 Front Wheel) | 45BWD03 | | | honda |
DAC45840042/40 | | | | |
DAC45850023 | | 4209BTVH | 4209ATN9/ MT33VB2669 | Ford, Citroen, Fiat |
DAC458500302 | | | | Ford |
DAC45850041 | | 580191 | BAHB 633960 | BMW |
DAC45880039 | GB40300S03 | | | |
DAC45880239 | | | | |
DAC47810053 | | | | |
DAC49840048 | | | BTHB329129DE | |
DAC49880046 | | 572506E | | BENZ |
DAC50900034 | | 528514 | 633007C | |
DAC50900035 | | | | |
Features and benefits provided by CIE hub bearing units:
ABS sensors are 100% tested for proper operation and performance.
CIE wheel hub units feature an integral raceways with precise clearances for extended life.
CIE wheel hub units are sealed and greased for life.
CIE wheel hub units include various design for integration with ABS (Anti-lock Brake System) sensor like the original units.
The raceways of CIE wheel hub units are induction-hardened for increasing bearing performance.
High temperature seals with multiple lip design to eliminate grease leakage and prevent contamination.
High quality grease provides optimum bearing performance.
CIE wheel hub assemblies have the same design as original equipments' in first ,second and third generation units.
If there is any question. Welcome to contact us in details

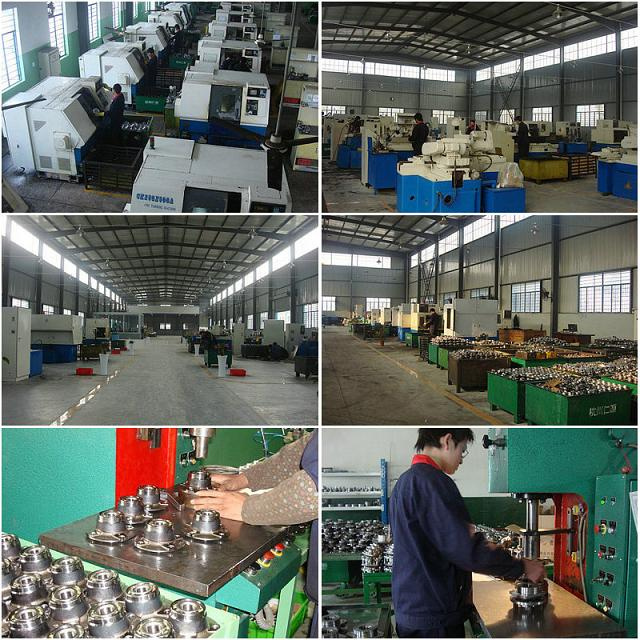

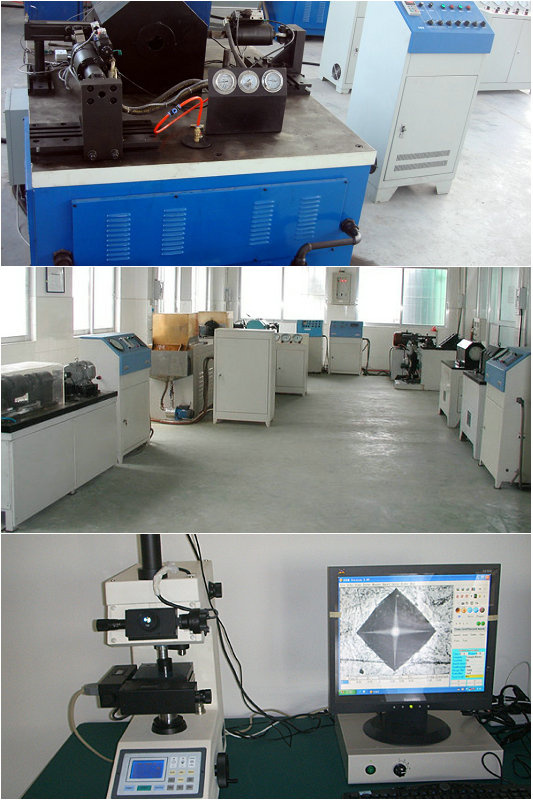

And Our workroom, Test Lab and fair Booth at a glance:
Prod Model: |
CIE-DR-020 |
Type: |
Wheel Hub Bearing |
Material: |
Chrome Steel |
Tolerance: |
P5 |
Certification: |
QS9000 |
Clearance: |
C2 |
ABS: |
Without ABS |
Brand: |
Cie |
INGBO CIE INDUSTRY AND TRADE Co., Ltd was established from 1988 in China and export more than 30 years old mainly for Industrial bearing Our Head Company registered capital is USD1, 500, 000, and we have 1, 200 employees contributing to the turnover of more than 0.8 billion US dollars.
We have passed the evaluations of ISO9001: 2001 quality management system, ISO14001: 2004 environment management system and OHSAS18001: 1999 certification. We possess more than ten subsidiary companies, an industrial zone named CIE Industry occupying 25, 000 square meters, and more than ten manufacturing factories respectively engaged in high quality automotive parts and bearings, including automotive wheel bearings and kits, auto bearings, automotive bearings, wheel-hub units and kits, air-conditioner compressor bearings, steering-gear bearings, deep groove ball bearings, tapered roller bearings, needle roller bearings and special non-standard bearings, ball screw, linear guide rail and block assembly, steering systems with power steering gear, manual steering gears like recirculating balls and nut steering gears, racks and pinion steering gears, steering columns, steering linkages, as well as steering gearbox parts like gear sector shafts, worm assemblies and ball screws, linear guide rails and block systems. You can find our products installed as OEM equipment in automobiles from Europe, Asia and the U. S. A.
Our subsidiary company-CIE Auto Source Industry Co., Ltd. Was established in 1996, and is strong at the production of bearings, Power Transmission Parts and Steering System, of which the details focus on the following issues:
Design strength:
Our in-house team of approximately 60 experienced engineers is constantly developing newer and better bearing models, and auto parts mainly for steering systems. The most advanced computer aided design (CAD) systems and Germany-imported grinder machines are utilized to incorporate your specific requirements. Our ratio of R&D investment is much higher than the average in domestic industry.
Quality control:
Some of our QC instruments and meters are imported from Japan and Germany. We inspect every item with Talyrond roundness testing instruments before packaging. Our team also performs noise and vibration tests as well as radial and axial clearance inspection. Steering system parts are inspected on fatigue test bench, metering inspection center, 3D measuring apparatus, performance test bench and alignment test bench.
Services:
We are committed to providing first class services and top quality products through:
1)Developing trading relationships of mutual trust with customers and suppliers;
2)Training and development of all our employees to enable them to release their full potentials and provide career progression;
3)Supporting objectives which safeguard the environment, leading to better working practices and safety running of machine and operation;
4)Improving efficiency by incorporating technological solutions
5)Exceeding customer's expectation for service, quality and value for money\
6)Improving communications with our customers, suppliers and staff to keep them up to date with industrial development and news
Constantly contacting customers for product's further development is given higher priority at NINGBO CIE INDUSTRY AND TRADE Co., Ltd., and serious development work relies on knowing the demands and requirements of the market.
