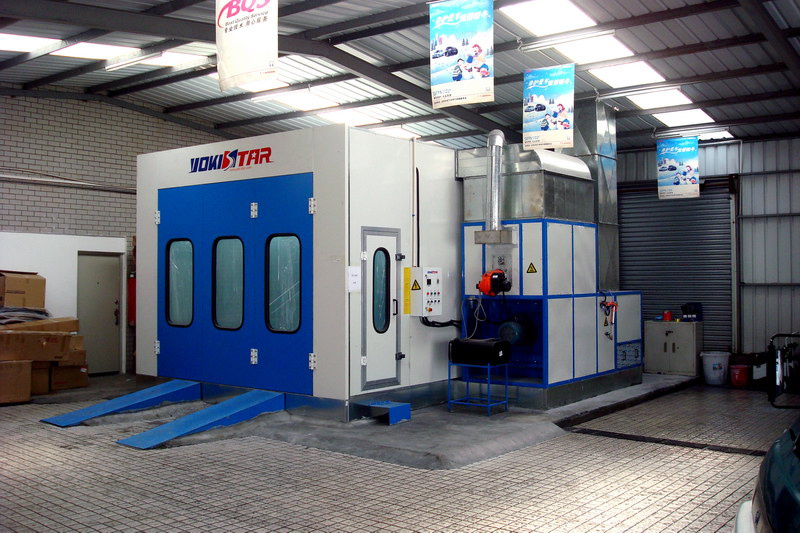

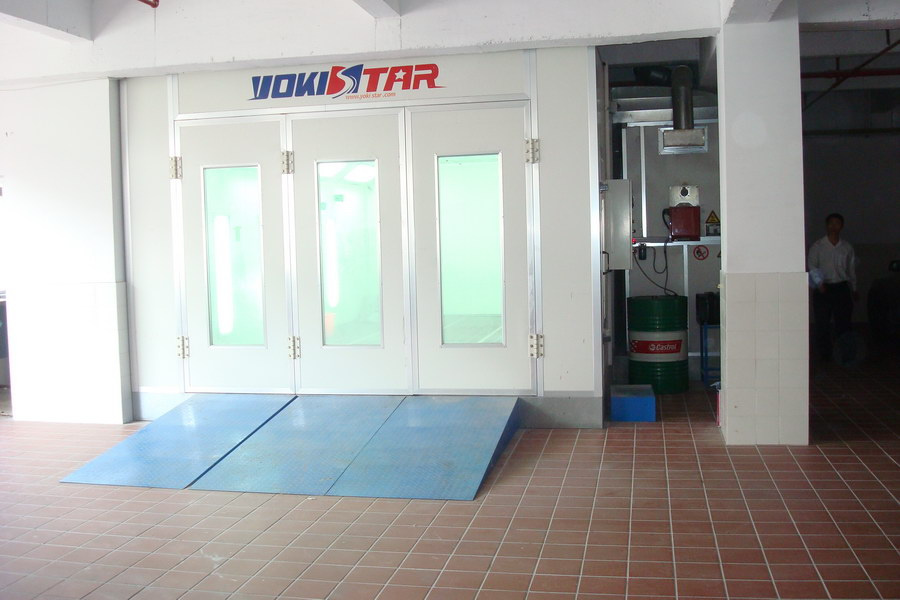

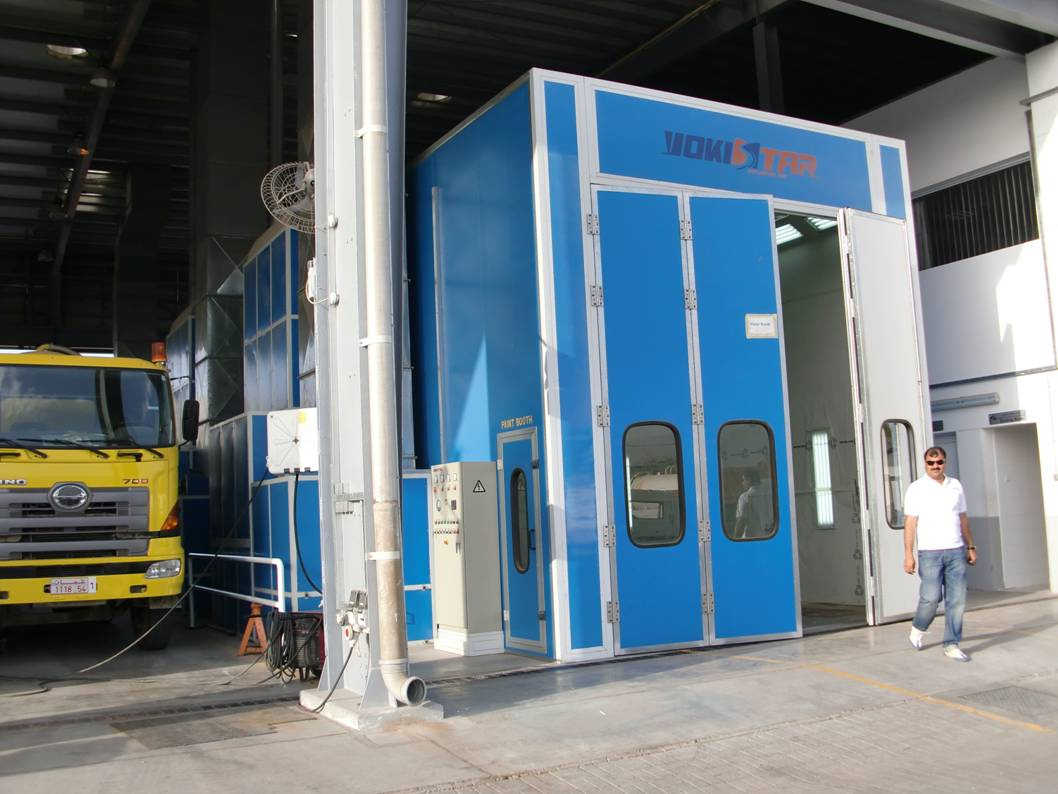

Model: YS-60
Inside dimention: 6900*3900*2650mm L*W*H
Any Size Requirements Can Be Met.
Designed according to European standardA. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.WarrantyThe goods are guaranteed for 12 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine. YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.
| Specification for Spray Booth YS-60 |
| Outside dimension | 6900×3900×2650mm L×W×H |
| Outside dimension | 7000×5450×3400mm L×W×H |
| Main door | Folding door, 4 folds, 3000×2700mm W×H, made by bending steel without cover frame, colour : blue. |
| Escape door | 1 unit, 800×2000mm W×H, colour: white |
| Basement | Galvanized steel assemble, 300mm high, with adjustable bolts, quadrate steel support, 5 rows of grilles made by flat bar and twisted steel, then galvanized. 4 ramps, external setting, 750×2000mm/pc. |
| Wall Panels | Thickness: 50mm, width:1150mm, tongue and groove structure, 0.476mm colour steel with 50mm thick rock wool inside, colour: white. |

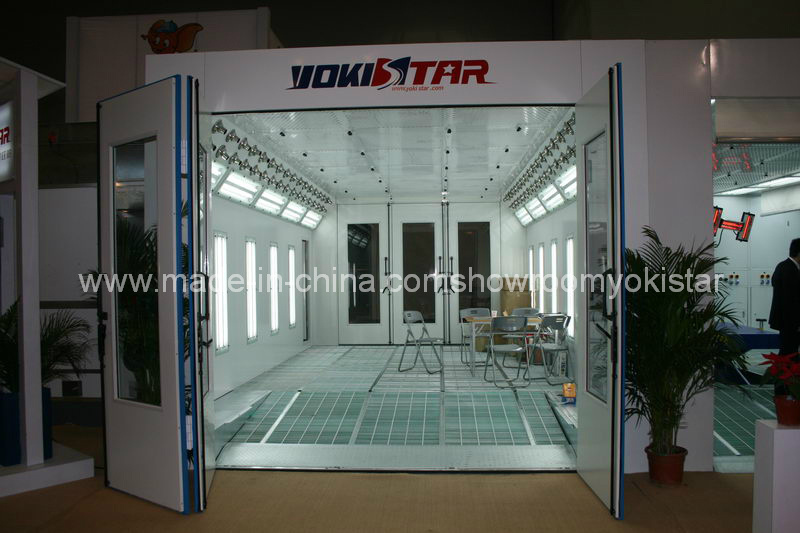

| Lighting | Ceiling Lights: 8Units×4Pcs=32Pcs×58W, with electronic ballasts, lighting boxes are powered coated. |
| Side Lights: 13Units×4Pcs=52Pcs×18W, with electronic ballasts, horizontally set, lighting boxes are powered coated. |
| Generator setting | Intake air from back upper direction, exhaust air from back upper aluminium alloy steel molding frame; white coated steel outside, galvanized steel inside, filled with heat preservation material in the middle. |
| Intake and Exhaust air system | 1×7.5KW turbo fan, power: 7.5KW, air capacity: 25000m3/h. |
| 1×7.5KW turbo fan, power: 7.5KW, air capacity: 25000m3/h. |
| Heating system | RIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 26000kcal/h. |
| Filtering system | Pre-filter, ceiling filter, fibreglass filter, activated carbon filter |
