| Prod Model: |
JF-X30 |
| Lifting Height: |
1880mm |
| Platform Length: |
1480-2080mm |
| Platform Width: |
650mm |
| Initial Height: |
105mm |
| Motor Power: |
380V/220V 3kw |
| Air Pressure: |
0.4-0.6MPa |
| Type: |
Double Cylinder Hydraulic Lift |
| Lifting Capacity: |
3T |
| Certification: |
ISO |
| Design: |
Two Post |
| Brand: |
Jf |
Product Description
Shenzhen Jiufeng Electromechanical Equipment Co., Ltd. is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , JF brand spray booth is getting more and more popular all over the world .

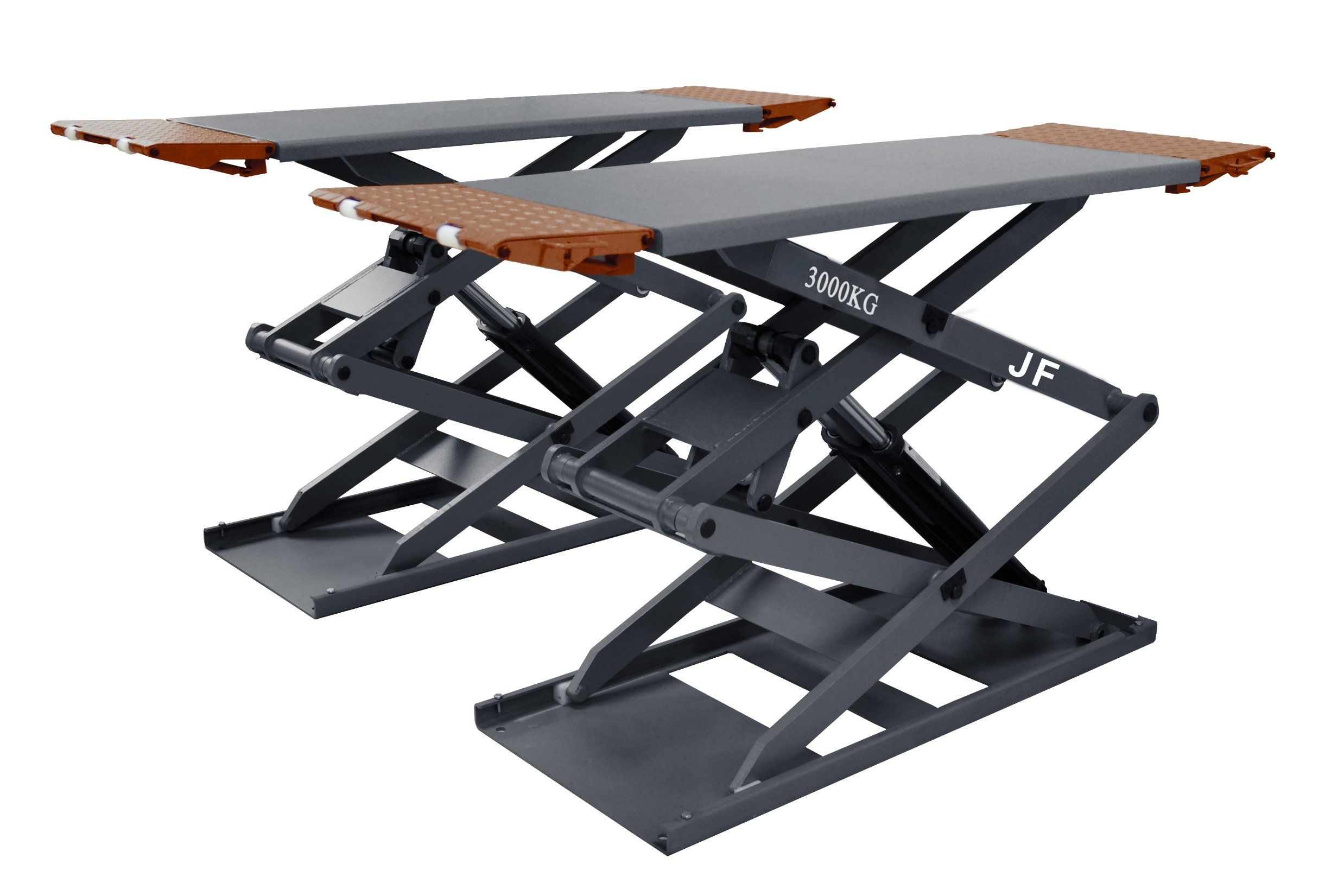

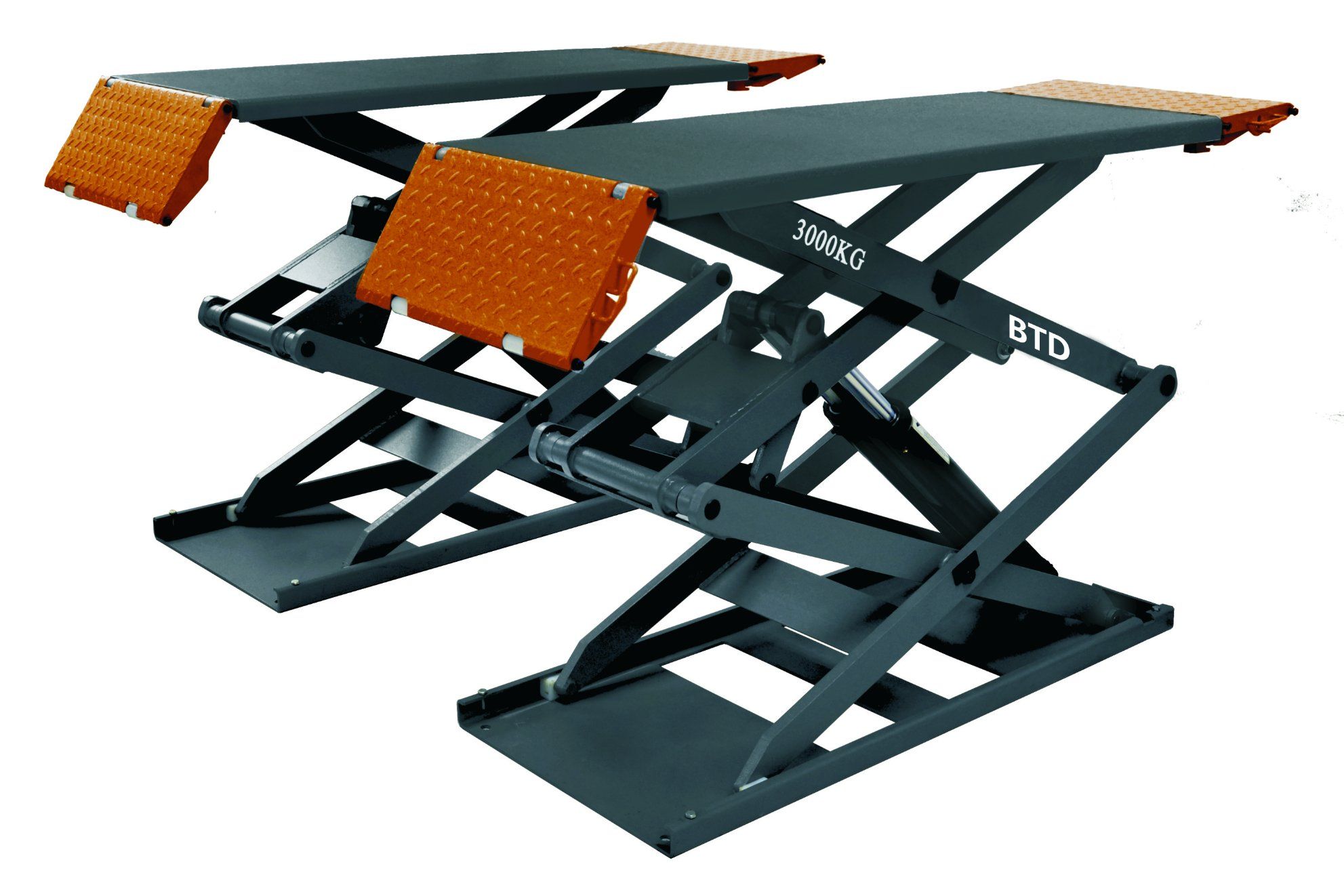

Model:JF-X30
Product Features
·Double level scissor lift,105mm above the ground at the lowest level
·Adopt Italy technology to design
·Double hydraulic balance system(main lift)and mechanical safety with automatic unlock are equipped
·24V safety control circuit
·Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity
·Japanese oil sealing elements, Italian spherical valve, overload protection, international brand oil pipe
·Components are made by laser cutting machine or other CNC equipment.
·Alloy solid steel X structure, good rust resistance and not easy to deformation
·Shot blasting and high temperature baking powder coated surface finish
·Wear-resisting bearings

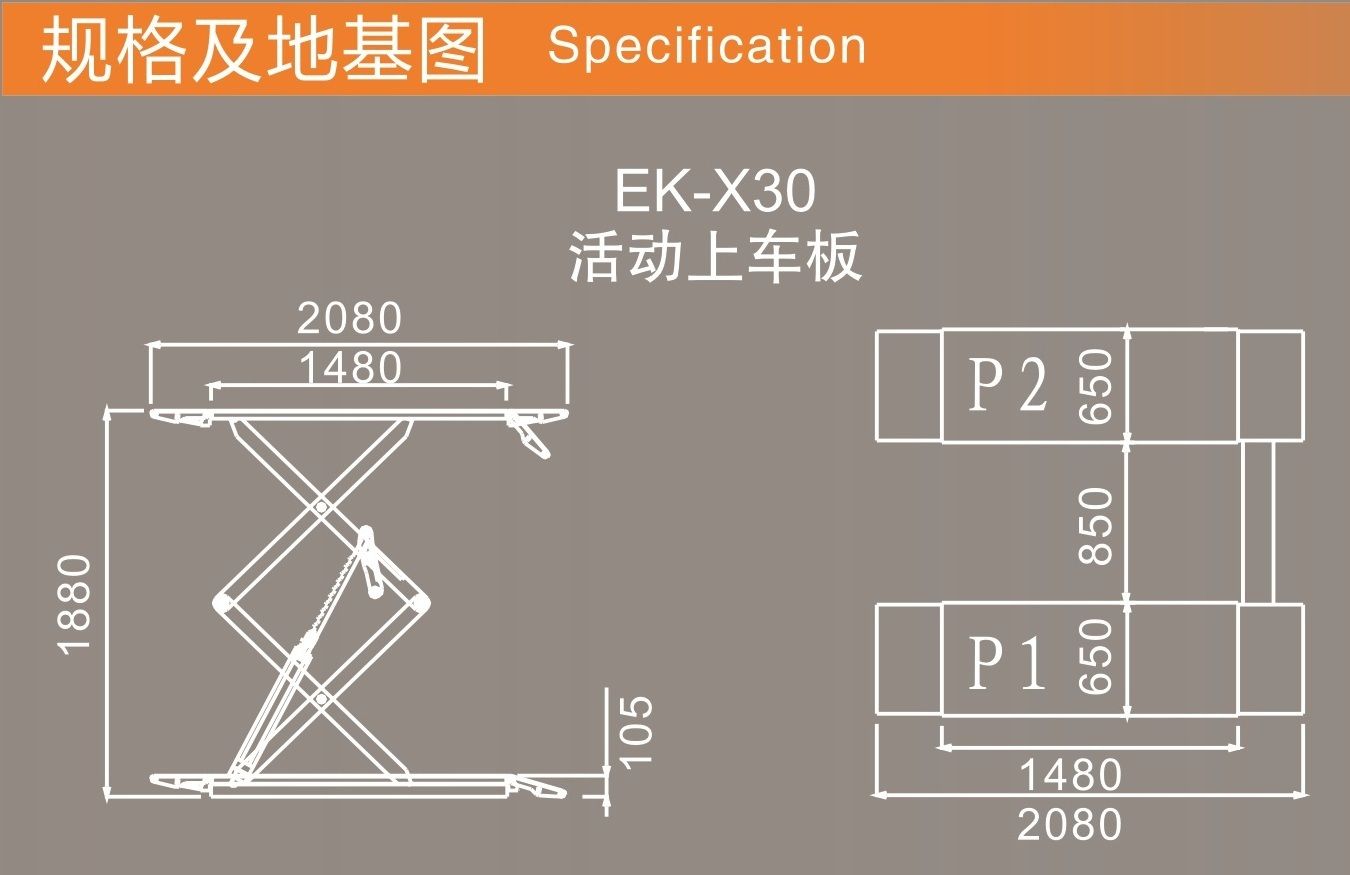

| Model | JF-X30 |
Lifting capacity | 3000kg |
| Lifting Height | 1880mm |
| Platform Length | 1480-2080mm |
| Platform width | 650mm |
| Initial Height | 105mm
|
| Motor Power | 380v/220v 3kw |
| Air Pressure | 0.4-0.6Mpa |
