| Prod Model: |
JH-TP2700A |
| Colour: |
Optional |
| Lifting Time: |
40s |
| Warranty Time: |
1 Year |
| Lift Mode: |
Chain |
| Voltage: |
220V/380V |
| The Vehicle Inlet And Outlet: |
Center |
| Type: |
Double Cylinder Hydraulic Lift |
| Certification: |
CE |
| Design: |
Two Post |
| Lifting Capacity: |
2700kgs |
| Brand: |
Junhv |
Product Description

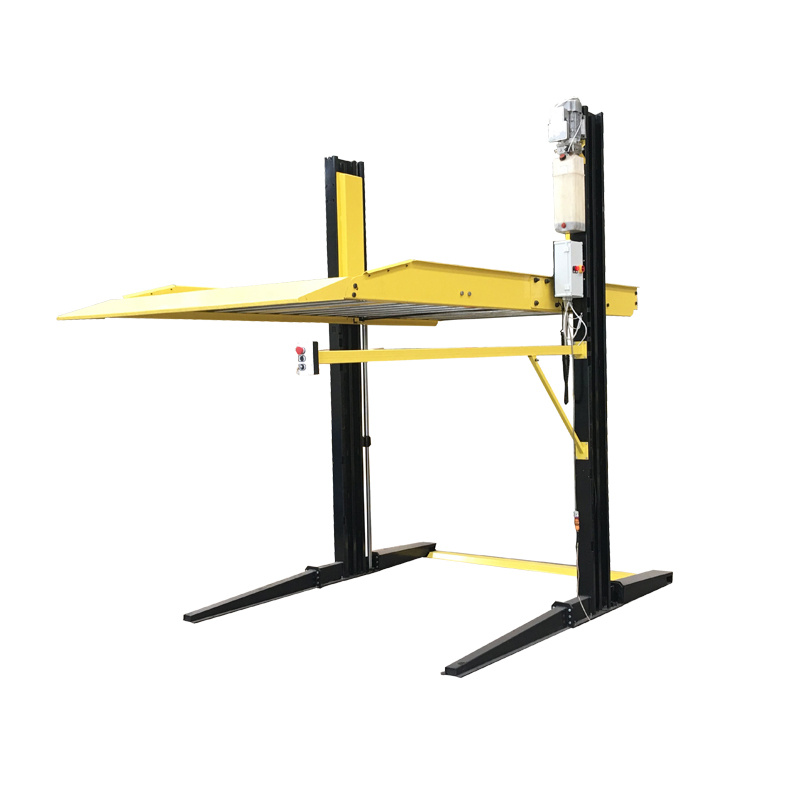

Double Deck 2700kg Hydraulic Auto Car Parking Lift for Garage Use
1.Production despriction
.Can be used in household or office building parking lot.
Cable-equalization system
Single e- lock release system ,more safe
Wear resistant and heat resisting macromolecular polyethylene slide block
Wave plate or diamond plate are optional ,
You can choose hot galvanizing,electroplating orpowder spray
Mold machining through the whole process so that the parts are universal and interchangeable
120%150%Pass 120% capacity dynamic load text and 150% static load test.
Italian oil seal to make sure no oil leakage
solenoid valve has the urgent manual lock release function.
Optional manual pump on power unit in case of power off.
24v Optional 24v control box,solenoid valve and electromagnet
Optional ultrared rays alarm device, in case of unguarded entrance
2.Product Specification
Item No. | JH-TP2700A |
Product | Two post car parking lift |
Specification | Lifting capacity | 2700kgs |
Height first level | 2100mm |
Overall height | 3530mm |
Overall width | 2574mm |
Overall length | 4000mm |
Relative humidity | 80% |
Working pressure | 18Mpa |
Working temperature | -5 °C ~ 40 °C |
Working noise : | ≤ 75dB ( A ) |
Lifting time | 50s |
Drop time | 40s |
Motor capacity | according to the local voltage |
Power | 2.2kw |
Notice | v The lift can be grouped to one set (by two units, four units,six units, according to your requirements). v Strengthened Column v every 2 post lifts share one common post |
Packaging details | One 20' container:10sets One 40'container: 21sets |
Delivery date | Within 25 days after receipt of payment |
Payment term | 30%T/T before production, 70% before shipment. |
Price | Warranty time :2 years, apart from artificial faults MOQ :1set |

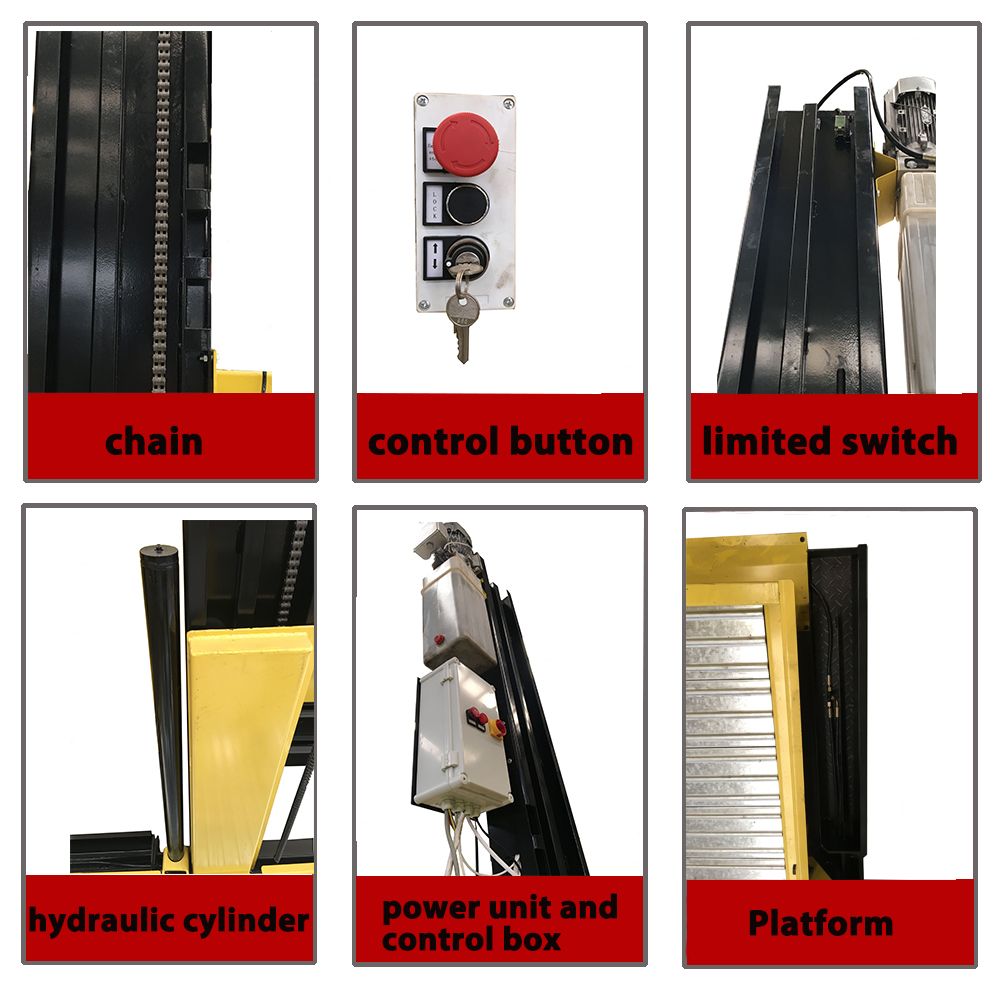

3.Detail pictures:

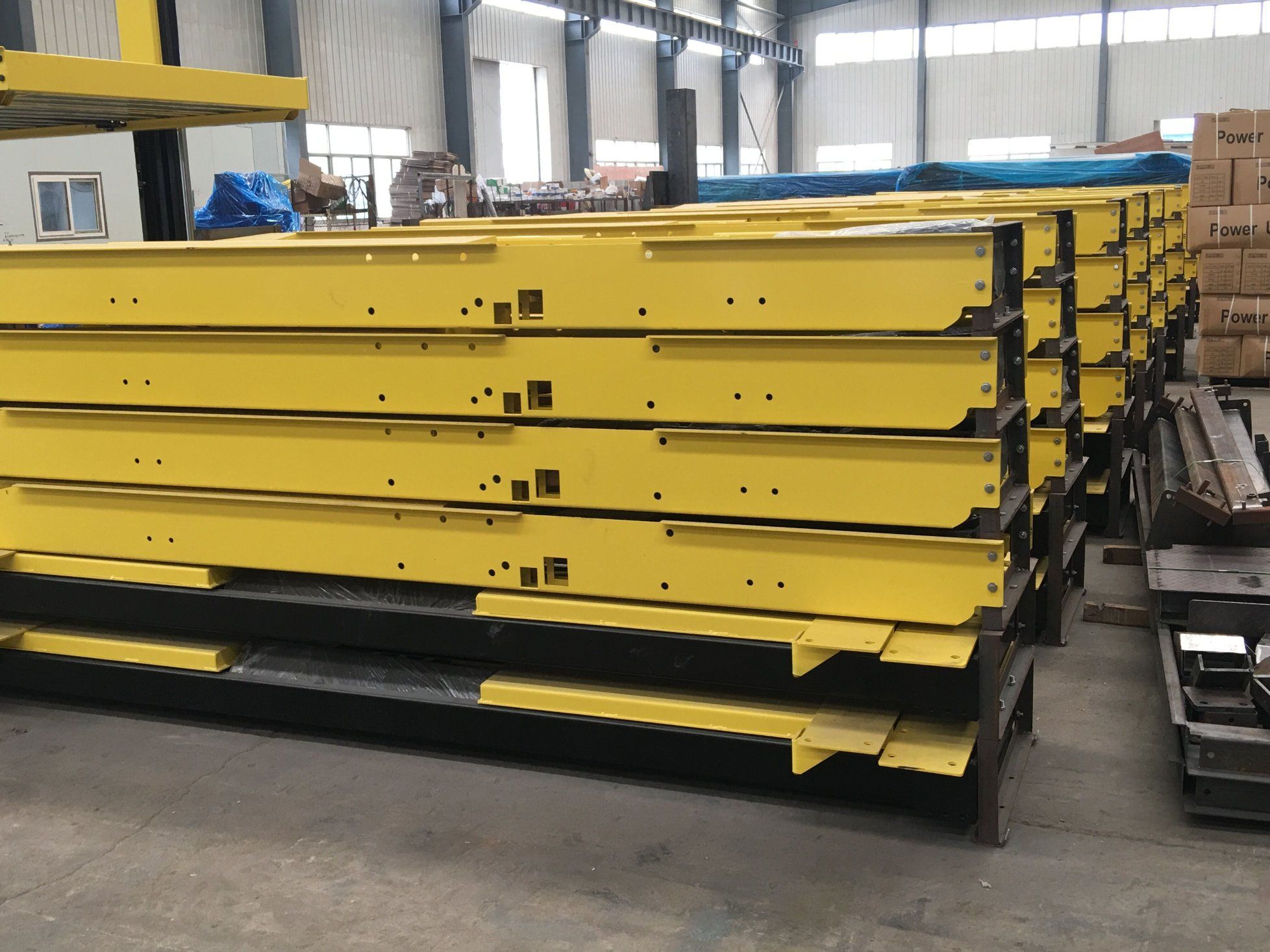

4.Packaging picture:
About our company:Qingdao Junhv Industry and Trade Limited Company located at Huangdao District Qingdao City,with an area of 10000 sq meters.It takes 1 hour to Qingdao airport,and 40 minutes to Qingdao seaport.
The company is professional at researching & developing,producing and exporting various car lift,including 2 post lift,4 post lift,scissor lift,and parking lift.also we sell tire machine and wheel balancer,and all products with CE certificate.

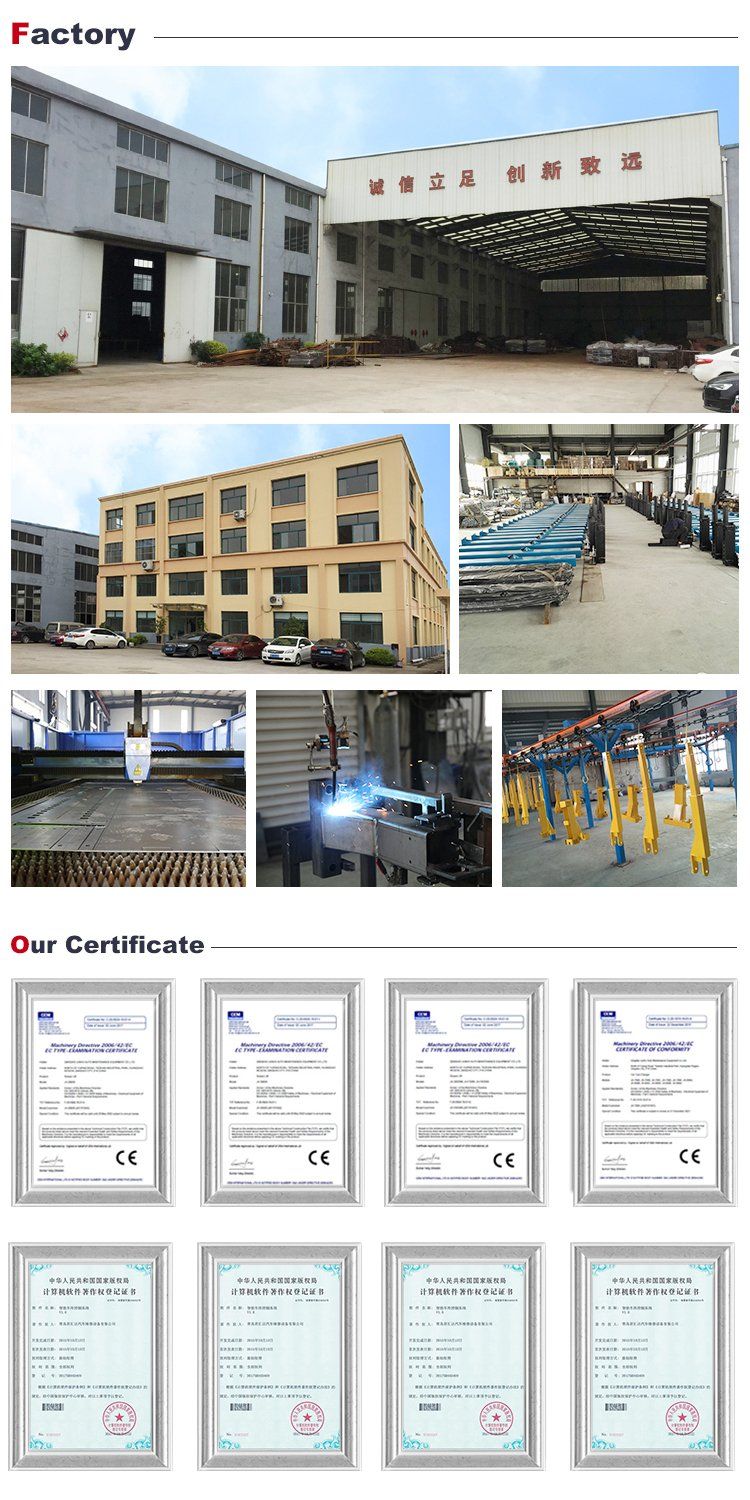

The company has most advanced production equipments,welding robot,germany laser cutting,full automatic bending machine,powder painting line,automatic drill machine.all these machine can keep the accuracy of all parts of the lifts,and and can make highest degree of adaptability during all parts.
