China Industrial Instrument level sensor and flow meter manufacture
Tianjin U-ideal Instrument Co., Ltd produces various level measuring instruments such as magnetic level gauges, glass tubular level gauges, reflex level gauge, transparent level gauge, various level transmitters and level switches.

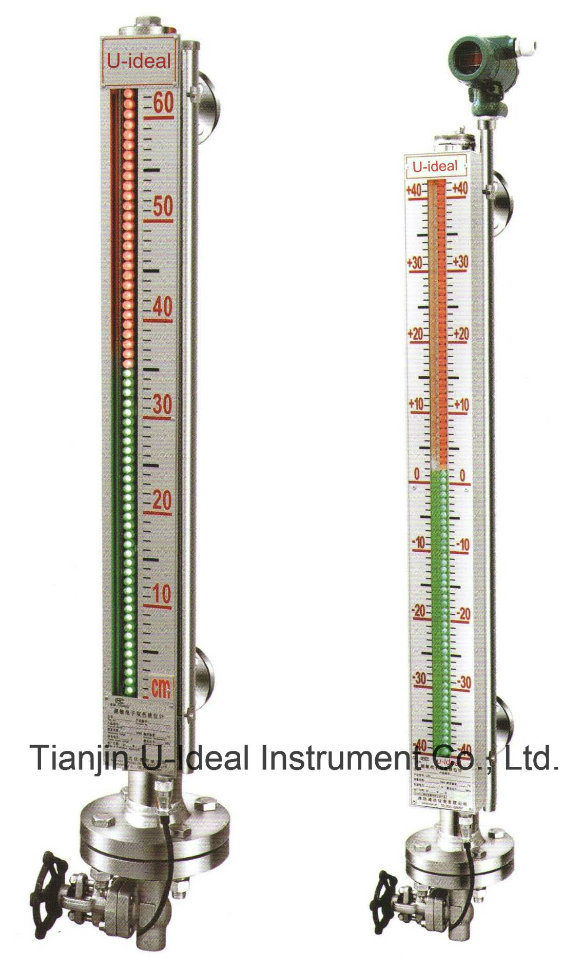

Magnetic Level Gauge' outstanding features: Bi-color local indicating, remote control, wide working range, Economic price, long service time, and little maintenance.
Magnetic level gauge divided into top mounted and side mounted type.
Level measurement methods
Components: Tube body, floater, installed flanges, indicator panel, and drain and vent valves.
Indicate color: White and Red flag.
Our Bi-color Magnetic Floater Level Indicators have produced more than 20 different type's suit for various application. Such as side mounted, buried tank top mounted, side-top mounted type, thermal type (steam insulating sheath, electric thermal insulation), anticorrosion type fuel level measurement.
Anticorrosion type: Glass fiber reinforced plastic, ABS, UPVC, TA2, PP material selectable.
Technical parameter
1, measure ranges: 20-15000mm
2, measure accuracy: ± 5mm
3, working pressure: 1.0, 1.6, 2.5, 4.0, 6.4, 10.0, 16, 0MPa
4, fluid temperature: -40~450º C
5, fluid viscosity: ≤ 14m/s
6, fluid density: ≥ 0.5g/cm3
7, body or cage material: 1Cr18Ni9Ti, 304SS, 316SS, 301SS, Carbon steel; Floater material: 304SS, 316SS, Titanium
8, flange: Side flange, tank top flange; ANSI, JIS OR DIN form.
9, Transmitter output 4~20mA signal, add level switches (HH, H, L, LL) to realize remote control
If H2SO4 98%, we will supply with PP Polypropylene material magnetic level gauge or SS 201 material level gauge/ PTFE material level gauge according to customers require.
UHZ type Side Mounted Bi-color Magnetic Level Gauges
UHZ type Top Mounted Bi-color Magnetic Level Gauges
UHZ type Steam Jacket heating Bi-color Magnetic Level Gauges
UHZ type anticorrosion type Magnetic Level Gauges
Hebei Xukang Meter Manufacturing Co., Ltd (Tianjin U-ideal Instrument Co., Ltd) is a professional supplier of level instruments, flow meters, gates valves, pressure control valves, pneumatic and electric control ball valves, check valves, globe valve, pressure reducing and sustaining valve and steam traps and strainers from year 2006, are one of the repute' S manufactures in China, We have been cooperated with many famous companies all over the world, and quantities are satisfy all of our customers. Our products have passed the CE, GS, ISO9001 approvals.
Fluid water level switch(float switch, radar level switch, ultrasonic level switch, vertical level switch, horizontal level switch, flange level switch, thread level switch), tank gauges (Magnetic level gauges, glass tubular level gauges, sight glass level indicator, transparent level meter and reflective level gauge, weld glass water meter, oil level meter, fuel level control and indicator), drop-in type level sensor(cable level sensor, pole level switch, hydrostatic pressure level sensor and level transmitter, capacitive level sensor, ultrasonic level transmitter, non-contact level meter and float level transmitter) tank flange level indicators, radar RF level meter and so on.
Flow meters: Metal rotary flow meters(float flowmeter, rotameter, gas rotameter, bypass rotameter), vortex flow meters (steam vortex flowmeter) flow sensor, flow switches and liquid and gas turbine flow meters, conductive fluid electromagnetic flow meters, PD flow meter such as oval gear wheel flow meters, roots flow meters) precession vortex gas flow meters, flow sensor and other flowmeasurement instruments.
Ultrasonic Level, Ultrasonic Level Measurement, Level Measurement, Level Sensors, Ultrasonic Level Sensors, Ultrasonic Flow Meter, Ultrasonic Level Probe, Ultrasonic Meter, Ultrasonic Distance Meter, Ultrasonic Meters, Ultrasonic Level Detection, Ultrasonic SensÖ R, Ultrasonic Sensors, Ultrasonic Level Sensor, Level Sensor Ultrasonic, Ultrasonic Measuring, Ultrasonic Testing, Sensor Ultrasonic, Ultrasonic Measurement. Water Level Sensor Switch, Water Level Sensor, Water Level Sensor Circuit, Level Sensor Water, Liquid Level Sensor, Magnetic Level Switch, Magnetic Switch, Oil Level Sensor, Magnetic Float Switch, pressure transmitter, differential pressure transmitter.
Safety valve, pressure control valve, safety relief valve, pressure relief valve, pressure transmitters, pressure gauge, temperature gauge
Welcome to contact us, we will reply you in 24hours.
