1- Betten Cardan Universal Shaft Features1. We offer over 1000 different spare parts for a wide range of agricultural machinery, from combine harvesters, mowers,rakes to balers.They are used for various makes like John Deere, LAVERDA ,Claas, New Holland and Case/IH.
2.Elastomer connecting in the middle
3.Can absorb vibration, compensates for radial, axial and angular deviation
4.Oil resistance and electrical insulation
5.Have the same characteristic of clockwise and anticlockwise rotation

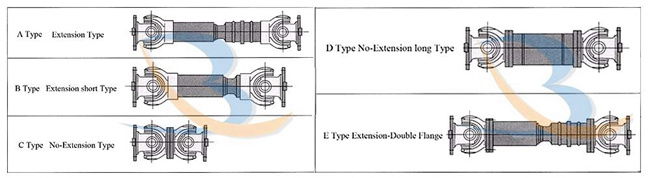

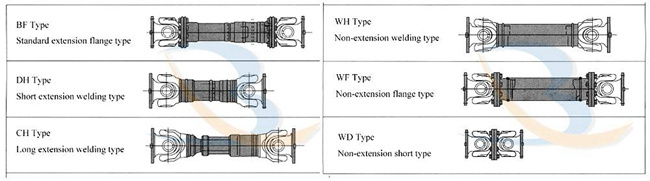

2-Type Guide for Betten Double Cardan ShaftWe can supply you SWP,SWC,WSD,WS universal coupling as following:Welded shaft type with length compensation / expansion jointShort type with length compensation / expansion jointShort type without length compensation / expansion jointLong type without length compensation / expansion jointDouble flange with length compensation / expansion jointLong type with big length compensation / big expansion jointSuper Short type with length compensation / expansion joint

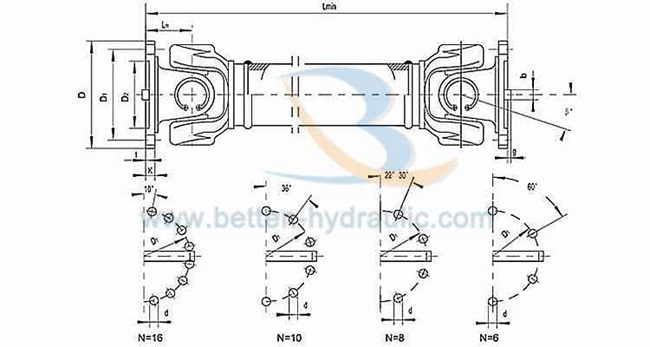

3- Technical Specification for SWC-I Universal Shaft
| Model | Norminal torque Tn
(kN.M) | Flex length LS
(mm) | Lmin | D1(js11) | D2(h7) |
| SWC58BH | 0.15 | 35 | 325 | 47 | 30 |
| SWC65BH | 0.25 | 40 | 360 | 52 | 35 |
| SWC75BH | 0.4 | 40 | 395 | 62 | 42 |
| SWC90BH | 0.75 | 45 | 435 | 74.5 | 47 |
| SWC100BH | 1.25 | 55 | 390 | 84 | 57 |
| SWC120BH | 2.5 | 80 | 485 | 102 | 75 |
| SWC150BH | 5 | 80 | 590 | 130 | 90 |
| SWC180BH | 12.5 | 100 | 810 | 155 | 105 |
| SWC200BH | 35.5 | 120 | 900 | 170 | 120 |
| SWC225BH | 40 | 140 | 920 | 196 | 135 |
| SWC250BH | 63 | 140 | 1035 | 218 | 150 |
| SWC285BH | 90 | 140 | 1190 | 245 | 170 |
| SWC315BH | 125 | 140 | 1315 | 280 | 185 |
| SWC350BH | 180 | 150 | 1410 | 310 | 210 |
| SWC390BH | 250 | 170 | 1590 | 345 | 235 |
| SWC440BH | 355 | 190 | 1875 | 390 | 255 |
| SWC490BH | 500 | 190 | 1985 | 435 | 275 |
| SWC550BH | 710 | 240 | 2300 | 492 | 320 |
4-Betten Service for cardan shaft coupling1.Design Services
Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.
2.Product Services
raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping
3.Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.
4.Research & Development
We usually research the new needs of the market and develop the new model when there is new cars in the market.
5.Quality Control
Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.
6.Certification
Should your products require testing and certification to comply with international standards, we can arrange this with independent, fully recognized testing companies such as SGS, Intertec, Bureau Veritas, Lloyd's Register or the testing company of your choice.
5- Application for Betten double cardan driveshaft
Heavy-duty machinery Metallurgical machinery
Mining machinery Agriculture machinery
Chemical machinery Petroleum machinery
Lifting transport machinery Textile machinery
Printing machinery Automotive
Tractor Marine
Pump Fan
Compressor Reducer

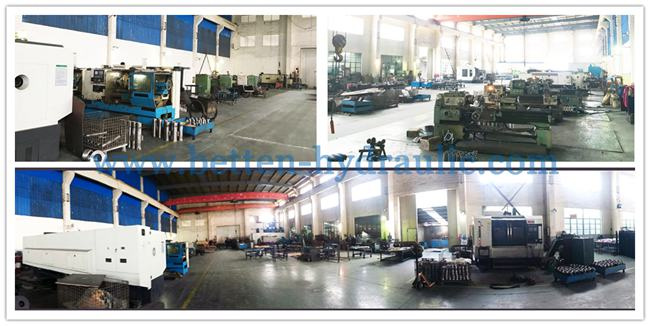

Wuxi Boli Hydraulic is known as a 20 years‘ Professional manufacturer of hydraulic cylinders, hydraulic jack, cardan shaft and spare parts in Wuxi, China around 170km from Shanghai Port. Our factory cover an area of over 5000 square meters and have around 100 stuff including a technical team with more than 20 engineers. Our workshop equipped with over 30 sets of manufacturing and testing machines including machining center, numerical control machine, argon welding machine, plasma cutter etc. Boli has gained the certification of ISO ISO9001: 2008 and Product quality supervision and inspection center of Wuxi City. Meanwhile, Boli also got customers' satisfaction for reasonable price, timely delivery and good after-sale service.
With the fast development in the past 10 years, we have gained much experience and technology in making various types of hydraulic system and cylinders with our expert team. Our products are widely used in equipment such as machine tool, metallurgical equipment, forging machine, kiln equipment, brick machine, plastic machine, car manufacturing machine, construction equipment for road and bridge, wielding machine, port facilities, test machine, fully auto line and we have gained a lot of world famous customer like XCMG, LIUGONG Machinery, Chalco, BOSCH, Haier, SAINT-GOBAIN, Shanghai Boiler, HTC etc.
