| Prod Model: |
DE12TI DE12TIS |
| Markets: |
North America,South America,Southeast Asia,Oceania,Mid East,Eastern Asia |
| Component: |
Piston |
| Diameter: |
123mm |
| No. Of Cylinder: |
6 |
| Ring Size: |
3.5k+3+4mm |
| Parts Number: |
65.02501-0601b |
| Vehicle Model: |
Excavator |
| Piston Remark: |
Moly Skirt, Oil Cooling Gallery |
Product Description

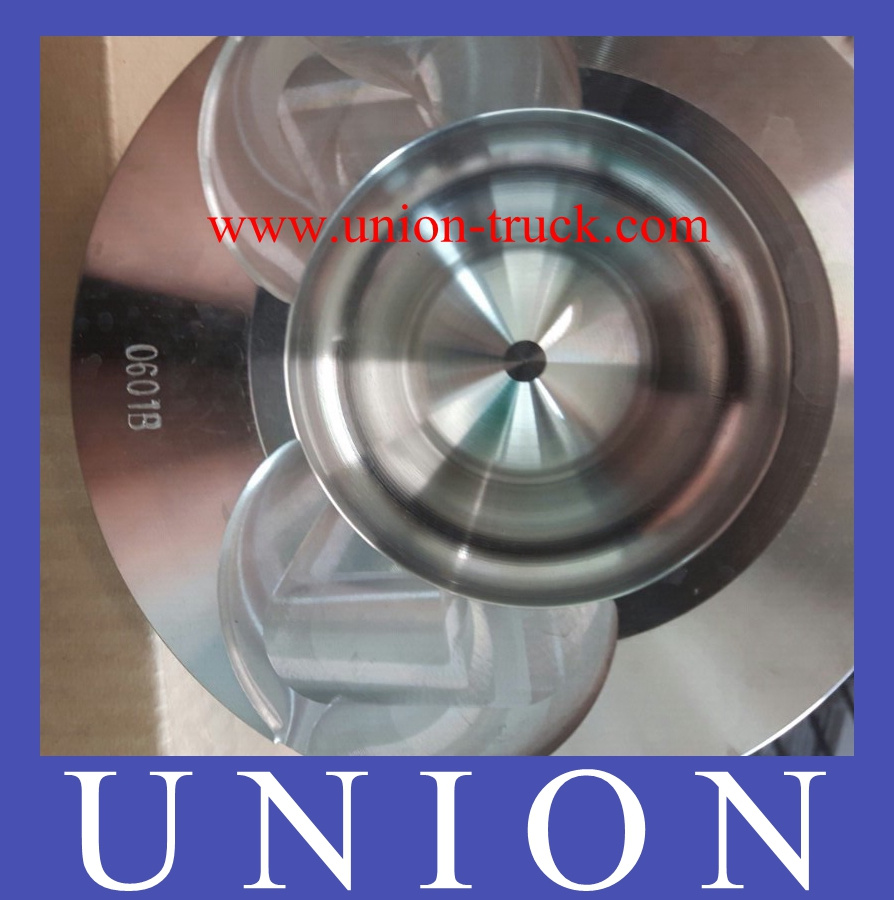

Doosan D2366 PISTON, PISTON RING, CYLINDER LINER
DIESEL SPARE PARTS D2366 PISTON RING FOR DOOSAN
AUTO SPARE PARTS DOOSAN D2366 PISTON KIT
BUS ENGINE PARTS DOOSAN D2366 LINER KIT
TRUCK ENGINE ACCESSORIES DOOSAN D2366 CYLINDER LINER KIT
D2366 HEAD GASKET FOR DOOSAN
| Model | D2366-DE12 | Package: |
| Part Number | 65.02501-0601B | 6pcs/box |
| Diameter | 123mm | with pin&clips |
| Length | 136mm | Delivery: |
| Compression Heigh | 81.5mm | In stock:1-3 days |
| Ring Size | 3.5K+3+4mm | By order:30-35 days |
| Remark | Alfin,moly skirt,oil gallery | Price: |
| Guarantee | At least one year | Base on Quantity |
For Dossan Daewoo D2366, we can supply the following overhauling parts:
Piston
Piston ring(8236/8237/8238)
Cylinder liner (sleeves)
Full gasket kit (overhaul gasket kit/complet gasket kit)
Head Gasket(0072/0073-black,0075/0076-red selicon)
Main&con rod bearing
Valves(intake+exhaust), valve seat, valve guide
Thruste washer
Water pump
Oil pump
etc.
****Our advantage: ****
1. Quality guarantee 1 year
2. Stock service available
3. Same aftersale service both in domestic and overseas market
4. Timely delivery
We could also provide
Mitsubishi, Isuzu, Hino, Nissan, Toyota, Komatsu, Mazda and KIA spare parts.
If you need more information and pictures about our factory and our products, please contact us.
| Engine models | DOOSAN parts | Diameter(mm) | No cylinders | Feature | Ring sizes | Remark |
| DOOSAN DAEWOO DB58 | Piston&Piston pin&Clips Piston ring Cylinder liner Cylinder liner kit | 102 | 4 | alfin | 3*2.5*4 | OEM quality Best quality Quick service Stock service Professional service Stock service |
| DOOSAN DAEWOO D0846 | 108 | 6 | alfin+moly skirt | 2.5*2.5*5 |
| DOOSAN DAEWOO D1146 | 11 | 6 | alfin+moly skirt | 3*3.34*4 |
| DOOSAN DAEWOO D2156 | 121 | 6 | alfin+moly skirt | 3.5*3*3*5.5 |
| DOOSAN DAEWOO D2366 | 123 | 6 | alfin+moly skirt | 3.5*3*4 |
| DOOSAN DAEWOO D2366 | 123 | 6 | alfin+moly skirt | 3.5*3*4 |
| DOOSAN DAEWOO D2366 | 123 | 6 | alfin+moly skirt | 3.5*3*4 |
| DOOSAN DAEWOO 2848T | 128 | 8 | alfin+moly skirt | 3.34*3*5.5 |
Guangzhou Union Auto Parts Co., Ltd established in 2000, invested two factories: One is piston ring factory, the other is piston factory, was one of the biggest engine parts manufacturers and suppliers in Guangzhou. And we supplied piston and ring to these truck engine assembly factories. (JAC, JMC, ISUZU, FOTON, DFAC, FAW etc) Meanwhile, we attached great importance to after-sale service and got distributors among 15 provinces in China. In 2007, the export department in Guangzhou was established with an efficient and united team. Export staff aimed at providing professional solution to engine parts repairing for customers domestic and abroad through exhibition and online service. In 2009, the second largest liner factory of China chose Union team developing oversea market. We are committed to our customers supplying high quality engine parts to meet customer's needs. We do believe that quality means the life of enterprise. And we are striving to be the best manufacturer and supplier of engine parts from a global view.
Our main products are diesel engine pistons, piston rings and cylinder liners which are mainly applied to light trucks, heavy-duty trucks, buses and construction machines engines like YUCHAI, WEICHAI, DACHAI, XICHAI, CHAOCHAI, YANGCHAI, YUNNEI, YANGDONG, XINCHANG, JIANGHUAI, DONGFENG CUMMINS etc. Adopting advanced technique and high quality management system with special laboratory, our products get international approval, such as ISO9001, TS16949 etc. And enjoy a very good reputation among customers in domestic and overseas market. In addition, we can provide OEM service according to customer's technical drawings and requirements for engine parts. (ISUZU, HINO, Nissan, MITSUBISHI, KOMATSU, YANMAR, DAEWOO, HYUNDAI, KIA, CUMMINS, CATERPILLAR etc)
OUR ADVANTAGES (Factory Background)
The first piston ring factory of China for diesel engine started in 1943 with annual production of 40 million pieces rings diameter range from 65mm to 400mm.
The largest piston factory in Asia with annual production of 6 million pieces piston diameter range from 65 mm to 400mm.
The second largest liner factory in China with annual production of 10 million pieces liner diameter range from 65mm to 250mm.
Advanced technology and scientific administration for quality guarantee, professional sales team to avoid misunderstanding and mistakes, quick production and fast delivery for target market share and protection. The best strategic partner of one-stop cylinder liner kit purchase solution for customers domestic and abroad.
