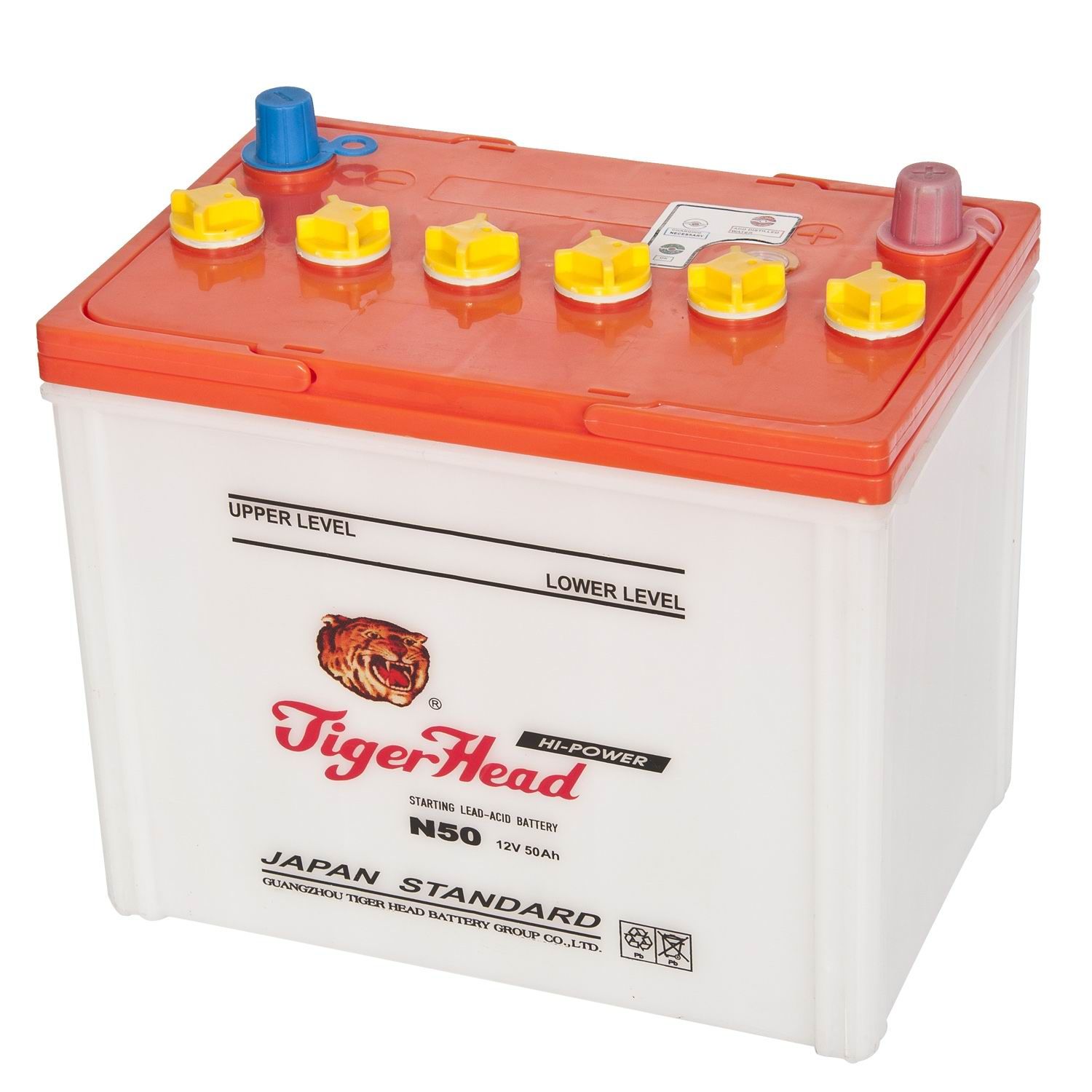

DIN Dry Charged Battery Automobile Battery Storage Truck Battery Car Battery (N5012V50ah)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
300/Piece |
| Pay Type: |
L/C,T/T,D/P |
. | car battery/auto battery/dry charged car battery/maintenance free car battery/starter mf battery/starting maintenance free auto car battery battery/lead acid car battery/automotive car battery/dry charged car battery/mf auto car battery |
| JIS BATTERY | VOLTAGE | CAPACITY | DIMMENSION | LAYOUT | TERMINAL | PLATE |
| NEW TYPE | OLD TYPE | V | C20/ah | L | W | TH |
|
| pcs |
| 36B20R | NS40R | 12 | 32 | 197 | 130 | 220 | 1 | B | 8 |
| 65D26R | N60R | 12 | 60 | 268 | 173 | 220 | 1 | A | 11 |
| 95D31R | NX120-7R | 12 | 80 | 305 | 173 | 230 | 1 | A | 15 |
| 95E41L | N100L | 12 | 100 | 405 | 173 | 233 | 0 | A/E | 17 |
| 115F51R | N120R | 12 | 120 | 506 | 183 | 230 | 3 | A/E | 21 |
| 145F51L | NS150L | 12 | 135 | 506 | 183 | 230 | 4 | A/E | 23 |
| 195G51R | N180R | 12 | 180 | 506 | 217 | 230 | 3 | A/E | 29 |
| 195H52R | N200R | 12 | 200 | 506 | 260 | 230 | 3 | A/E | 31 |
| 245H52R | N220R | 12 | 220 | 506 | 260 | 230 | 3 | A/E | 33 |
| 53628 | DIN36 | 12 | 36 | 210 | 175 | 175 | 1 | A | 8 |
| 55066 | DIN50 | 12 | 50 | 210 | 175 | 190 | 0 | A | 9 |
| 56077/91 | DIN60 | 12 | 60 | 238 | 175 | 175 | 0 | A | 11 |
| 56619/33 | DIN66 | 12 | 66 | 268 | 175 | 190 | 1 | A | 12 |
| 58821 | DIN88 | 12 | 88 | 340 | 175 | 175 | 1 | A | 16 |
| 60038 | DIN100 | 12 | 100 | 340 | 175 | 193 | 0 | A | 16 |
| 62033 | DIN120 | 12 | 120 | 506 | 181 | 220 | 3 | A/E | 21 |
| 68029/89 |
| 12 | 180 | 506 | 213 | 220 | 3 | A/E | 29 |
| 70029/16 |
| 12 | 200 | 506 | 260 | 233 | 3 | A/F | 31 |
| 72026 |
| 12 | 220 | 506 | 260 | 233 | 4 | A/F | 33 |
- Electric Car Seal Lead Acid Battery
- Super Starting power and powerful long life
- Product are with pass ISO certificate,CE quality certificate and SASO,SONCAP test certificate
- OEM service
- Warranty:12 months
- Packing:Black Housing , Black lid
- Surperior Starting Power
- Material: Lead-acid starter battery
- Minimizing waters loss
- Extended battery's life,
- Application scope: Starting batteries of auto/automobile,cars, trucks, motorcycles, ships,marine boats and other vehicles.
- Stable performance in different temperature working environment
- provide greater vibration resistance;
- Size:268*173*202*224
- Capacity:50AH
- CCA(EN):550
- R.C(mins.)99
- Lay-out:1
- Terminal:B
- High Quality PP Separator
Electric Car Seal Lead Acid Battery
Adopting high quality PP plastic for battery case, stronger and heatproof. High quality PE separator, pure acid.
Quanlity Warranty:
Electric Car Seal Lead Acid Battery
The quality guarantee is 12 months from our manufacture date or B/L date. We will replace any defective batteries by new ones.
Certification
ISO9001:2000, CE, SASO,SONCAP,etc
Manufacturing Statistics
The major present-day use of lead acid storage batteries is in vehicle starting (SLI) applications. Most vehicles use a 12-V battery with a capacity in the range of 40 to 60 Ah. This battery, weighing about 14.5 kg, has sufficient high-rate capacity to deliver the 450 to 800 A necessary to start an automobile engine. The power demand for the automobiles in the year 2014 is expected to be greater than that supplied by the present 12 V battery systems.
Key to Car Battery Price
Approximately 60% of the battery weight is lead or lead components. Batteries represent the most important use of lead in the world. The yearly consumption of lead for the manufacture of batteries was about huge in 2013, approximately half of the total world output of primary and secondary lead. The percentage of lead used in batteries is increasing as other uses disappear because of environmental and health concerns. There is a direct correlation between the number of motor vehicles registered and the number of SLI battery units sold annually.Although SLI units represent over 70% of the monetary value of the total lead battery market at present, this percentage is declining as the other applications for storage batteries continue to grow.
5 Tips To Maintenance Your Car Battery
Your car battery is the heart of your car and if it's not beating with power, your car will only sit still. So take care of your battery and it will keep your car running for a long time. There are some fairly simple tips for taking care of your car battery.
Test Your Battery
- Regularly test your battery, particularly before a long trip and after it's been recharged. You don't want the battery to fail to start your car when you are far from home.
Park Your Car in a Garage
- An insulated garage helps keep your battery warm in the winter. This means it will be easier for your battery to start your car. If you don't have an insulted garage, then insulate the battery itself with a blanket.
Keep the Battery Clean
- When you test your battery, you might also want to clean it. This means removing the clamps and cleaning off the dirt and grease from the clamps and terminals. You want a clean connection so as not to weaken the charge. Clean the battery case itself with baking soda dissolved in warm water. Dirt can conduct electricity and discharge electricity.
Check the Fluid Levels
- When you clean your battery, check the fluid level as well. If it is low, add distilled water to top it off. Keeping the fluid levels full, will help extend the life of the battery. If you don't see any fluid, you may want to replace the battery. The lack of fluid is an indicator that the battery is near the end of its life.
Secure the Battery
- Secure the battery in the mounting bracket. A loose battery can slide around and become damaged. It might also cause a short circuit in some cases.
| Prod Model: |
N5012v50ah |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item No,: |
N50 |
| Capacity: |
50ah |
| Dimension(mm): |
268*173*202*224 |
| Type: |
Lead-acid Battery |
| Rated Voltage: |
12V |
| Charging Voltage: |
2.25V~2.5V |
| Working Voltage: |
3.6V~2.75V |
| Charging Type: |
Constant Current |
| Wet Shelf Life: |
2~3Year |
| Discharging Type: |
Constant Resistance |
| Electrolyte: |
Acid Battery |
| Certification: |
CE |
