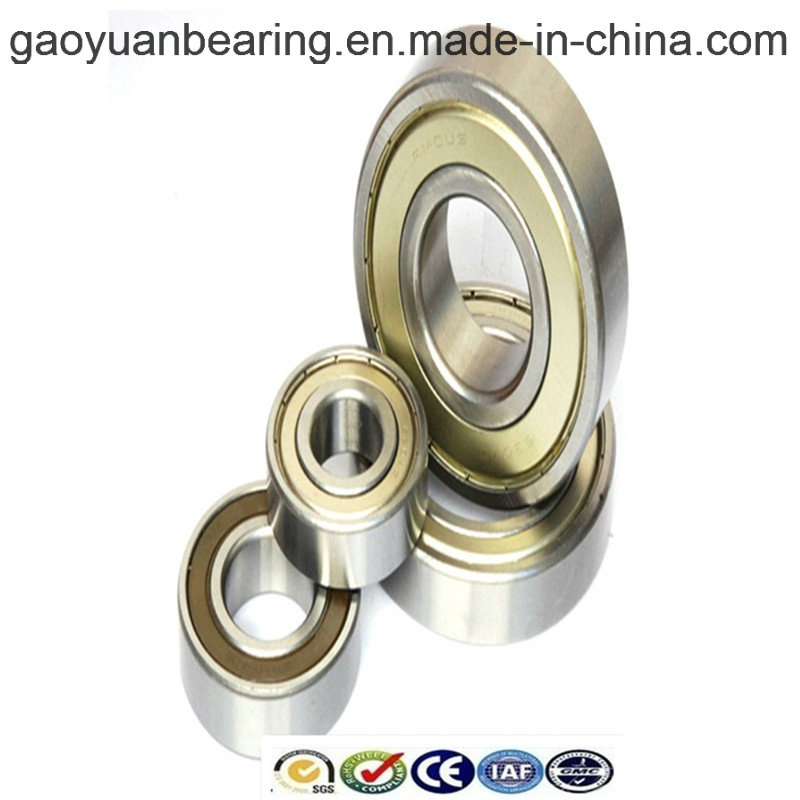

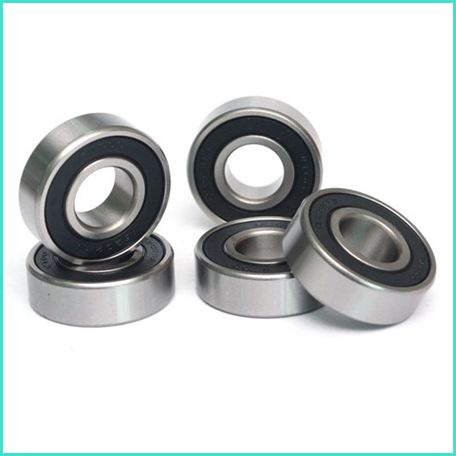

Different Kinds Ball Bearing (6206 2RS) of Shandong bearing
Gaoyuan Bearing has simple structure convenient for usage and maintenance. It's mainly for bear radial load.
The coefficient of friction of this bearing is low and its permissible speed of rotation is high.
Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner
Rings and ball and cage assemblies. These products are of simple design, durable in operation
And easy to maintain; They are available in single and double row designs and in open and sealed
Variants. Due to the production technology used, open bearings can still have turned recesses
On the outer ring for seals or shields.
The single row deep groove ball bearing are simple in design, nonseparable, suitable for high and
Ever very high speeds and are robust in operation, requiring little maintenance. Deep raceway grooves and the close conformity between the raceway grooves and the balls
Enable deep groove ball bearings to accommodate axial loads in both directions, in addition to
Radial loads, ever at high speeds.
FEATURES AND BENEFITS
1, Specializing in deep groove ball bearing for15 years, have original bearings"GY"
2, ISO9001 international quality system certification
3, Well-equipped testing equipment and strong technical force
4, High quality and competitive price
5, Wide range and better choice
TYPES OF DEEP GROOVE BALL BEARING
1, Ring material: Chrome Steel, Carbon steel, Stainless steel
2, Shield / closure: Open, Z, ZZ, RS, 2RS, 2RZ
3, Precision Grade: ABEC-1, ABEC-3, ABEC-5
4, Vibration Grade: Z1V1, Z2V2, Z3V3
5, Internal clearance codes: C1, C2, C0, C3
6, Series: 6000, 6200, 6300, 6700, 6800, 6900, R, MR, FR, S series
The type of deep groove ball bearing we have.
We can offer 6000 6200 6300 series With OPEN ZZ ZRS, P5 P6 precision rating Z1 Z2 Z3 vibration, C2 C0 C3 C4 clearance bearing. Model number 420204 420205 420206 420207 9305C3 607-2RS 608-2RS 609-2RS 627-2RS 628-2RS bearing are available!
| item | d | D | B | chamfer | LOADING(KN) | BALL | RUN SPEED | WEIGHT |
| Dynamic | Static | No. | Size | Grease | Oil | KG |
| Cr | Cor | mm | r/min | r/min |
| 6000 | 10 | 26 | 8 | 0.3 | 4.55 | 1.95 | 7 | 4.763 | 29000 | 34000 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 8 | 4.763 | 26000 | 30000 | 0.021 |
| 6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.84 | 9 | 4.763 | 22000 | 26000 | 0.035 |
| 6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 10 | 4.763 | 20000 | 24000 | 0.04 |
| 6004 | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 9 | 6.35 | 18000 | 21000 | 0.068 |
| 6005 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 10 | 6.35 | 15000 | 18000 | 0.079 |
| 6006 | 30 | 55 | 13 | 1 | 13.2 | 8.3 | 11 | 7.144 | 13000 | 15000 | 0.113 |
| 6007 | 35 | 62 | 14 | 1 | 16 | 10.3 | 11 | 7.938 | 12000 | 14000 | 0.149 |
| 6008 | 40 | 68 | 15 | 1 | 16.8 | 11.5 | 12 | 7.938 | 10000 | 12000 | 0.185 |
| 6009 | 45 | 75 | 16 | 1 | 21 | 15.1 | 12 | 8.731 | 9200 | 11000 | 0.231 |
| 6010 | 50 | 80 | 16 | 1.1 | 21.8 | 16.6 | 13 | 8.731 | 8400 | 9800 | 0.256 |
| 6200 | 10 | 30 | 9 | 0.6 | 5.1 | 2.39 | 8 | 4.763 | 25000 | 30000 | 0.032 |
| 6201 | 12 | 32 | 10 | 0.6 | 6.1 | 2.75 | 7 | 5.953 | 22000 | 26000 | 0.037 |
| 6202 | 15 | 35 | 11 | 0.6 | 7.75 | 3.6 | 8 | 5.953 | 19000 | 23000 | 0.045 |
| 6203 | 17 | 40 | 12 | 0.6 | 9.6 | 4.6 | 8 | 6.747 | 18000 | 21000 | 0.066 |
| 6204 | 20 | 47 | 14 | 1 | 12.8 | 6.65 | 8 | 7.938 | 16000 | 18000 | 0.106 |
| 6205 | 25 | 52 | 15 | 1 | 14 | 7.85 | 9 | 7.938 | 13000 | 15000 | 0.128 |
| 6206 | 30 | 62 | 16 | 1 | 19.5 | 11.3 | 9 | 9.525 | 11000 | 13000 | 0.199 |
| 6207 | 35 | 72 | 17 | 1.1 | 25.7 | 15.3 | 9 | 11.112 | 9800 | 11000 | 0.288 |
| 6208 | 40 | 80 | 18 | 1.1 | 29.1 | 17.8 | 9 | 12 | 8700 | 10000 | 0.366 |
| 6209 | 45 | 85 | 19 | 1.1 | 32.5 | 20.4 | 10 | 12 | 7800 | 9200 | 0.398 |
| 6210 | 50 | 90 | 20 | 1.1 | 35 | 23.2 | 10 | 12.7 | 7100 | 8300 | 0.454 |
| 6300 | 10 | 35 | 11 | 0.6 | 8.2 | 3.5 | 6 | 7.144 | 23000 | 27000 | 0.053 |
| 6301 | 12 | 37 | 12 | 1 | 9.7 | 4.2 | 6 | 7.938 | 20000 | 24000 | 0.06 |
| 6302 | 15 | 42 | 13 | 1 | 11.4 | 5.45 | 7 | 7.938 | 17000 | 21000 | 0.082 |
| 6303 | 17 | 47 | 14 | 1 | 13.5 | 6.55 | 7 | 8.731 | 16000 | 19000 | 0.115 |
| 6304 | 20 | 52 | 15 | 1.1 | 15.9 | 7.9 | 7 | 9.525 | 14000 | 17000 | 0.144 |
| 6305 | 25 | 62 | 17 | 1.1 | 21.2 | 10.9 | 7 | 11.5 | 12000 | 14000 | 0.232 |
| 6306 | 30 | 72 | 19 | 1.1 | 26.7 | 15 | 8 | 12 | 10000 | 12000 | 0.36 |
| 6307 | 35 | 80 | 21 | 1.5 | 33.5 | 19.1 | 8 | 13.494 | 8800 | 10000 | 0.457 |
| 6308 | 40 | 90 | 23 | 1.5 | 40.5 | 24 | 8 | 15.081 | 7800 | 9200 | 0.63 |
| 6309 | 45 | 100 | 25 | 1.5 | 53 | 32 | 8 | 17.462 | 7000 | 8200 | 0.814 |
| 6310 | 50 | 110 | 27 | 2 | 62 | 38.5 | 8 | 19.05 | 6400 | 7500 | 1.07 |

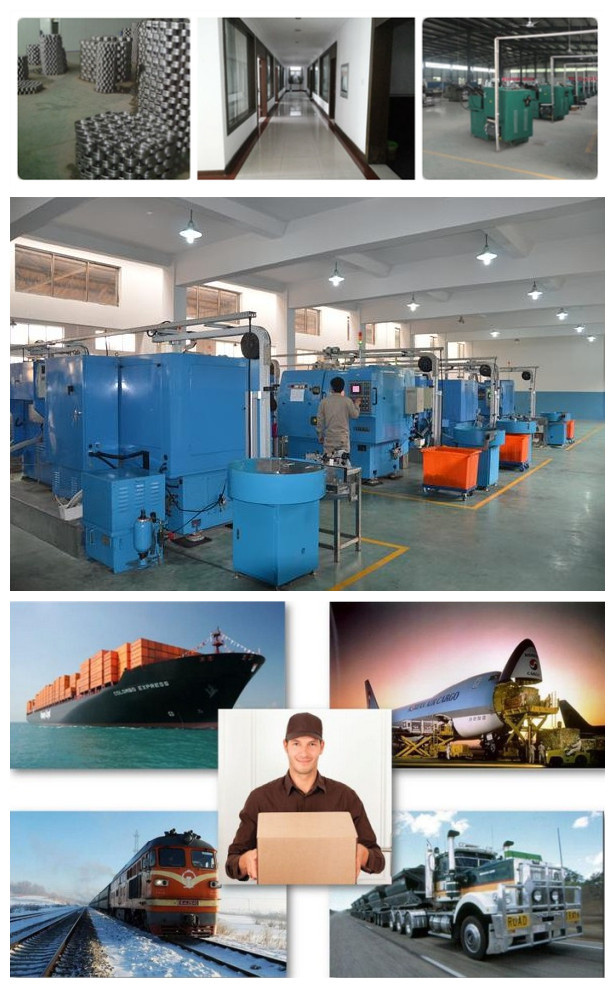

Linqing City Gaoyuan Bearing Co., Ltd. Was founded in 2006, with registered capital of Two hundred thousand US dollars. We are specialized in researching and manufacturing high common bearings. Since founded, Gaoyuan has accumulated 10 years' Bearing innovation and production. During the 10 years, Gaoyuan persist with "quality first, innovation win, service first" as purpose; "The pursuit of perfect quality, create first-class brand" as management policy, promoting the brand strategy, continuously improving product quality and brand connotation. We always do as customer requirement, insisting on creating excellent products and providing first-calss service for our customers.
We are one of the largest bearings exporters in China. Sale size diameter in 5mm-1800mm, SKF Bearing, NSK Bearing, NTN Bearing, NACHI Bearing, IKO Bearing, THK Bearing, TIMKEN bearing. TWB bearing, ZWZ bearing, HRB bearing, FYH bearing, EZO bearing, NMB bearing, GPZ bearing,
Our main product line as follows:
Deep groove ball bearings
Pillow block bearings
Taper roller bearings
Spherical roller bearings
Spherical Roller Thrust Bearing
Self-aligning ball bearings
Agricultural bearings
Thrust ball bearings
Cylindrical roller bearings
Angular contact ball bearings
Needle roller bearings
Wheel hub bearings
Conveyor bearing
Spherical plain bearing
Plummer Block
Automotive Clutch Release Bearing
