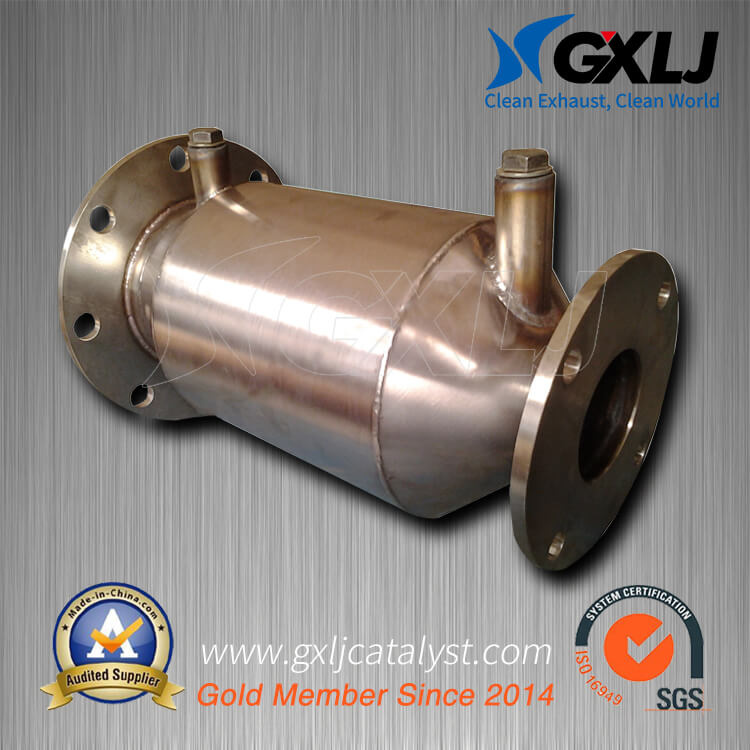

Diesel Catalytic Converter DPF
| Price: |
US $ 22-55/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
ApplicationsThis product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material. Physical Properties:| Property (uncatalyzed) | 100/17 | 200/12 |
| Cell density | cpsi | 100 | 200 |
| cpscm | 15.5 | 31.0 |
| Wall thickness | inch | 0.017 | 0.012 |
| mm | 0.432 | 0.305 |
| Open frontal area (OFA), % | 34.5 | 34.5 |
| Geometric surface area (GSA) | Inch2 | 33.3 | 47.0 |
| m2/l | 1.31 | 1.85 |
| Hydraulic diameter | Inch | 0.083 | 0.059 |
| mm | 2.11 | 1.49 |
| Modulus of rupture (psi/cpscm) | 350 | 300 |
| Porosity (%) | 48 | 48 |
Coefficient of thermal expansion
102 cm/cm/ (20-800) --maximum average | 5 | 5 |
| Mean pore size (micron) | 13 | 13 |
| Melting temperature () | 1460 | 1460 |
Specifications | Cell density (CPSI):100~400 |
Item | (mm)
Sectional Dimension | (mm2)
Area of Section |
Shape of Section | (mm)
Height |
| 1 | 144(4.66") | 16282 | |
The height can be designed by customer.
(The standard height):76.2mm(3"), 101.6mm(4"), 127mm(5"),
152.4mm(6"). |
| 2 | 150 | 17671 | |
| 3 | 165(6.5") | 21382 | |
| 4 | 170 | 22698 | |
| 5 | 175 | 24052 | |
| 6 | 190(7.5") | 28352 | |
| 7 | 210 | 34636 | |
| 8 | 228(9") | 40828 | |
| 9 | 240(9.5") | 45238 | |
| 10 | 267(10.5") | 55990 | |
| 11 | 286(11.25") | 64242 | |
| 12 | 305(12") | 73061 | |
| 13 | 330(13") | 85529 | |
REMARK: customized specification can be allowed .
Competitive Advantage: High porosity of hole on the wall of high porosity, good liquidity and uniform distribution High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strongThe pressure drop is small High filtration efficiency, able to adapt to all kinds of regeneration Low thermal expansion coefficient
| Prod Model: |
BHHTCYWB005 |
| Body Material: |
Steel |
| Discharge Standard: |
Euro V |
| Certification: |
ISO9001 |
| Component: |
Catalytic Converter |
General Description
Our cost-effective solutions to tighter emissions standards, Guangxi Huihuang Langjie environmental &Tech. Co., Ltd, specializing in the development and manufacture of exhaust emissions catalytic converter/catalyst solutions for all applications.
Since 2001, GXLJ has integrated complete product design, testing and manufacturing. Today, GXLJ is a premier supplier and manufacturer of high performance catalytic converters and substrates for diesel and gas fueled engines, with shorter lead times, greater quality control and superior service - all at greatly reduced cost.
GXLJ Catalytic Converter
Advantage
Our integrated approach and superior product quality allows us to provide highly customized solutions to manufacturers around the world. At GXLJ, we are dedicated to meeting and exceeding customer needs and requirements. Our staff is continually trained to stay current with cutting-edge developments in the field, for ongoing product improvement.
By controlling the design and manufacturing process, GXLJ is able to ensure strict quality control, by adhering to our TS16949 certification. Share your goals and business challenges with us. We will ask questions, listen, and respond to create solutions that fit like they were made for you - because they are.
GXLJ Catalyst for Exhaust emissions
Advantage
GXLJ specializes in the manufacture of high performance catalytic converters and metal/ceramic substrates. The cores offer a significant advantage, being more economical and less restrictive, while maintaining high durability.
With our cores you'll also experience additional advantages:
1. They are more cost effective in larger diameters
2. They have a quicker "light off"
3. The metallic cores experience 15%-30% less pressure drop than a ceramic of the same size and cell density
4. They provide more cost effective canning methods
5. Reduction of overall size of packaging
6. Can be produced to weld directly in exhaust system
7. They have higher thermal shock resistance
Welcome to consult us!
