Diamond Cutting Alloy Wheel Repair Machine, Rim Repair Machine

Name: Diamond Cutting Alloy Wheel Repair Machine, Rim Repair Machine
Brand: ibuyautoparts.com
SKU: 718567602
Availability: InStock
Rating: 4.7 (32 reviews)

Price:	US $ 15000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

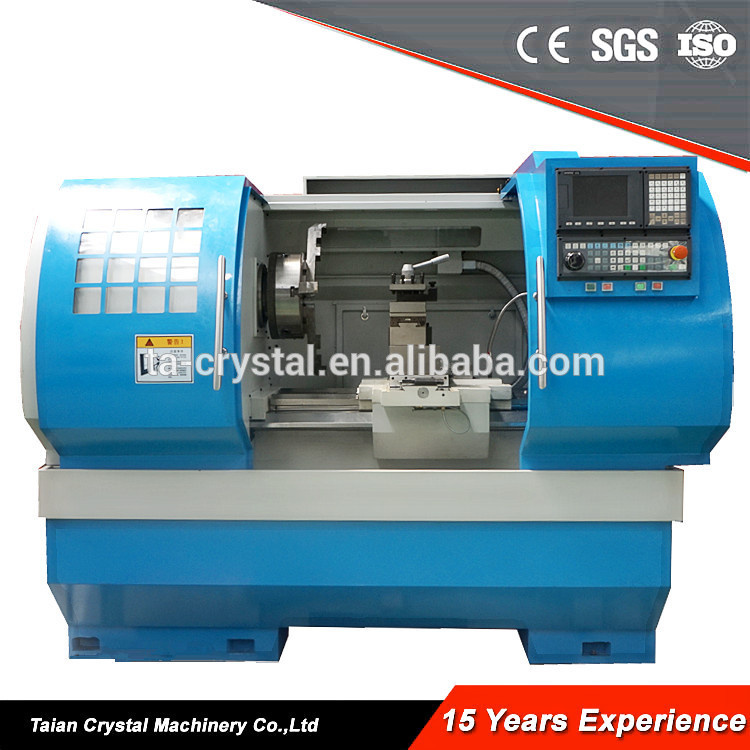

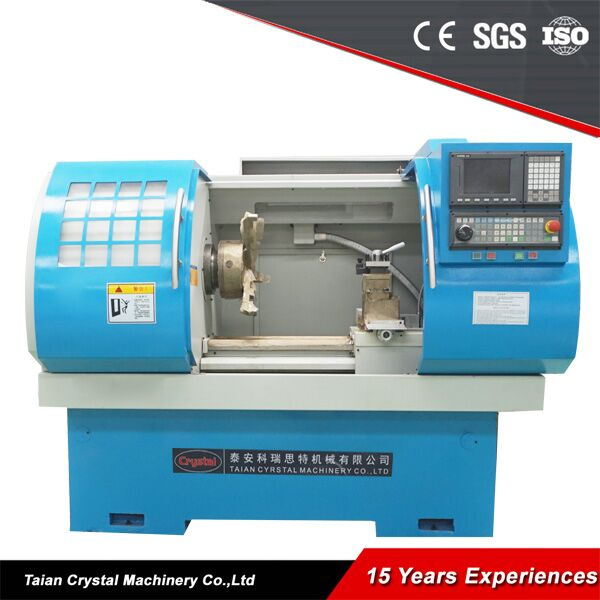

Diamond Cutting Alloy Wheel Repair Machine, Rim Repair Machine AWR2840

Alloy wheel repair machine AWR2840 specification

Ø Supply repairing Alloy wheel up to Max 28'

Ø Automated Self-plotting Digitization by Probe System

Ø Easy Operate

Ø CE Certification

Ø Free Training video

Ø Self-developed Curve Optimize software, Easy to Operate

Ø 7x24 Hours Email or Telephone Technology Support

Alloy wheel repair machine configuration:

Ø SYNTEC CNC control system

Ø High Precision Ruby Touch Probe system

Ø 3-Jaws Chuck(With Special Soft Jaws)

Ø Diamond Cutter 1 set

Ø Automatic Electronic Pump Lubrication

Ø Manual Quick Change Toolpost, Four-station

Ø Full Enclose(Security Guard Door)

Ø Specific Digital Optimization Software

Ø Training Video CD

Ø Other Accessories

Alloy wheel repair machine technical data:

ITEMS	WRM28H-PC
Max. swig over bed (mm)(inch)	Φ720
Max. Diameter of alloy wheel(mm) (inch)	Φ540
Max. Stroke of the X-axis(mm)	350
Max. Stroke of the Z-axis (mm)	880
Width of the rail (mm)	330
Length of the rail (mm)	1320
Size of the three-jaw chuck (inch)	12'
Range of spindle speed (RPM)	50~2000
Spindle speed control	Automatic
Spindle bore (mm)	Φ60
Taper of spindle bore	MT6
Taper of spindle nose	A2-10
Adjustable stroke of carrier in X direction	100mm
Max. size of tool post	25×25mm
Stations of tool carrier	4 position
Min. setting unit of motor	(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post	(Z) long 8m/min, (X) cross 6m/min
Motor power	7.5KW
Machine size	2300/17500/19500
Net Weight	3100Kg

Prod Model:	AWR2840
Color:	Blue, White, Gray
Function:	Alloy Wheels Repair
Type:	Flatbed-type
Certification:	ISO
Condition:	New
