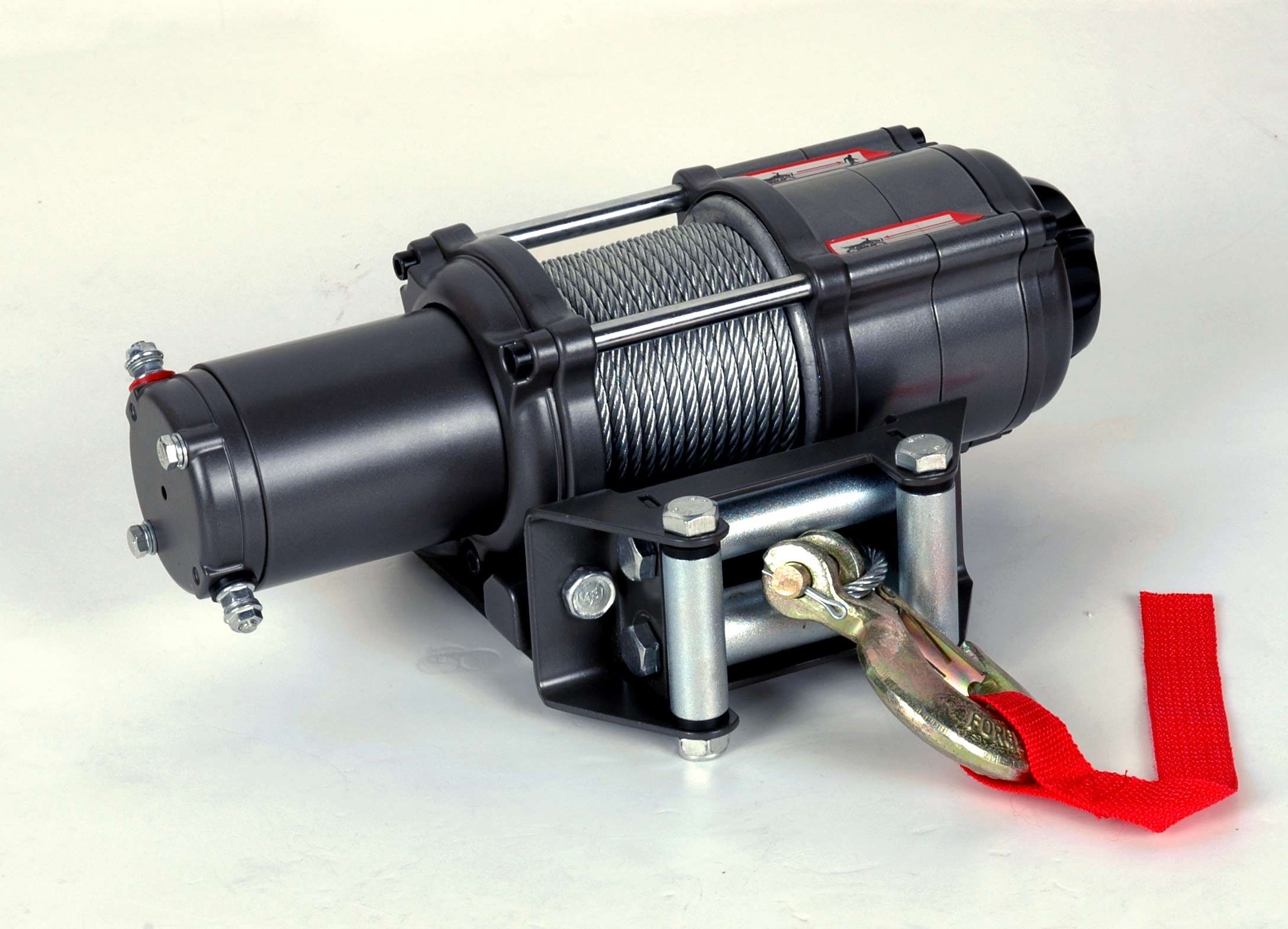

DC 12V ATV Electric Winch with 5000lb Pulling Capacity
| Price: |
US $ 125.0-126.0/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P |
- Specifications:
- All metal drivetrain
- Sealed drivetrain and motor, 12 sealed areas protect the winch from water and contaminant infiltration
- Rated line pull: 5,000lbs (2,268kg) single-line
- Motor: 12V DC, 1.95hp (1.45kW) permanent magnet
- Control: mini-rock switch and remote control, 10ft.(3.0m) lead
- Geartrain: all-metal high-strength 3-stage planetary, sealed
- Gear ratio: 136:1
- Clutch (freespooling): cam activated
- Brake: automatic mechanical brake is available
- Drum diameter/length: 2.0"/2.9" (51mm/75mm), high-strength
- Wire rope: 40', 6.0mm diameter (12.25m, 6.0mm diam.)
- Fairlead: roller 4-way
- Recommended battery: 500 CCA minimum for winch
- Battery leads: four color wire
- Duty cycle: intermittent
- Mounting bolt pattern: 76 x 124mm
- Finish: black or grey
- Features:
- Total steel shell. All metal, high precision, high strength of the 3 planetary gear group
- As many as 12 seals to prevent water or sludge into the motor and gear box
- Long-life sealed control switch
- Full sealed large current contactor
- Install four power wire convenient
- Hot dip galvanized steel for air level
- Include components: mounting plate, roller fairlead, G70 hook, contactor, handle switch, cabled remote switch, wire sets, hardware, Handsaver strap, Sheath of Rubber, ribbon, instruction, environmental protection lining packing, colour box & more
- Optional components: wireless remote control, 4T snatch, safe rubber line stopper, winch cover , ATV mounting
- Small volume, light weight, strong tension etc. Suitable for small SUV, beach all-terrain vehicle of JIMNY and light vehicle outdoor operation
| Prod Model: |
MRT5.0 |
| Markets: |
North America,Oceania,Eastern Asia,Western Europe |
| Type: |
Electric Winch |
| Power Type: |
Permanent-magnet DC |
| Pull Direction: |
Forward |
| Electric Winch Model: |
ATV |
| Working Voltage Of Electric Winch: |
Low Voltage |
| Applicable Environment: |
Mountain Road |
| Certification: |
CE |
Company Profile:
The company designs, manufactures and markets a full line of ATV winch and accessories that enhance the performance of Winches. The company's mainly markets electric winches and hoists to commercial, inudustrial and severe duty customers. We also has A Line of utility winches and hoists that are designed for professional trade workers and do-it-yourself consumers who need powerful tools to assist them in pulling, hauling, dragging or lifting. We focuses on three specific markets - Consumer Aftermarket, Industrial/Commercial, and Original Equipment. With more customers in oversea, We are the one of the china's most recognized brands in winch market.
Manufacturing, Research & Development:
We operates over 3000sq. Manufacturing facilities in 2006 China. We holds quality certifications for ISO/TS 16949: 2009, and continues a new product innovation.
Products:
We manufactures 50+ products for Automotive, Industrial users. From self ATV winches and industrial hoists systems to customers thatdu have chosen our products for their durability, reliability and dependability.
Sales & Service:
Our products are distributed primarily through distributors and OEM's. Our products export for to U. S. A., Canada, Germany, British, France, Australia, and other countries. It comprising of elite retail outlets that provide consumers with the highest level of product and service
