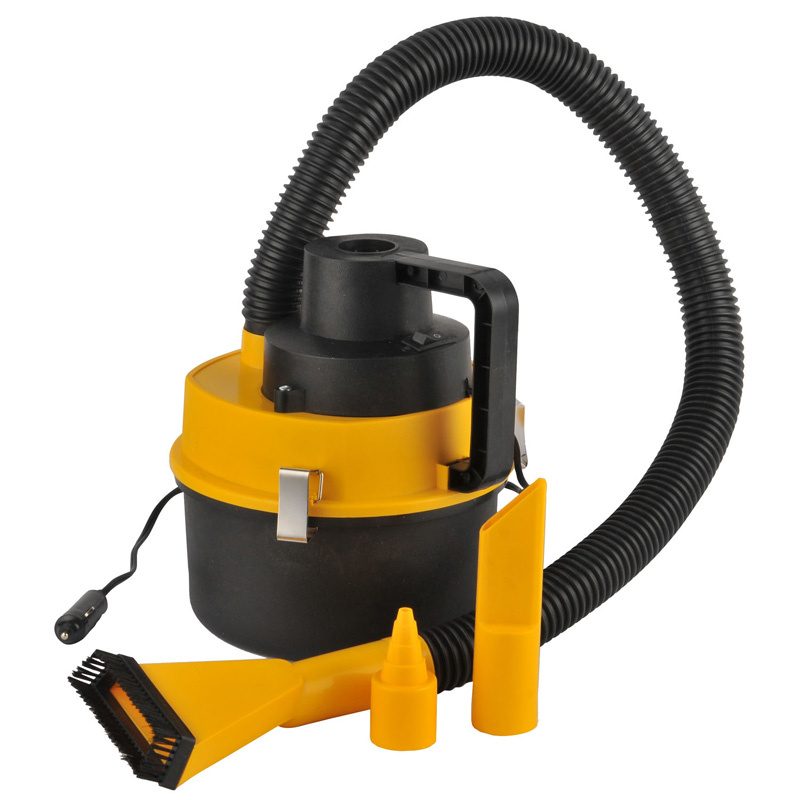

Vacuum Cleaner Wet Dry(WIN-602)
Specification:
Specification | 1Input Voltage | DC 12V |
| 2Output Current | 7-8A |
| 3Output Power | 80-90W |
| 4Power Source | DC cigar-lighter with fuse |
| 5Rotational Speed(Brushless motor,all copper) | 34000rpm |
| 6Vacuum | 2.2-2.4 KPA |
| 7Switch | ON/OFF |
| 8Wire Cord | 260CM |
| 9Product Weight | 815+/-5g, top part with motor(ABS)+ bottom black bucket(PP) |
| 10Vacuum hose weight | 75g 100CM PVC |
| 11Nozzle attachment | 10G+/-1.5g ABS |
| 12crevice attachment | 24g+/-1.2g ABS |
| 13Brush attachment | 54g+/-2g ABS |
| 14Brush | 14g+/-0.6g PP |
Product Size&Packing | 1Product Size | 24 × 23 × 24 (CM) |
2Packing | color box |
3Quantity per Carton | 12PCS |
4Packing Size | 67x45x52cm |
| 5N.W/G.W. | 15 / 17KGS |
Manual Instruction:
Assembly and Operation |
|
|
|
1. Check that the permanent filter completely covers the motor opening.Important! |
Never operate the appliance without the filter. |
2. Place the appliance upper section on the dust collector |
3. Fasten the 3 fastening clips by hooking onto the dust collector at bottom and pushing up. |
4. Insert the end of the suction hose in the suction opening. |
5. Connect supplied accessories to vacuum cleaner according to intended application. |
Fasten the required nozzle to the other end of the suction hose. The floor nozzle is very suitable for vacuuming dirt |
on vehicle floor and seats and in the boot. Attach the brush to the floor nozzle to removed driedon dirt and fluff |
(hook on at top, press down and clip into place). The slot nozzle is particularly suitable for areas that |
are not easily accessible such as corners, edges and narrow gaps. |
6. Insert the plug into the cigarette lighter socket of your vehicle or boat. Please make sure that the supply voltage is 12 V . |
7. Switch on the vacuum cleaner with the ON/OFF switch and press the switch in direction ON. Make sure the vacuum |
cleaner's air outlet does not get blocked while using the appliance. |
8. After use, switch the appliance off again using the ON/OFF switch. Then remove the plug from the cigarette lighter socket. |
Never remove the plug by pulling the cable. Store any accessories not being used in a safe place. |
Emptying the Dust Collector |
|
|
|
1. Switch the vacuum cleaner off and remove the plug from the cigarette lighter socket. |
2. Undo the 3 fastening clips by pushing sideways and down. Lift the uppersection of the appliance off the |
dust collector and empty it. |
3. Remove the permanent filter and clean it by brushing and knocking. Place it back in the motor opening |
so that it is seated flush. If the filter is very dirty,it can be washed clean in tepid soap suds. |
Make sure that it has dried completely before putting back into the appliance. |
Re-Assembly |
|
|
|
1. Before reassembling, make sure that the filter is back in position. |
Operating the vacuum cleaner without filter could result in irreparable damage to the appliance. |
2. Put the upper section of the appliance back on the dust collector. |
3. Fasten the 3 fastening clips by hooking onto the dust collector at bottom |
Cleaning the Car Vacuum Cleaner |
|
|
|
Use a dry or slightly moist cloth to clean the appliance. The ventilation slots can easily be cleaned with a brush. |
Do not use chemicals or solvents such as petrol to clean the machine. |
Never immerse the machine in water. |
More professional service
1.Allowed OEM project
2.Allowed printing your logos or brand
3.Any color can be selected freely for you
4.Any design can be made from you with us
Special instructions:If you are experiencing inflation will be stopped, this because your car's cigarette lighter power is insufficient, please directly from the battery connector electrical and air compressor can.
Notes:1)· the products cannot be used in large trucks;
2)when you use it you should start car's motor
3) If the rapidly increasing pressure for a short time (three seconds up to 689KPa), said the air pressure is blocked, the air does not enter the tire, turn off the power, remove the gas nozzle, do it again.
4) every 15 minutes, it is best to take a break;· only available for 12V cigarette lighter power supply input.
