Dashpot, Dampers Dampers, Absorber Znq-A3

Name: Dashpot, Dampers Dampers, Absorber Znq-A3
Brand: ibuyautoparts.com
SKU: 817182395
Availability: InStock
Rating: 4.8 (38 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

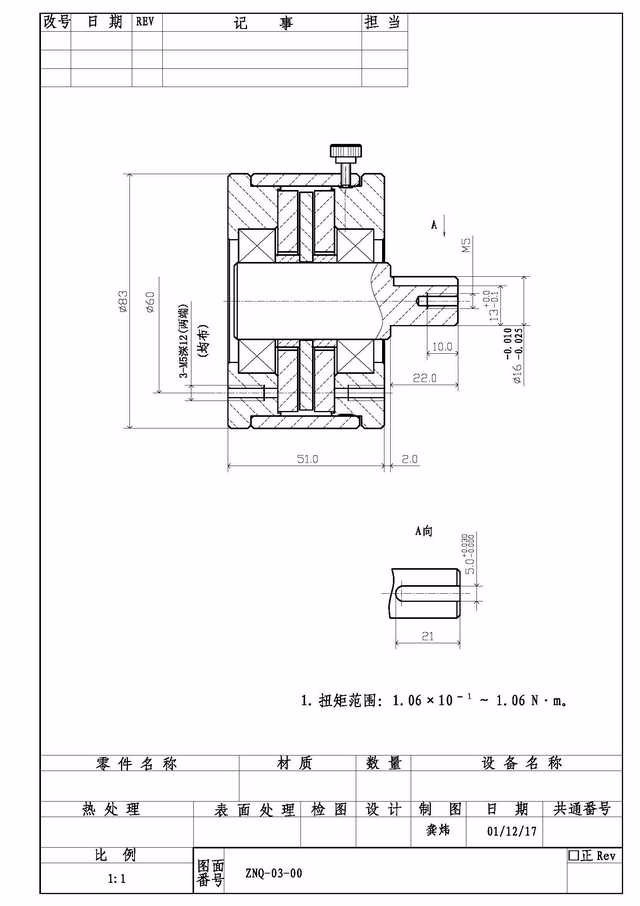

Prod Model:	ZNQ-A3
Torque Range(N•m):	1.06X10-1~1.06n.M
Type:	Permanent Magnet

Product Description

One, the magnetic damping characteristics

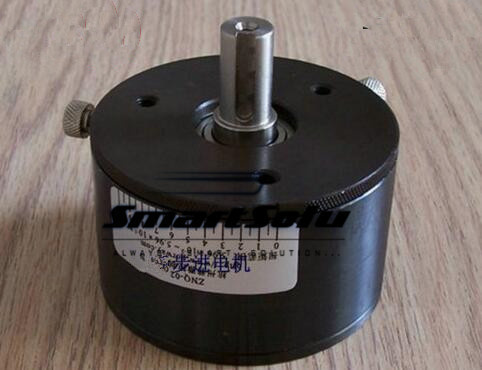

1 . Magnetic damper , also known as tension controller , tension , or brakes, transmission medium is a magnetic field is constant torque device . Damping plate is not in contact with the magnet , no sliding friction, so long life , tension control extremely stable .

2. mounting structure is simple , easy to adjust the output torque .

3. compact design , small size, can be stable in a variety of locations.

Two . Magnetic damper adjustment methods and precautions

1 . Recommends that customers use the scale value is adjusted to 4 above , if the tension is too large at this time , the best selection of smaller size specifications damper.

2. If the use of the scale value below 4 , there may be pulsating force . Press the 3 key ways to eliminate the pulsation .

3. Loosen the fastening screws will scale to 10 , while slowly rotating the spindle will scale to 0 , then go to the desired scale value . Tighten the lock screw .

4. If the tension pulsating phenomenon during use , repeat step 3 until the adjustment method satisfactory tension.

5. dampers use magnets to generate magnetic medium , large brittle material , so do not use open , so as not to damage the parts .
