PRODUCT DETAILS:

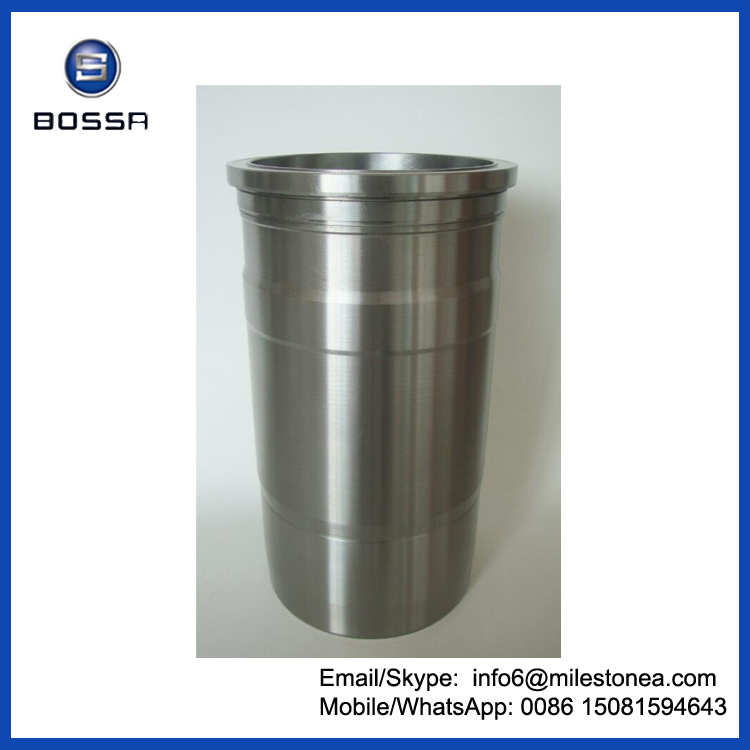

1) Cylinder linder/ sleeve is a cylindrial part, set within the cylinder block hole, and it forms combustor chamber with cylinder head & piston;
2) Cylinder liner/ sleeve is divided into two types: dry cylinder liner and wet cylinder liner;
Dry cylinder liner contact cooling water jacket on the back, but the back of the wet cylinder liner touch with cooling water;
3) Dry cylinder liner thickness thin, simple structure, convenient processing;
Wet cylinder liner contact cooling water directly, so for engine cooling, and for small, lightweight engine;
4) Material: alloy casting iron with phosphorus, boron & copper, steel;
5) Characteristics: good friction resistance, corrosion resistance, heat resistance, sufficient strength and rigidity, etc.
Chemical Ingredients Of Cylinder Liner(%) |
No. | Name of Material | C | S | Si | P | Mn | Cr | B | Cu | Ni | V+Ti | Mo | Mechanical Properties |
1 | Boron Cast Iron | 2.8~3.6 | <=0.12 | 2.0~2.7 | <=0.5 | 0.7~1.2 | 0.3~0.5 | 0.04~0.08 | | | | | Brinell Hardness>210HB, σb>=200Mpa |
2 | Boron Copper Gray Cast Iron | 2.8~3.6 | <0.2 | 2.0~2.7 | <=0.5 | 0.7~1.2 | 0.2~0.5 | 0.04~0.08 | Right amount | | | | Brinell Hardness>210HB, σb>=240Mpa |
3 | Vanadium, Titanium Gray Cast Iron | 3.0~3.6 | <0.2 | 2.0~2.7 | <=0.5 | 0.6~1.2 | 0.2~0.5 | | | | >=0.3 | | Brinell Hardness>210HB, σb>200Mpa |
4 | Molybdenum Nickel Copper Gray Cast Iron | 2.8~3.6 | <0.2 | 1.8~2.4 | <=0.3 | 0.5~1.0 | 0.2~0.5 | | 0.3~0.6 | Right amount | | Right amount | Brinell Hardness>210HB, σb>235Mpa |
5 | Bainite Gray Cast Iron | 2.7~3.3 | <0.10 | 1.7~2.5 | <=0.3 | 0.3~0.7 | 0.~0.5 | | Right amount | Right amount | | Right amount | Brinell Hardness270~330HB, σb>350Mpa |
6 | Nickel Copper Gray Cast Iron | 2.8~3.7 | <0.12 | 1.8~2.7 | <=0.3 | 0.5~1.2 | 0.15~0.5 | | Right amount | Right amount | | | Brinell Hardness>200HB, σb>196Mpa |
6) The function of cylinder liner/ sleeve
a) It froms cylinder working space together with the cylinder head & piston;
b) Gas seal: prevent the compressed gas, combustion gas pressure leak outward;
c) The trunk piston diesel engine cylinder liner piston under the lateral thrust, become a piston reciprocating movement of the lead;
d) Heat transfer: passes the piston component and its heat to the cooling water, and makes the appropriate operating temperature;
e) The formation of sliding surface: as the lining of the engine, the format sliding surface with piston and piston ring;
f) Two-stroke diesel engine cylinder liner is decorated with port, opening & closing by the piston, so as to realize distribution.
7) Surface treatment: chromed, phospated, polished, aluminum inclusive;
Principal Surface Treatment Processes |
DCP | Phosphating and chromium plating on jacket only |
DC | Water jacket only is chromium plated |
DPF | Water jacket only is phosphated |
BCP | Phosphating and inner diameter is chromium |
FF | Inner diameter is Full-Finished for dry type liner |
SF | Inner diameter is Semi-Finished for dry type liner |
IN WHITE | Without any special surface treatment |
DCU | Outer diameter is cooper plated for dry type liner |
PF | Phosphated all over |
| Air compression liner |
| Chromed liner |
| Liner |
8) Machining process
Cylinder barrels: blanking---rough turning---heat treatment (conditioning) ---turing(flat head chamfering)---coarse push inner hole---rolling inner hole---turing(external circular open nest)---turing inside hole---welding cylinder bottom---turing(cylindrical) according to the need to make internal zinc plated or chrome plated.
STRONG CAPABILITY
1) Production: more than 200000pcs/month;
2) Certification: ISO16949, ISO9001, Ts16949, ISO14001, etc.;
3) We have ANGOLA branch;
4) Brand: XYTOSAN, OSVAT, GPM, PAGZD, GEO, KOSFA, etc.;
5) MOQ: 1pc if have stocks & 100pcs for producing.
Engine Cylinder Liner/ Sleeve
ISUZU/ |
C221 | 4 | XY01014-0199 | 9-11261-253-1 | 83.0 | 174.0 |
C190 | 4 | XY01014-0200 | 9-11261224-1 | 86.0 | 163.0 |
C240 | 4 | XY01014-0201 | | 86.0 | 178.0 |
C223 | 4 | XY01014-0202 | 5-11261-015-2 | 88.0 | 163.0 |
4JB1 | 4 | XY01014-0203 | 8-94247-861-2 | 93.0 | 181.0 |
4JA1 | 4 | XY01014-0204 | 8-94462-130-0 | 93.0 | 156.0 |
4JG1/4JG2 | 4 | XY01014-0205 | 8-94456-791-0 | 95.5 | 178.5 |
4BA1 | 4 | XY01014-0206 | 9-11261-802-2 | 98.0 | 180.5 |
D500 | 6 | XY01014-0207 | 9-11261-257-0 | 98.0 | 206.5 |
DA120/DA220 | 6 | XY01014-0208 | 9-11261-287-1 | 100.0 | 220.0 |
4BC1/4BC2 | 4 | XY01014-0209 | 5-11261-014-2 | 102.0 | 187.0 |
6BB1/6BD1 | 6 | XY01014-0210 | 1-11261-118-0 | 102.0 | 204.0 |
4BB1/4BD1 | 4 | XY01014-0211 | 1-11261-118-0 | 102.0 | 204.0 |
| 6 | XY01014-0212 | 9-11261-302-0 | 102.0 | 220.0(D116) |
DA640B | 6 | XY01014-0213 | 9-11261-293-0 | 102.0 | 220.0(D119) |
DA640C | 6 | XY01014-0214 | 9-11261-288-0 | 102.0 | 228.0(D119) |
4BE1 | 4 | XY01014-0215 | 5-11261-016-2 | 105.0 | 187.0 |
6BG1/6BF1 | 6 | XY01014-0216 | 1-11261-119-0 | 105.0 | 203.0 |
4BG1 | 4 | XY01014-0217 | 1-11261-119-0 | 105.0 | 203.0 |
6HE1 | 6 | XY01014-0218 | 8-94396-332-0 | 110.0 | 210.0 |
6HE1T | 6 | XY01014-0219 | 8-94390-530-0 | 110.0 | 210.0 |
4HE1T | 4 | XY01014-0220 | | 110.0 | 210.0 |
4HF1 | 4 | XY01014-0221 | 8-94396-276-3 | 112.0 | 180.0 |
10PA1/10PB1 | 8/10/12 | XY01014-0222 | 1-11261-063-0 | 115.0 | 219.5 |
6SA1 | 6 | XY01014-0223 | 1-11261-065-3 | 115.0 | 216.0 |
6HH1 | 6 | XY01014-0224 | 8-94393-273-1 | 115.0 | 209.8 |
4HG1 | 4 | XY01014-0225 | 8-97351-558-0 | 115.0 | 180.0 |
4HG1T | | XY01014-0226 | 8-97351-558-0 | 115.0 | 180.0 |
8PC1/10PC1 | 8/10 | XY01014-0227 | 1-11261-076-0 | 119.0 | 219.25 |
10PC1 | 10 | XY01014-0228 | 1-11261-143-1 | 119.0 | 219.25 |
10PD1/12PD1 | 10/12 | XY01014-0229 | 1-11261-161-1 | 119.0 | 234.5 |
10PC1T | | XY01014-0230 | 1-11261-076-0 | 119.0 | 219.0 |
6SD1 | 6 | XY01014-0231 | 1-11261-106-2 | 120.0 | 239.2 |
6QA1 | 6 | XY01014-0232 | 1-11261-160-0 1-11261-061-1 | 125.0 | 282.0 |
| 10 | XY01014-0233 | 1-11261-175-0 | 127.0 | 233.0 |
6RB1-MTC | 6 | XY01014-0234 | 1-11261-116-0 | 132.9 | 267.0 |
4M-6RB1 | 6 | XY01014-0235 | 1-11261-106-0 | 132.9 | 264.0 |
6WA1 | 6 | XY01014-0236 | 1-11261-296-0 | 132.9 | 266.0 |
E120 | 6 | XY01014-0237 | 9-11261-290-0 | 135.0 | 264.0 |
E120/6RA1/6RB1 | 6 | XY01014-0238 | 1-11261-133-0 9-11061-290-0 | 135.0 | 264.0 |
6RA1T | | XY01014-0239 | 1-11261-105-1 | 135.0 | 264.0 |
HIN0/ |
DM100 | 6 | XY01014-0240 | 11467-1440 | 90.0 | 199.0 |
W04D/E W06D/E | 4/6 | XY01014-0241 | | 104.0 | 201.0 |
W06E | | XY01014-0242 | 11467/1771 | 104.0 | 201.0 |
EH100 | 6 | XY01014-0243 | 11467-1040 | 105.0 | 206.0 |
DS70/DS90 | 6 | XY01014-0244 | 11467-1280 | 105.0 | 261.0 |
H06BT | 6 | XY01014-0245 | 11467-1931 | 105.8 | 204.0 |
EH300 | 6 | XY01014-0246 | 11467-1020 | 108.0 | 206.0 |
H06C(T) EH500 | 6 | XY01014-0247 | 11467-159 1601/1611/1621 | 108.0 | 204.0 |
EH700 H07C/H07D | 6 | XY01014-0248 | 11467-1200. 1210.1220.1230 | 110.0 | 204.0 |
J05C | 4 | XY01014-0249 | 11467-2601 | 114.0 | 204.0 |
EL100 | | XY01014-0250 | | 116.0 | 222.0 |
DK10 | | XY01014-0251 | 11467-1380 | 120.0 | 294.5 |
EB300/EB400 | 6 | XY01014-0252 | 11467-1180 | 120.0 | 278.0 |
EP100 | 6 | XY01014-0253 | 11467-1730 | 120.0 | 236.0 |
EM100 | 6 | XY01014-0254 | 11467-1661 11467-1671 | 124.0 | 236.0 |
M10G/M10C | 6 | XY01014-0255 | 11467-2000 | 127.0 | 236.0 |
| 6 | XY01014-0256 | 11467-1370 | 128.0 | 291.0 |
EF300/EF350 | 8 | XY01014-0257 | 11467-1071 | 132.0 | 248.0 |
EF500 | 8 | XY01014-0258 | 11467-1101 | 135.0 | 248.0 |
EF550 | 8 | XY01014-0259 | 11467-1690 | 135.0 | 248.0 |
EK100/EK200 | 6 | XY01014-0260 | 11467-1910 | 137.0 | 267.0 |
EF700 EF750/F170D | 8 | XY01014-0261 | 11467-1091 11467-1900 | 137.0 | 248.0 |
F17C/F17E | 8 | XY01014-0262 | 11467-1702 | 139 | 248.0 |
F20C | 8 | XY01014-0263 | 11467-2280 | 146.0 | 244.3 |
Other Models Cylinder LIner/ Sleeve:
BENZ, MAN, PEUGEOT, RENAULT, DAF, TOYOTA, MAZDA, MITSUBISHI, NISSAN, CATERPILLAR, HINO, ISUZU, CUMMINS, KOMATSU, YAMZ, KIA, HYUNDAI, DAEWOO, IVECO, FIAT, VOLVO, SCANIA, KAMAZ, etc.
MAN | KAMAZ | HYUNDAI | OPEL |
DAF | CUMMINS | ISUZU | PERKINS |
BENZ (MERCEDES-BENZ) | DAEWOO | IVECO | PEUGEOT |
BMW | DAIHATSU | VOLVO | RENAULT |
RVI | DEUTZ | KIA | SCANIA |
CATERPILLAR (CAT) | FIAT | KOMATSU | STYER |
UTB | STERY | JOHN DEERE | TOYOTA |
IFA | FORD | LAND ROVER | TRUCK |
SAVIEM | MTZ | MAZDA | VW (Volkswagen) |
CUMMINS | GM | MITSUBISHI | YAMZ |
YENUSEI | HONDA | NISSAN | Others |
Other Parts:
Offering cylinder head assembly(complete cylinder head), cylinder head, cylinder block, cylinder head gasket, gasket kit, cylinder head bolt, crankshaft, camshaft, connecting rod, and so on.
SERVICE:
1) Offering sample & drawing before production;
2) Quality guarantee: one year;
3) Making logo upon customers' needs;
4) Developing new models according to samples or drawings.
PACKAGE & SHIPPING
1) Neutral packing, XYTOSAN packing or according to customers' requirements;
2) Delivery time: 3 days if have stocks & about 35 days for producing;
3) By sea or air(TNT, DHL, FEDEX, UPS, etc. ).
Contact Name: Sunny
Mobile: 0086-15081594643
