Customized Size Marine Electric Window Wiper

Name: Customized Size Marine Electric Window Wiper
Brand: ibuyautoparts.com
SKU: 744887075
Availability: InStock
Rating: 4.3 (142 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

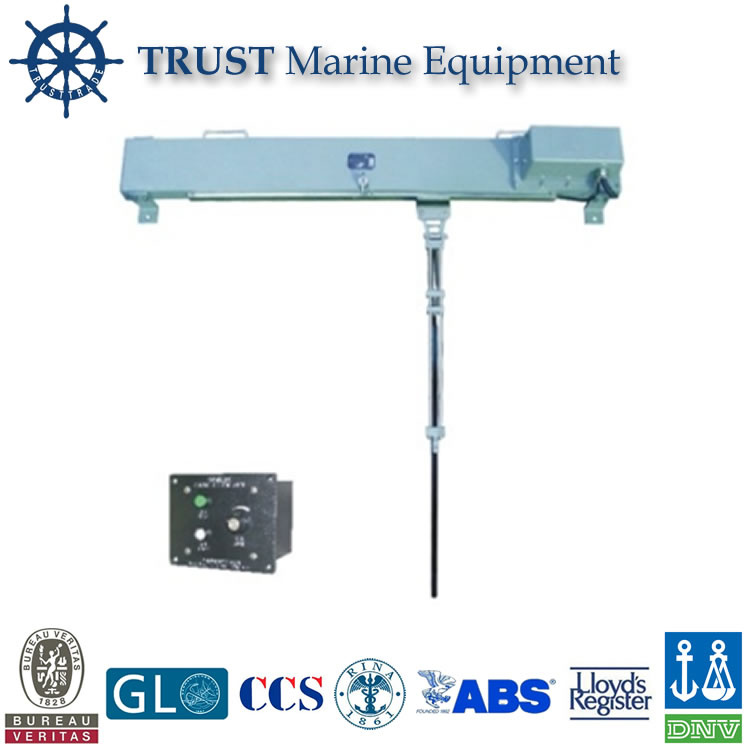

Marine Electric Window Wiper

Main Technical Data:

1.Power supply: AC 220V, AC 10V, DC 24V

2.Frequency:50Hz/60Hz

3.Wipe Speed:0.5-1.2m/sec

4.Consumed power of motor:≤120w

5.Consumed power of heater:≤300w

6.Protection grade:IP56

7.Outline dimension of control box

(Only for reference): Box(mm):130x100x132

Faceplate(mm):150x120x4

8.Power box external dimensions:

Box(mm):250x200x145

Mounting dimensions:280x170

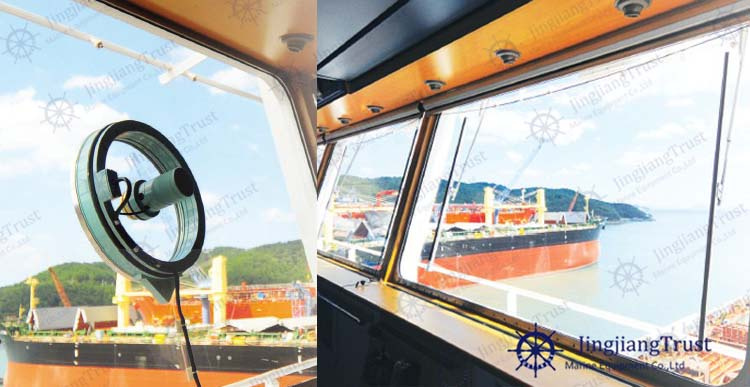

9.Installation:Main unit is mounted above outdoor side scuttle with the rod swinging downwards. If needing other installation method, both parties should confirm a special design and note it in technical specification.

10.Weight:≤26kg

11.Optional parts:heater, waterworks, automatic resetting

All different dimensions of wiper can be customized according to customer's requirements.

Type	Power supply	Body length L (mm)	Wipe stroke St (mm)	Arm length A (mm)	Blade length E (mm)
WGP2-JR	AC 220V	1000-3000	500-2700	400-800 (according to the height of center)	400-1000 (according to the height of window)
	AC 110V
WGP2-ZR	DC 24V

Prod Model:	WGP2-JR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Body Length:	1000-3000mm
Wipe Stroke:	500-2700mm
Arm Length:	400-800mm
Blade Length:	400-1000mm
Wipe Speed:	0.5-1.2m/S
Power Supply:	AC 220V, AC 110V, DC 24V
Frequency:	50Hz/60Hz
Operation Parts:	Heater, Waterworks, Automatic Resetting
Name:	Marine Electric Window Wiper
Keywords:	Window Wiper
Part:	Windscreen Wiper
Material:	Aluminum Alloy
Range:	Double Side
Sweep Angle:	80??
Driving Type:	Electrical
Application:	Ship,Boat
Size:	Custom
Brand:	Trust
