Customized Linking Spray Painting Booth in Guangzhou China

Customized Linking Spray Painting Booth in Guangzhou China
Price: US $ 8820-12150/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
Prod Model: Customized
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: White,Red,Orange,Blue.......
Voltage: as Require

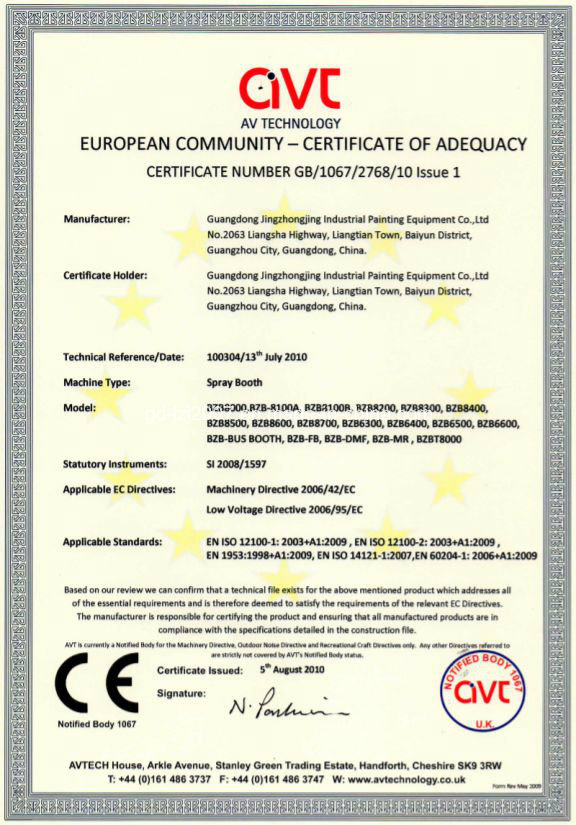

Certification: CE
Airflow Direction: Fully Undershot-type
Heating Mode: Diesel
Paint Mist Treatment: Dry-type
Condition: New
Brand: Bzb

Product Description

We can manufacture the car baking oven according to your detailed requirements. Please feel free to send us inquiries, from BZB spray booth factory.
We can totally undertake the design and manufacturing of different kinds of spray booth with different dimensions to your requirements.

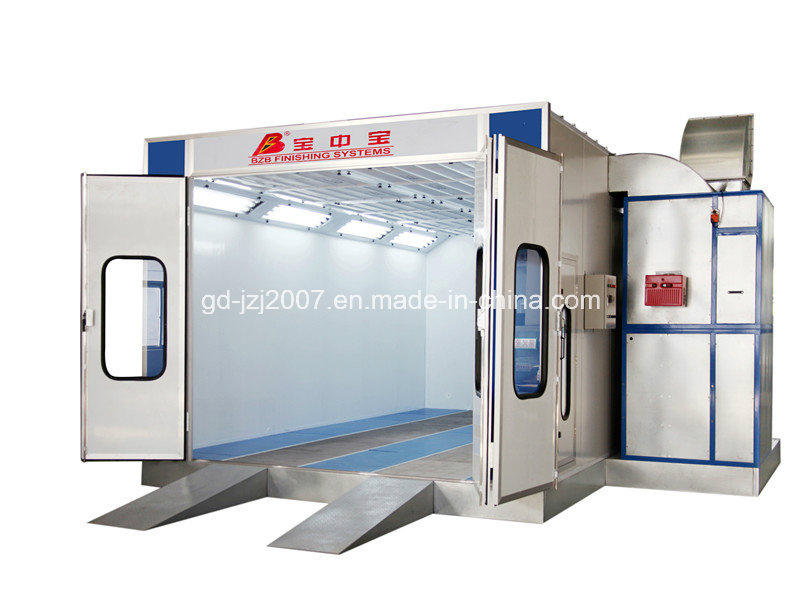

The photo above is a spray booth linked with a prep station.
Cabin System1. WallboardEPS (epispastics polystyrene)Colorful Steel Skin Boards, 70mm Thick, Tongue & Groove Style Compound Construction, Aluminum-alloy Frame, Anti-flame and Heat-Insulation
4. Basement:  Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps.
Air Circulation SystemInlet Turbine FanCapacity:     23450m 3 /hOutlet Turbine  FanCapacity:           30000m 3 /h
Power:                             9kwPower:                                 7.5kw
Quantity:                     1setQuantity:                               1set
 54 pcs Ceiling Nozzles with 3 Centrifugal Fans for Drying Water Paint
Air Volume: 37000m 3 /h; Air Speed: 0.5m/s
Air Purification systemDual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μ m. Ceiling Filter Capture Granules Bigger than 5μ m. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Balance Gauge, TSP≤ 1.2mg/m 3
Heating System 1. BurnerItaly Riello Brand, RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor
2. Heat Energy ConvertersStainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%
Max Temp: 80. C, Heating Time: 4-5min(20-60. C), Fuel Consumption: 4-6kg/vehicle
Lighting SystemCeiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 32 pcs 20w Philips Lamp, 1100 Lux
Electric Controlling SystemPLC Controlling, Soft Touching Botton, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
Environmental Conversation SystemMulti-Layer Fiberglasss Filter
Outside Size (mm): 7000*4000*3430Inside Size (mm): 6000*4000*2650 Total Power (Kw): 7
Cabin System1                Roof construction: cold rolling plate; Roof Panel: Galvanized steel
2                Front and Side: PVC  soft slipping on Aluminum guide
3                Back wallboard: EPS Steel Skin Board, 50mm Thick
4                Basement: Anti-embroidered    , Grid and embossed plates for walking platform; novel and beautiful frame; Good strength\stiffness\stability and impact
Air Intake and Exhaust System 1 Model: YD-5.6s; Capacity: 15003/h; Pressure: 800Pa; Speed: 900rpm, 1 set
2 Fan Cabin: Profile framework, Assembly of steel plate cabin; Construction: Solid\beautiful and easy for Maintenance
Air Purification systemFiltering structure: multi-storey fixed under the top network, no corrosion, and can capture granules bigger than 5um.
Environmental SystemThe first road of floor filter fixed under the grids can capture big granules.
The second fixed into Outlet fan cabin can capture the rest granules.
Lighting SystemCeiling Light: 24pcs 36W Philips Lamp; light can make the room bright and uniform.
Ballast is professional and durable.
Electric Controlling SystemIt is assembled by good electronic components. Main circuit has multi- protection.
working switch, light switch, emergency Stop, breakdown alarm.

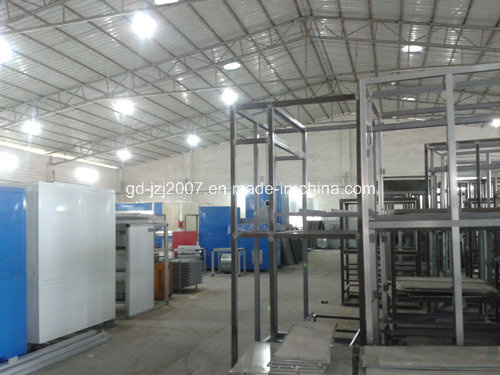

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
