Qingdao Chifine Machinery company is the manufacturer for Casting products for Auto parts with over 20 years' experience. Our products have been exported to Europe, South Asia, North America, Latin America, South Africa, etc.

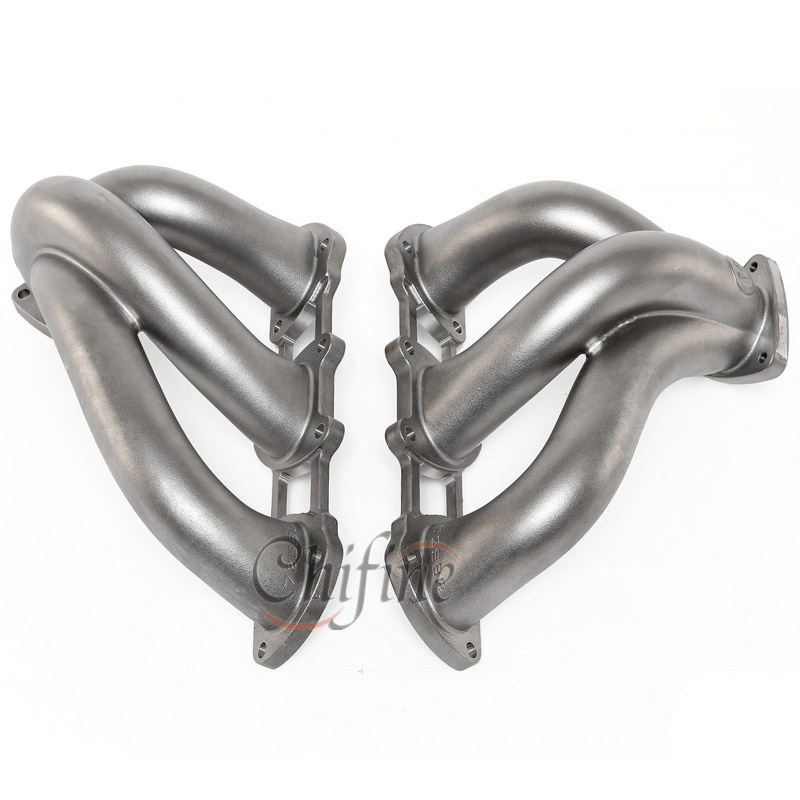

| Item Name | China Foundry Supplies Good Quality Cast Iron Exhaust Manifold |
General Products
Application/Service Area | Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc. |
| Main blank Process for Casting | Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting etc.
|
| Blanks Tolerance -Casting Tolerance | CT9-10 for Machine Molding Process,
CT8-9 for Shell Molding and Lost Foam Molding Casting Process
CT10-11 for Manual Molding Sand casting Process |
| Casting Blank Size /Dimensions | 2 mm-2000mm / 0.08inch-79inch for casting iron, according to customer requirement |
| Casting Blank Weight | Range from 0.01kg-1000kg for casting iron |
| Applicable Machining Process | CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
|
| Machining Tolerance | From 0.005mm-0.01mm-0.1mm |
| Machined Surface Quality | Ra 0.8-Ra3.2, according to customer requirement |
| Applicable Heat Treatment | Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching |
| Applicable Finish Surface Treatment | Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting etc. |
Ductile Iron Casting Material Comparison Table:
Cast iron with nomular graphite
DIN EN 1563 | Germany
DIN 1693 | France
NF | Great Britain
BS | Netherlands
NEN | Sweden
MNC | USA
ASTM A536 |
| EN-GJS-350-22-LT | GGG-35.3 | FGS 370-17 | 370/17 | GN 38 | 0717-15 | ---- |
| EN-GJS-400-18-LT | GGG-40.3 | ---- | ---- | ---- | ---- | 60-40-18 |
| EN-GJS-400-15 | GGG-40 | FGS-400-12 | 420/12 | GN 42 | 0717-02 | 60-40-18 |
| EN-GJS-400-10 | ---- | ---- | 420/12 | ---- | ---- | 65-45-12 |
| EN-GJS-500-7 | GGG-50 | FGS-500-7 | 500/7 | GN 50 | 0727-02 | 65-45-12/
80-55-06 |
| EN-GJS-600-3 | GGG-60 | FGS-600-3 | 600/3 | GN 60 | 0732-03 | 80-55-06 |
| EN-GJS-700-2 | GGG-70 | FGS-700-2 | 700/2 | GN 70 | 0737-01 | 100-70-03 |
| EN-GJS-800-2 | GGG-80 | FGS-800-2 | 800/2 | | | 120-90-02 |
| EN-GJS-1000-5 (DIN EN 1564) | GGG-100B/A | ---- | ---- | ---- | ---- | 850-550-10 |
| EN-GJS-AX NiSiCr35 5 2 | GGG-
NiSiCr 35 5 2 | FGS-
Ni35Si5Cr2 | S5S | ---- | ---- | Type D-5S |
Grey Iron Casting Material Comparison Table:
Cast iron with lamellar graphite
DIN EN 1561 | Germany
DIN 1691 | France
NF | Great Britain
BS | Netherlands
NEN | Sweden
MNC | USA
ASTM A48 |
| EN-GJL-150 | GG-15 | Ft 15 D | Grade 150 | GG 15 | 01 15-00 | 20 B / 25 B |
| EN-GJL-200 | GG-20 | Ft 20 D | Grade 180/220 | GG 20 | 01 20-00 | 25 B / 30 B |
| EN-GJL-250 | GG-25 | Ft 25 D | Grade 220/260 | GG 25 | 01 25-00 | 35 B / 40 B |
| EN-GJL-300 | GG 30 | Ft 30 D | Grade 300 | GG 30 | 01 30-00 | 40B / 45 B |
FAQ
1)Q:Are you a manufacturer or a trading company?
A:We are a professional manufacturer with over 20 year` export experience for designing and producing various castings,such as iron castings, steel castings, aluminum castings, etc.
2)Q:Can you make casting according to our drawing or samples?
A:Yes,we can make casting according to your drawing.But if the samples,we need to take the charge of surveying and mapping samples from customers.
3) Q: Why choose Chifine ?
A: We can provide the best products and best service with good price.
4) Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
5) Q: Do you have standard metal parts?
A: Yes,and we also manufacture customized metal parts by drawings or samples.
6) Q: Do you provide customized products?
A: Yes. Customers give us drawings and specifications or samples, and we will manufacture accordingly.
7)Q: What is your payment term?
A: Payment terms such as T/T, L/C,D/P,Paypal,Money Gram, Western Union.
Please feel free to contact us to get our best quote.
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
