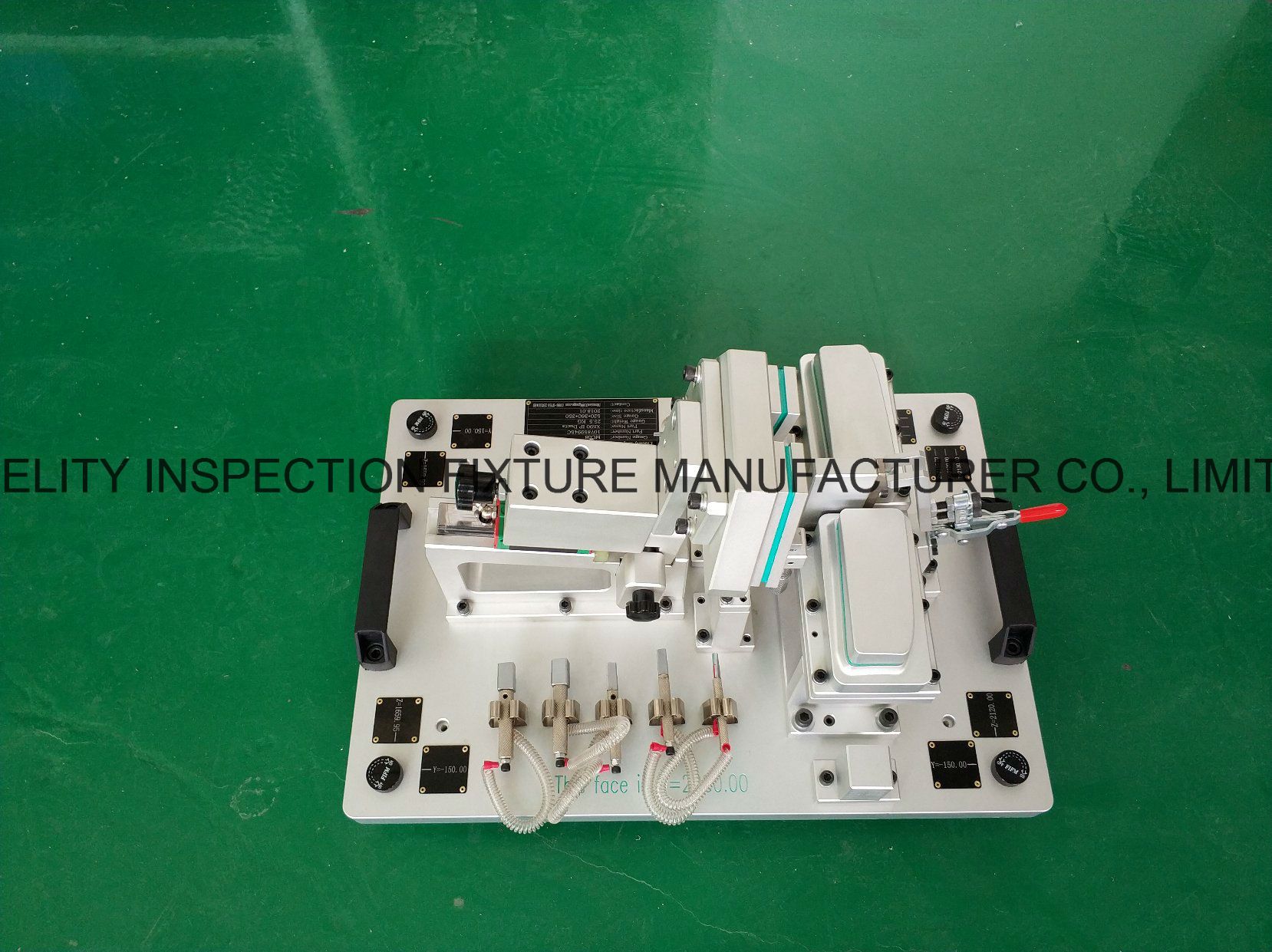

Customized Centre Face Vent Duct Checking Fixture/Jig/Gauge for Bwm

Customized Centre Face Vent Duct Checking Fixture/Jig/Gauge for Bwm
Price: US $ 1500-2500/Set
Min Order: 1/Set
Pay Type: L/C,T/T
*Specification
   Size :550*520*460mm
   Weight : 50KG
   Base plate:  Aluminium alloy
*Process
  CNC machining(Milling/Turning), Grinding
  Sheet metal stamping, bending, welding, assembly
  Punching, Deep drawing, Spinning
* Surface treatment (finish)
   High polish, brush, sand blast, anodization, plating (nickel, chrome),powder coat, Lacquer painting, , silk screen, pad printing
* Precise accuracy
   Datum's hole's precision: +/-0.05MM
   Locating Datum's precision: +/- 0.05MM
   Profile precision: +/-0.1MM
* Quality control
  CMM (3D coordinate measuring machine), 2.5D projector
  Thread gauge, hardness, caliber.    A closed-loop QC system
  Third party inspection available if required
*Lead time & Packing
  15~25 days after 3D design approved
  3~7 days via express: DHL, FedEx, UPS, TNT, etc.
  Standard export wooden case/carton
* More
  All of the checking fixture are custom made only, not in stock; We can produce based on your drawings or  samples.
  We can sign NDA(Non-disclosure Agreement) with you if you need;
  Small orders are welcome.










Prod Model: FIFM000121
Certification: SGS
Update Method: by Internet
Testing Equipment Type: Centre Face Vent Duct Detection

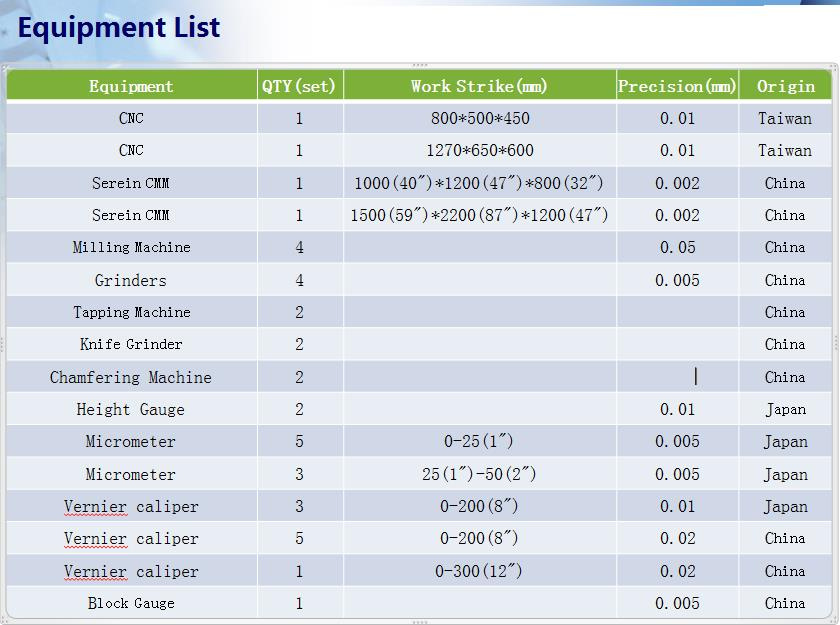

Fidelity Inspection Fixture Manufacture Co., Ltd is specialized in designing and manufacturing the precision inspection fixture for auto components. With advanced inspection fixture manufacturing equipments which imported from Japan and Taiwan, the output of our company have already reach to 16000 sets per year. So far, Fidelity Inspection Fixture Manufacture Co., Ltd have already built a long-term and stable business with many world famous automobile manufacturers and auto components manufacturers, such as GM, Honda, Toyota, G. M, Ford, BYD, etc.

With the rapid development of our company, Fidelity Inspection Fixture Manufacture Co., Ltd has many experienced management personnel and senior technical engineers. Our target is "Continuously exceed customer expectations", that is the reason why we always keeping moving on a higher position.

Our service concept---Unremitting in pursuit of excellence

Our business philosophy---Quality first, customer first principle of service

Our target---Quality first, customer first principle of service

Design concept---We pay special attention on every step and every detail
