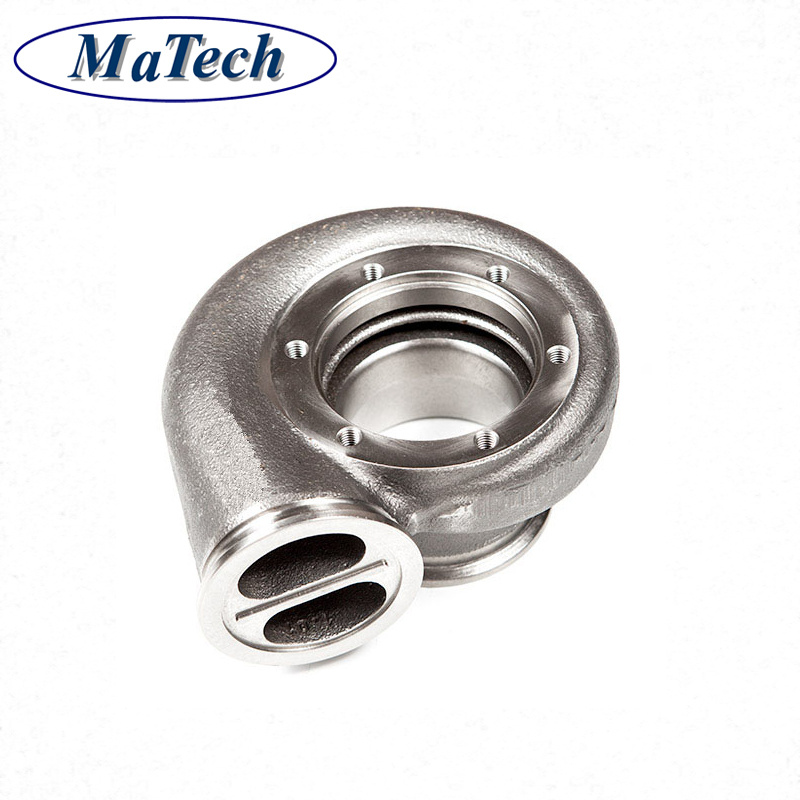

Item Name | Custom High Precision Turbine Housing Casting Stainless Steel Casting |
General Products Application/Service Area | Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc. |
Main blank Process for Steel Casting | Investment casting (wax mold made by middle temperature wax) /Precision casting ; Lost Wax Casting (wax mold made by low temperature wax)/ Precision casting |
Blanks Tolerance -Casting Tolerance | CT7-8 for Lost wax Casting Process CT4-6 for Investment casting Process |
Applicable Material | Carbon steel, Low Carbon steel, middle carbon steel,WCB, WCA, WCC, ISO 340-550, Alloy Carbon steel: G25CrMo4, Heat Resistant Steel, Stainless Steel: CF8, CF8M, . G-X6CrNiMo1810, G-X7CrNiNb1189, SUS 304, 304L, 316, 316L. OR According to customer requirement Copper alloy Brass: HPb59-1, CuZn39Pb1/2/3, CuZn40, C36000, C37710, C67400, etc. Aluminum Bronze: QAl11-6-6, CuAl10Fe2/3, CuAl10Ni5Fe5, C65500, C95600, C87500 Sn Bronze: CuPb5Sn5Zn5, C83600, C84400, C86500. etc. Magnesium |
Casting Blank Size /Dimensions | 2 mm-600mm / 0.08inch-24inch according to customer requirement |
Casting Blank Weight | Range from 0.01kg-85kg |
Applicable Machining Process | CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc. |
Machining Tolerance | From 0.005mm-0.01mm-0.1mm |
Machined Surface Quality | Ra 0.8-Ra3.2 according to customer requirement |
Applicable Heat Treatment | Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching |
Applicable Finish Surface Treatment | Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting, |
MOQ | For stainless steel casting : 200pcs For machining: 50pcs |
Lead Time | 45days from the receipt date of deposit for stainless steel casting |

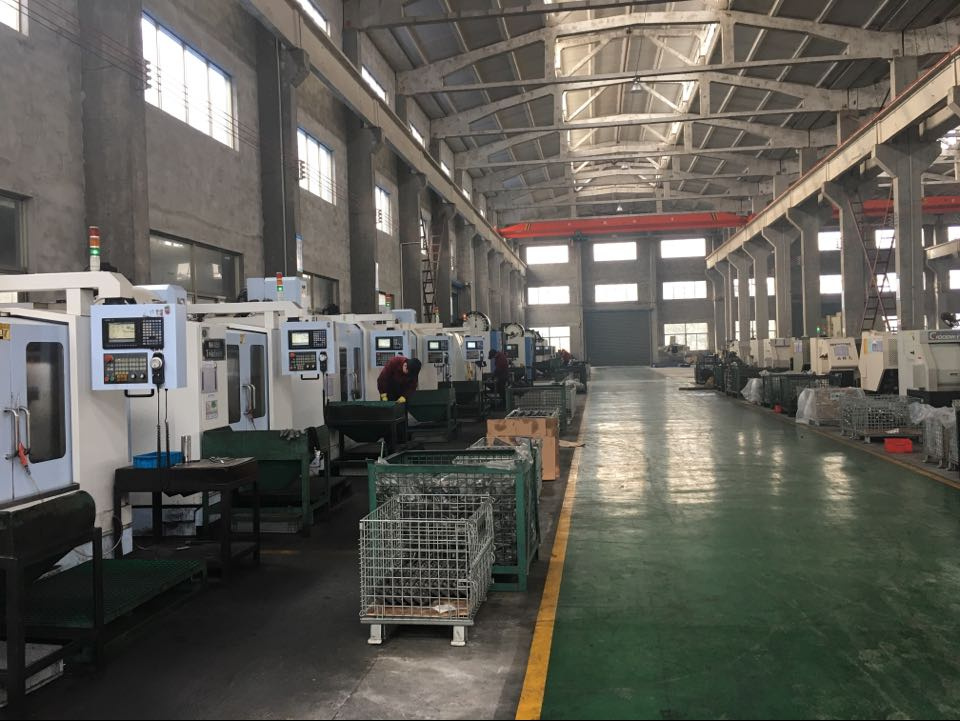

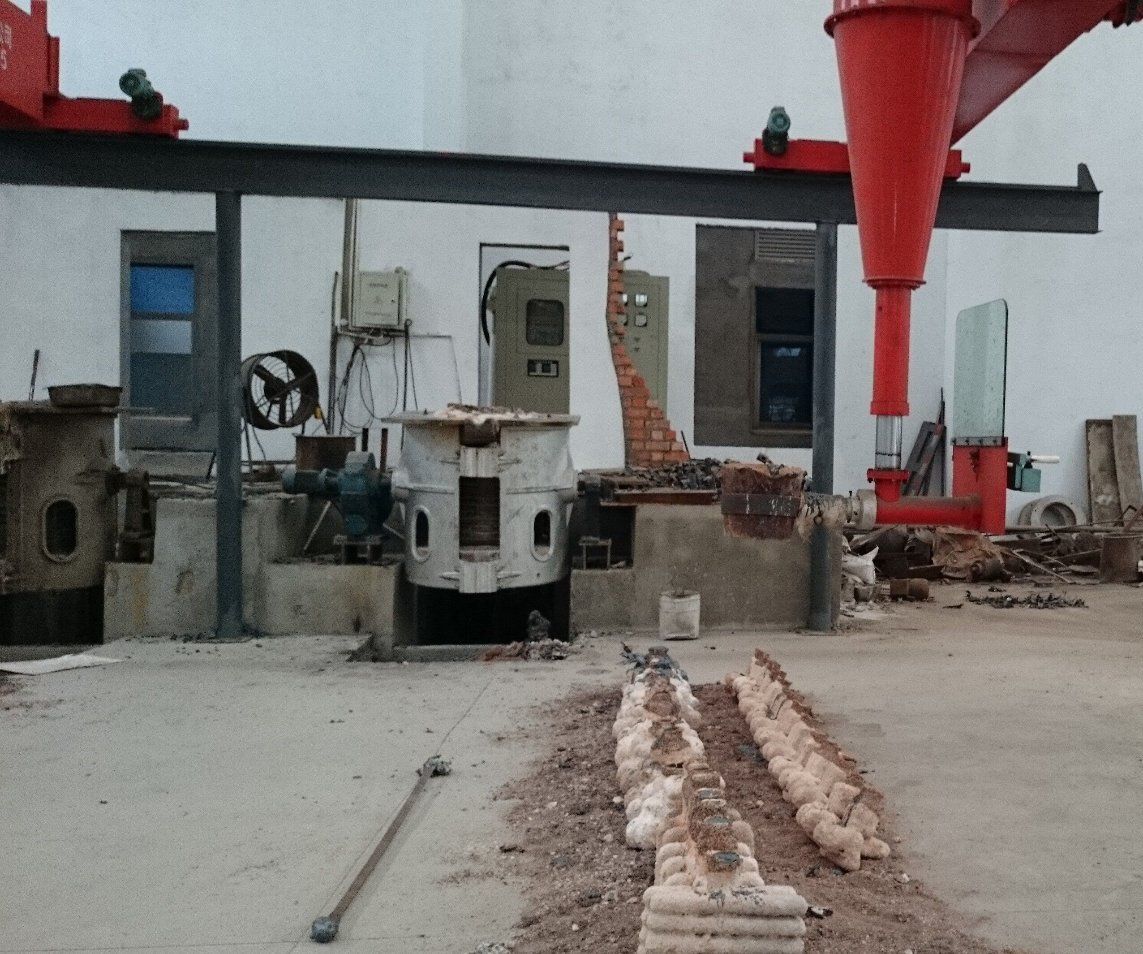

Factory show
Matech Industry ltd specializes in Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system.
With keeping manufacturing process design, quality planning, key manufacturing processes and final quality control in house we are mastering key competence to supply quality mechanical parts and assembly to our customers for both China and Export Market .
To satisfy different mechanical and functional requirements from our customers we are able to make a big range of metal products for our clients on base of different blanks solutions and technologies. These blanks solutions and technologies include processes of Iron Casting, Steel Casting, Stainless Steel Casting, Aluminum Casting and Forging.
During the early involvement of the customer's design process we are able to provide professional input to our customers in terms of process feasibility, cost reduction and function approach. You are welcome to contact us for technical enquiry and business cooperation.
Package Contact us
FAQ:
1. Are you a manufacturer or a trading company?We are a professional manufacturer with over 15 years' export experience for designing and producing vehicle machinery parts.2. How can I get some samples? If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order. 3. Can you make casting according to our drawing?Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved. 4. Can you make casting based on our samples?Yes, we can make measurement based on your samples to make drawings for tooling making. 5. What's your quality control device in house?We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of castin
Shanghai Matech Machinery Manufacture Corporation, branch of Matech Industry, provide high quality sanitary valve, ball valve, gate valve for food, wine, chemistry and oil industry. As a 15 years manufacture in foundry and machining business areas Matech also produce iron casting, steel casting, aluminum casting, stainless steel casting and forging parts for vehicle and agriculture machine, pump and valve, transportation system and other industrial customers all over the world.
We are focus on metallurgical technology, foundry engineering, manufacturing and assembly test to fulfill customers' high requirements and secure high reliable quality for each delivery. As a successful supplier in supplying products to both European and North American market and quality system certified manufacture we prize the honor we have gained from the customers and market on quality, delivery, service and cost control. Matech Team is always ready to listen to the customer's voice and build value to our customer's application and business. We provide early involvement on design support and review input eg. Manufacturing feasibility analysis for the specified project of our customers when this is needed by our cutomers.
Matech team members have more than twenty years experience on Valve making, foundry, mechanical engineering, manufacturing and quality assurance. MATECH promise and secure the quality for all the products delivered.
You are welcome to enquire and order products from Matech Industry, including Valve and Pump, mechanical parts made by iron casting, steel casting, stainless steel casting, aluminum casting, forging and fabrication. We produce products according to your special requirements and the standards of European or American Countries.
