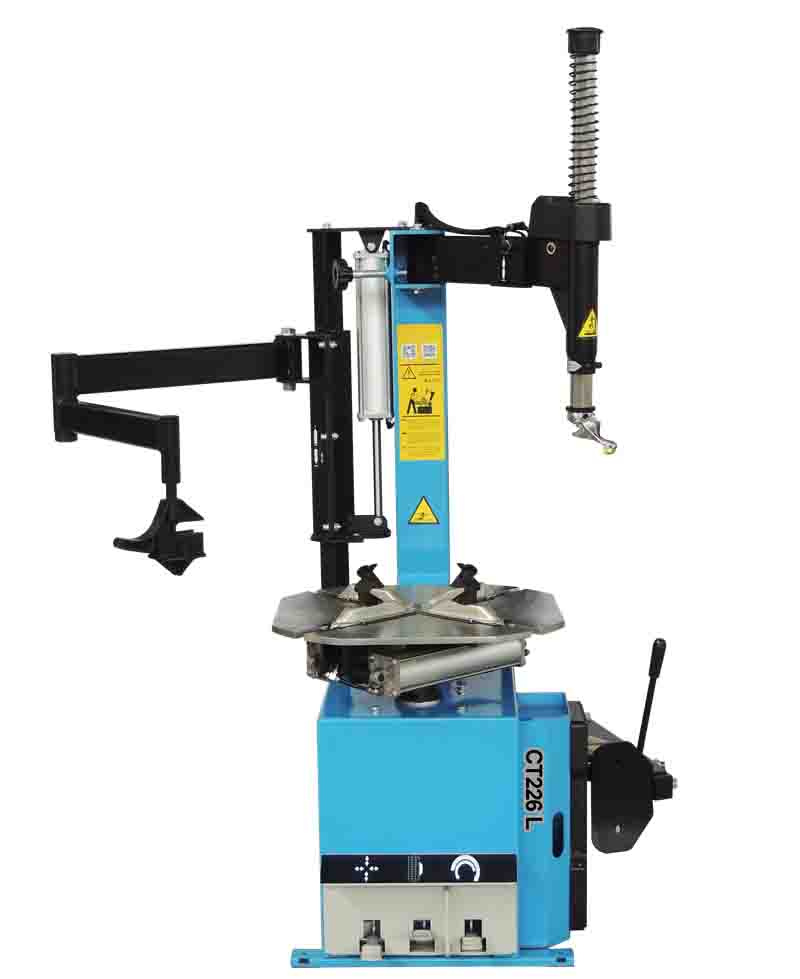

CT226L Car Tyre Changer
| Price: |
US $ 660-710/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
CT226L |
| Max. Weight Diameter: |
1020mm(40") |
| Max. Wheel Width: |
356mm(14") |
| Inside Chuck Size: |
12"-26" |
| Outside Chuck Size: |
10"-24" |
| Power Supply: |
220V 1pH/380V 3 pH |
| Frequency: |
50/60Hz |
| Working Pressure: |
8-12 Bar |
| Bead Breaker Power Per Cylinder: |
2800kg |
| Rotate Speed: |
6-12rpm |
| Net Weight: |
242kg |
| Certification: |
ISO |
| Condition: |
New |
Product Description
Car Tyre Changers-GT326 Pro
Professional dual auxiliary arm tire changer
Save work space design, applicable to small and medium car,discouraged available (explosion) tires, lower than the flat performance tires, tubeless tires are available.
Professional dual auxiliary arm tire changer
Save work space design, applicable to small and medium car,discouraged available (explosion) tires, lower than the flat performance tires, tubeless tires are available.
Standard configuration:Help 3 pneumatic double auxiliary arm device
Can independently control the left with the dynamic pressure tires arm and right arm design, tyreWhile more auxiliary tire pressure. Low set, in the process of disassembling tyres can assistLift tire.One-piece
elevator slippery course design, have fine tuning function, indeed Lift smooth and stability, more efficient and better use.
400mm high-strength hexagonal removable arm,better anti-deformation ability. Pneumatic locking device with
automatic retreat designed to protect the head and hub disassembly security clearance, to avoid accidental
injury.
High strength tire changer head, adapt to strong job, a small amount of deformation, longer service life.Dual cup pressure adjustable water separator can effectively atomized pneumatic components lubricants, separate the intake of water, extend the life of the seal.
Foot pneumatic valve piston rod assembly is made of pure steel, so the surface is more smooth and corrosion resistance, longer life. Drawer control assembly, simple structure , fast and easy maintenance.
Best quality all-aluminum copper motor with advantages of faster heat dissipation, low loss, high power.
180mm all-aluminum double-inlet tread separation cylinder, fully sealed design, low pressure supported, longer service life.Thickness is 15 mm wheel chuck parts, with the function of claw size fine adjustment, claw can precise (fine) control at any position, convenient for clamp the wheel, to avoid accidentally injure.
Technology parameter:| Max. Wheel diameter | 1100 mm(43") |
| Max. Wheel width | 460 mm(18") |
| Inside chuck size | 12"-26" |
| Outside chuck size | 10"-24" |
| Power supply | 380/3PH/50-60Hz |
| Working pressure | 8-12 bar |
| Bead breaker power per cylinder | 2800 kg |
| Self-centering rotation speed | 6-12rpm |
| Net weight | 330 kg |
GUANGZHOU SHUNLI MACHINE CO.,LTD
Our company is a profession company in manufacturing garage equipment, main production is vehiche lifts, which include: double scissor lift, wheel alignment scissor lift, 2 and 4 post lift and special application lift for projects.
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
