Integrate the mature technologies to test all types of common rail injectors and pumps by Bosch, Delphi, Denso and Siemens.
CRS-A Common Rail Tester
FOB Price: Get Latest Price
Minimum Order Quantity: 1 Set/Sets
Supply Ability: 50 Set/Sets per Month
Payment Terms: L/C, T/T
It is the electronic equipment for testing all kinds of common rail fuel injection injectors and pumps by Bosch, Delphi, Denso
And Siemens. Upgrade a traditional diesel high pressure pump test bench to a full functioned equipment for all tests of repairing
Common rail injectors, pumps or CR systems.
CR Injector Drivers:
6 solenoid injectors
High voltage for Bosch, Denso injectors
Low voltage for Delphi injectors
6 piezoelectric injectors, made by Siemens
Short circuit protection for both solenoid and piezo injector drivers
CR Pump Drivers:
Multiple independent PWM (Pulse Width Modulation) output channels to drive pump solenoids
Testing pumps with single regulation valve
Bosch CP1/CP2/CP3
Delphi CRSP
Denso HP3/HP4
Testing Siemens DCP pump with two regulation valves
Drive 3 DRVs for testing pump capability
2 special output channels synchronous with pump speed to drive the two control solenoids on Denso HP0 (ECD-U2)pump
Fuel Rail Pressure Sensor
Pre-calibrated for Bosch, Delphi, Denso pressure sensors
User calibrateable for different pressure sensor
Automatic rail pressure control
Software based over-pressure protection

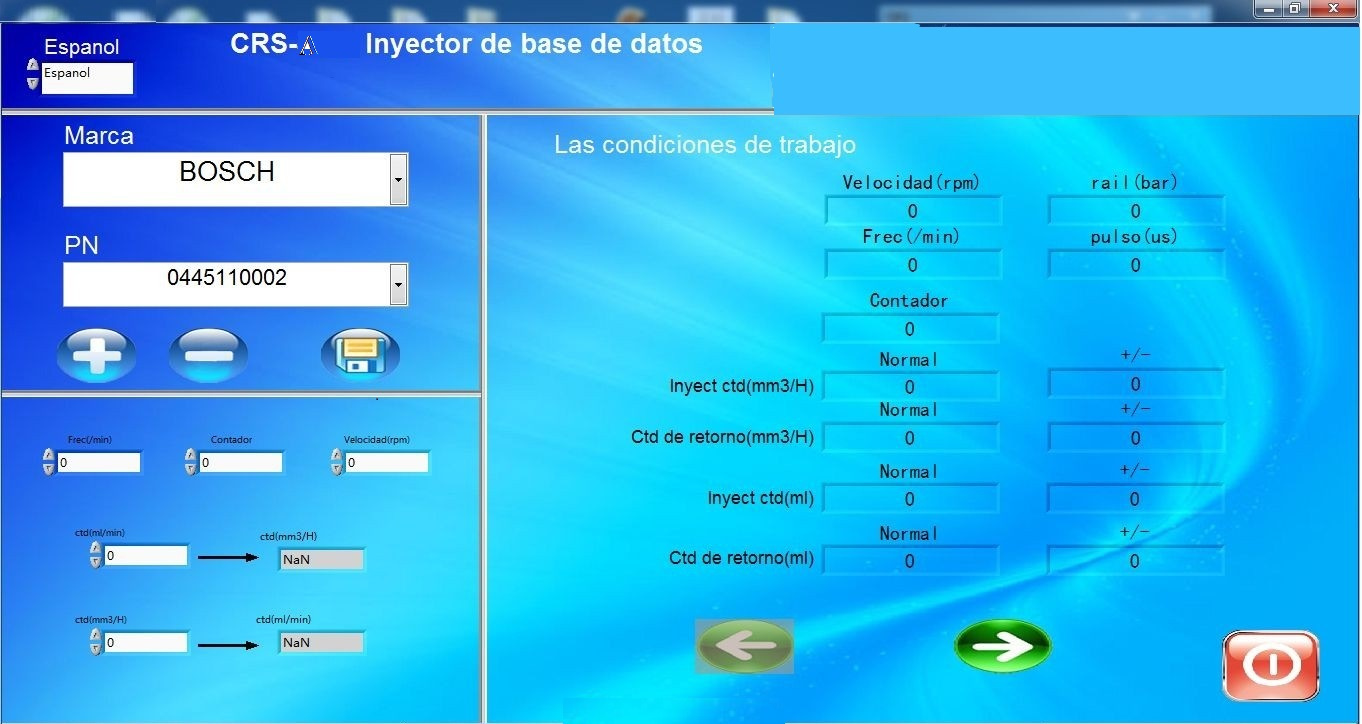

User Interface
Touch screen with a simple 4-key panel
User friendly multi-language interface
User manageable test database
Standard keyboard and mouse
Standard SD card port for system software upgrade, a SD card is included in the package
6 LED to indicate injector status
Standard VGA port for external large screen display
Others
One year manufacture warranty
One year software free upgrade
Injector and pump test procedure and database
DRV adaptor for pump flow rate test (Optional)
Rich accessories
Matching supporting cabinet with 4-wheels(Optional)

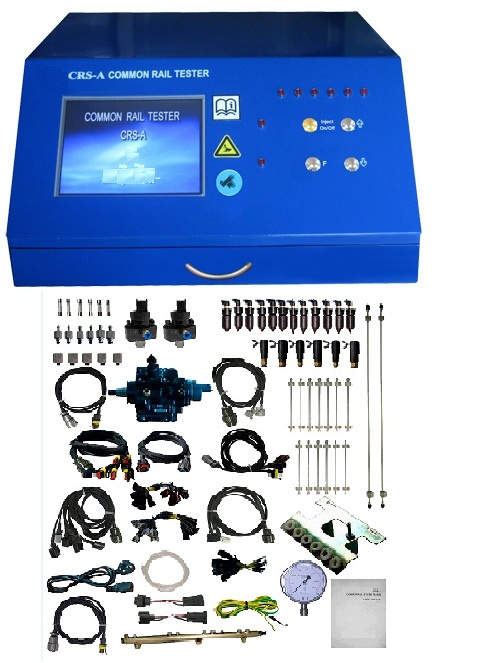

PACKING LIST FOR CRS-A |
P/N | Name | Description | ORDER QTY |
710051 | CRS-A Common Rail Tester | The Main Electronics Simulator with Multiple Function | 1 |
710101 | Keyboard | Standard PC Keyboard | 1 |
710102 | Mouse | Standard PC Mouse | 1 |
710103 | Touch Pen | To Work on the Touch Screen | 1 |
710107 | USB Memory Stick | for System Maintenance and Upgrade | 1 |
711017 | User's operational manual | For CRS-A | 1 |
710108 | Operation Video CD | Demonstrate CRS-A operation | 1 |
716001 | Main Cable | For Rail Pressure Sensor | 1 |
716002 | Extension Cable | For Bosch Pressure Sensor | 1 |
716003 | Extension Cable | For Denso Pressure Sensor | 1 |
711035 | Main Cable | For Pressure Regulation Valve of BoschDelphiDenso HP3/HP4 Pump | 1 |
715003 | Extension Cable | For Bosch Pump Regulation Valve | 1 |
715004 | Extension Cable with Plug-Head Terminals | For Denso HP3/HP4Delphi CRSP Pump | 2 |
716009 | Main Cable | Independent Drive Channels to Drive 3 DRVs And for the 2nd Regulator Valve on Siemens Pump | 1 |
711003 | Cable | To Control the Shut-Off Valve on Bosch CP1 Pump | 1 |
716006 | Main Cable | For Driving 4 Piezo Injectors | 1 |
716007 | Main Cable | For Denso HP0 Pump | 1 |
716008 | Timing Signal Cable | For Connecting Timing Sensor on Denso HP0 Pump. With Two Connectors for either a 2-pin Magnetic Sensor or a 3-pin Hall-Effect Sensor | 1 |
711011 | Extension Cable | For Delphi CR Injector | 6 |
711012 | Extension Cable | For Bosch CR Injector | 6 |
711013 | Main Cable | For Driving 6 Solenoid Injectors | 1 |
711055 | Extension Cable | With clamp terminal for CR injector | 6 |
712004 | Extension Cable | For Denso CR Injector | 6 |
| AC Power Cord | | 1 |
711007 | Ground Wire | | 1 |
711009 | Fuse(5A) | To protect pump drive channel #1,#2(5A) | 6 |
716012 | Fuse(15A) | FOR AC power (15A) | 3 |
712000 | Fuse(10A) | To protect Bosch/Delphi CR Injector drive channel (10A) | 3 |
940307 | Adaptor assembly | To collect fuel from Φ7mm injector nozzle | 6 |
900855 | O-Ring | Spare parts for Φ7mm Nozzle adapter assembly (P/N 940307) | 6 |
940308 | Nozzle adapter assembly | To collect fuel from Φ9mm injector nozzle | 6 |
900861 | O-Ring | Spare parts for Φ9mm Nozzle adapter assembly (P/N 940308) | 6 |
900846 | Fitting | For Bosch automotive CR injector fuel return port | 6 |
900880 | Fuel defogger | At the end of nylon fuel tube to the measurement glass graduates | 12 |
710005 | Nylon tube | OD Φ6mm, 6m long | 1 |
500630 | Mounting Stand for Fuel Rail and Injectors | Mounting fuel rail assembly and CR Injectors on the test bench | 1 |
710017 | High pressure fuel line | M14×1.5 nuts on both ends, OD 6mm, ID 2mm, 500mm long. Matching for Fuel rail assembly (P/N710010) | 8 |
710008 | High pressure fuel line | M14×1.5 nut on one end, M12×1.5 on the other end, OD 6mm, ID 2mm, 500mm long. Matching for Fuel rail assembly (P/N710010) | 8 |
710018 | High pressure fuel line | M14×1.5 nuts on both ends, OD 6mm, ID 2mm, 150mm long. Matching for Fuel rail assembly (P/N710010) and High pressure gauge assembly, P/N 500501 | 1 |
Prod Model: |
CRS-A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Tester Equipment: |
Crs-a Common Rail System Tester |
Test Model: |
Bosch, Delphi, Denso, Siemens |
Tester Function: |
Common Rail Injectors and Pumps |
Quality: |
Excellent |
Price: |
Competitive |
Type: |
Engine Analyzer |
Voltage: |
AC 220V |
Place Of Origin: |
Hubei, China |
Brand Name: |
12psdw |
Certification: |
ISO |
Update Method: |
by Hard Disk |
