| Prod Model: |
CRS-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
370*270*200 (mm) |
| Power: |
Electronic |
| Usage: |
Auto Testing Machine |
| Function: |
with Piezo |
| Weight: |
5kg |
| Maximum Pressure: |
40MPa |
| Certification: |
CE |
| Update Method: |
by Internet |
Product Description

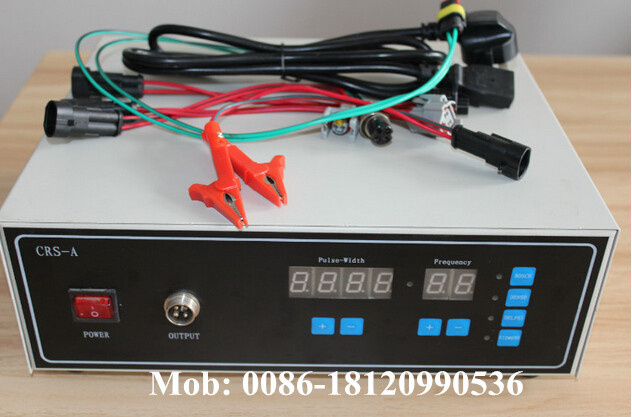

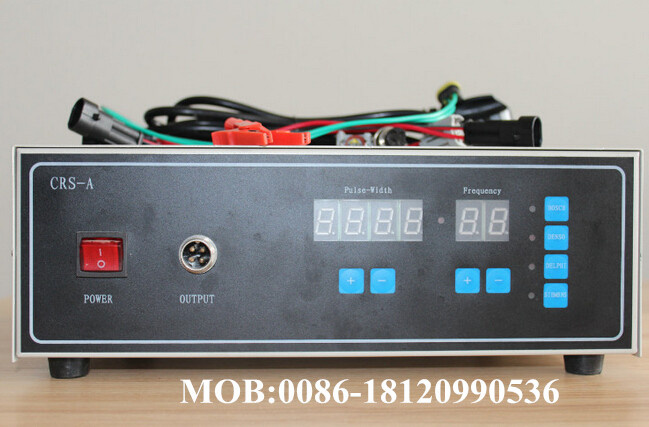

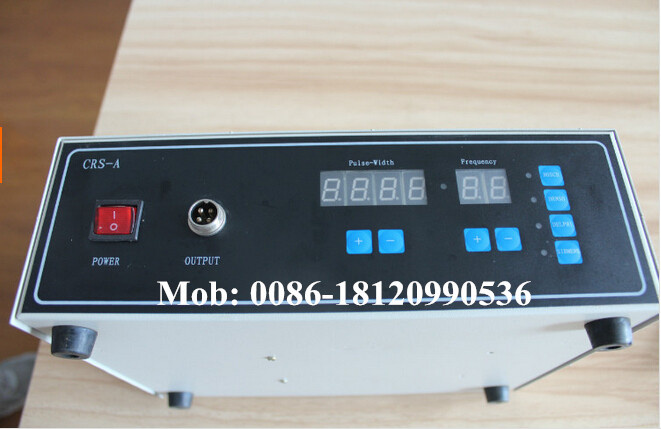

CRS-A common rail electronic injector pressure tester with piezo testing function
CRS-A can test nozzle spray pattern and injector back leakage, to check the CR injector with either solenoid or piezo technol
CR1000A, the repair tester to simulate the engine Control Unit (ECU) driving signals for a common rail injector of either solenoid technology or piezo technology,
made by Bosch, Delphi, Denso and Siemens. The user is able to set the control parameters of fuel injection drive signals.
By combining of a CR1000A tester and a high pressure fuel source, which may be a mechanical manual pump, or an electrical motor driven pump,
or a pneumatic driven pressure booster, to feed the CR injector, the user is able to fulfill the tasks, such as nozzle spray pattern and injector back leakage,
to check the CR injector with either solenoid and piezo technology .
Design Features
1. Modulated driving signal to ensure the safety of the solenoids of the injectors
2. Injector driving signal Adjustable frequency and pulse width
3. Short circuit protection for solenoid driving signals

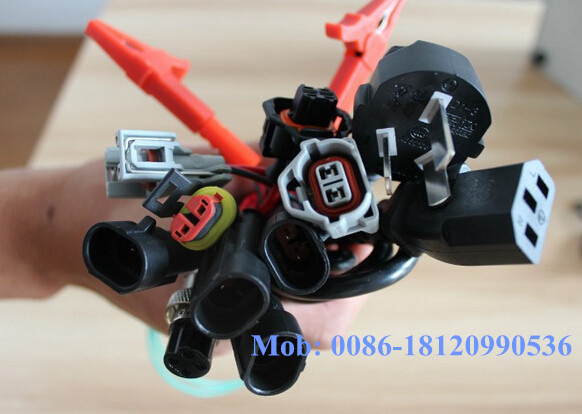

4. Rich accessories, ready to test Bosch, Denso and Delphi injectors
5. It can test 3 injectors at the same time
6. It is safe for the injection start signal can be adjusted
7. Short-cut protection
Main parameter
Maximum pressure: 40MPa
Overall dismensions: 320*300*500
Net weight: 10 kg
Pressure guage range: 0-60 Mpa
Contact Person: Emily
Mobile No.: 0086-18120990536
Weifu Hongbeng Diesel Pump Co., Ltd. Offer world class Automotive diesel injection nozzles that are made from industrial grade materials like EN 31 Metal and High speed steel. Vitally important for the regulation of the fuel flow to ignition compartment our Diesel Injection Nozzles. Owing to durable and strong structure to them. Made in accordance with strict international quality standard(Quality test and producing according diesel etc international brand )so the have been preferred and purchase by clients all over the world. The Truth show our HongBeng Diesel injection nozzles have proven to be the ultimate choice for number of heavy truck and diesel engine.
Our products:
NOZZLE
COMMON RAIL NOZZLE
PLUNGER
DELIVERY VALVE
INJECTOR
ELEMENT
FEED PUMP,
HAND PRIMER
HEAD&ROTOR
GASKET
CAM DISK
DRIVE SHAFT
PLUG
TEST BENCH
TEST INJECTOR
NOZZLE TESTER
USE FOR
Application(BOSCH ENGINE)
CDC
CUMMINS
DAF
Iveco
KHD
MACK
MAN
MERCEDES-Benz
MTU
MWM-DIESEL
Renault
SCANIA
Volvo
VW
OHTER A~I
OHTER K~Z
Application(ZEXEL ENGINE)
DAEWOO
HINO
ISEKI
ISUZU
KOMATSU
KUBOTA
MAZDA
MITSUBISHI
MITSUBISHI HEAV
Nissan
Nissan DIESEL
OTHER
Application(DENSO ENGINE)
Toyota
HINO
MITSUBISHI
MAZDA
DAIHATSU
KOMATSU
KUBOTA
JOHN DEERE
YAMAHA
TICO
ISHIKAWAJIMA
OTHER
Application(DELPHI ENGINE)
Delphi Diesel Injectors
E1 Electronic Unit Injector
E3 Electronic Unit Injector
Smart Injector
Electronically actuated injectors
Function
To Diesel Engine regulate the flow of diesel fuel to the ultimate ignition compartment
To convert the diesel into the diesel vapors and spray Into the piston
Specialty
Help efficient functioning of dieselfuel injection systems
Made from world class and industrial grade materials
Unique construction design
Durable and easy to install
Low Emission(IV standard) and Low Maintenance
