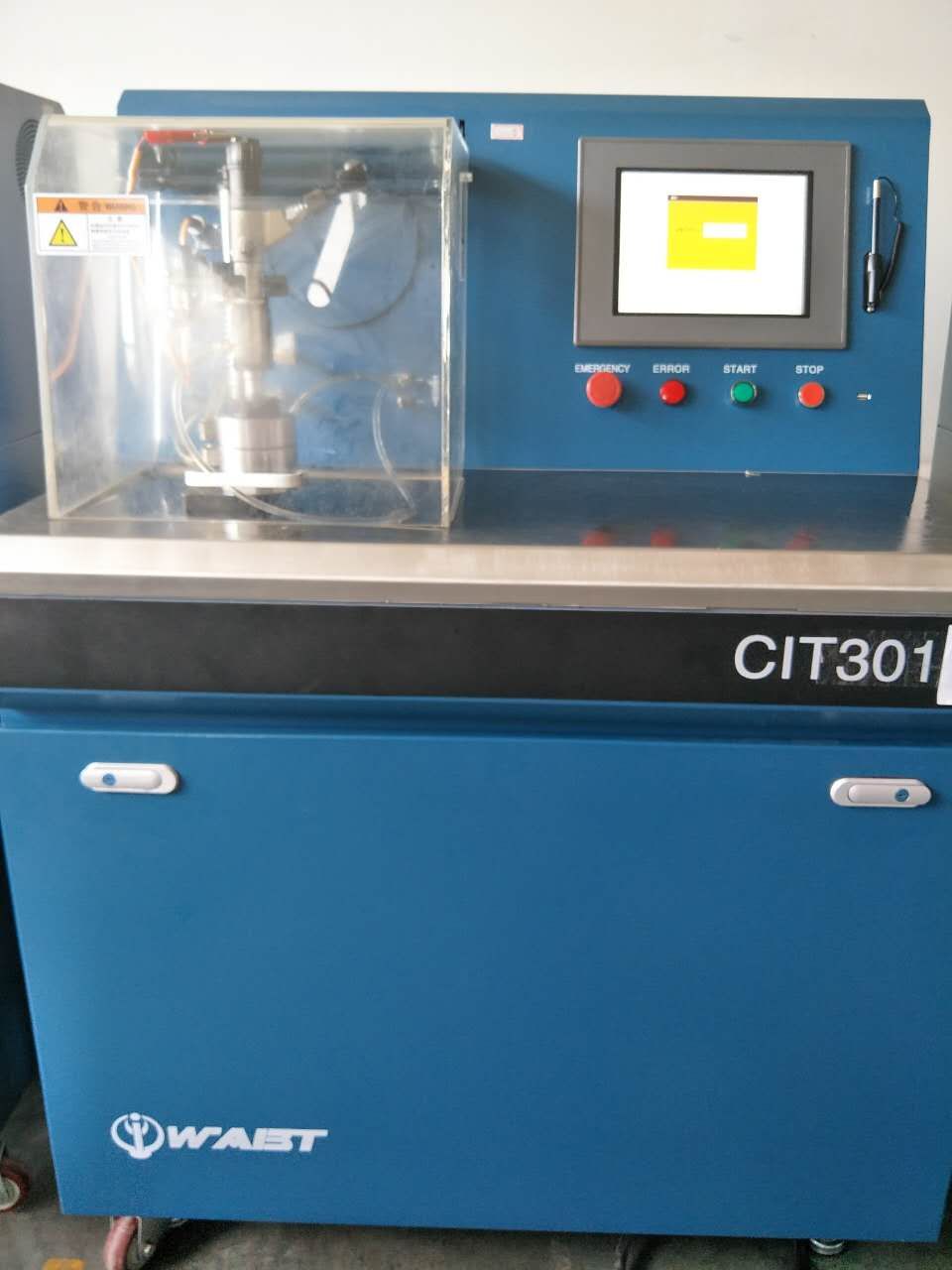

Cr Injector Test Bench

Power: Electronic
Usage: Auto Testing Machine
Color: Dark Blue or on request
Temperature range: 30-50ºC
Motor power: 4Kw
Weight: 300KG

Main functions:
1. Test common rail injectors of BOSCH, DELPHI, DENSO, CAT, CUMMINS, PIEZO
2. Check the sealing of CR injectors
3. Check the backflow and the injection volume under full-loaded status
4. Test the injection volume at the emission point
5. Test the flow volume of idling status
6. Test the pre-injected volume of the CR injectors
7. Clean the injectors while testing
8. Testing data could be saved and printed
9. Standard parameters settable
10. Determine the injectors are good or bad automatically

Main technical specifications:
1. Motor power: 4Kw
2. Ambient temperature for measurement accuracy: 10ºC-35ºC
3. Variable frequency motor speed range: 0-3000rpm
4. Pressure control range: 10-2400bar
5. Pressure control accuracy: ±1bar
6. Metering range of the flow meter: 0.1ml-2000ml/1000 times
7. Fuel tank capacity: 30L
8. Filter accuracy: 5µm

Competitive Advantage:
High Quality
Reasonable Price
Good after Service
More Than 8 Years Experience
NEW DESIGN
EASY TO MAINTAIN
High-precision flow meter
