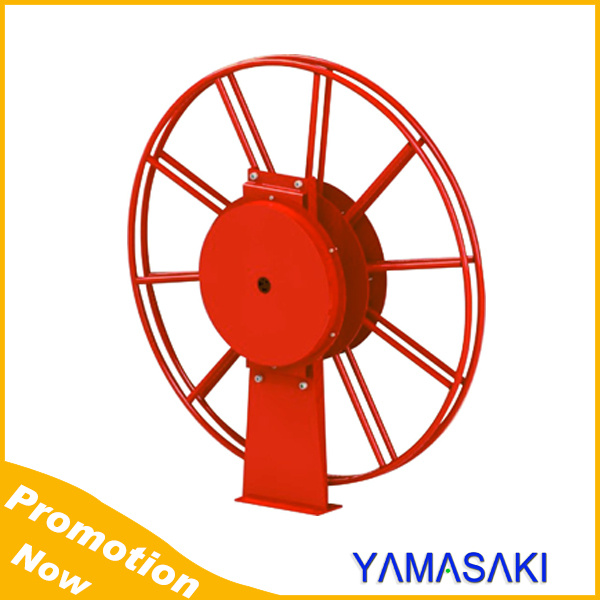

Construction Machinery Hose Reels (Series 1200)

Name: Construction Machinery Hose Reels (Series 1200)
Brand: ibuyautoparts.com
SKU: 765711655
Availability: InStock
Rating: 4.6 (110 reviews)

Price:	US $ 255-300/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Features of reel
Series 1200 reel, is a selective hydraulic power transmission products
and more winding path, specifically for construction machinery and equipment
associated with the vehicle design and manufacturing aspects of the application
requirements. Hydraulic hose on a reel single strand wound recovery is power,
will not cause wound, so security system stable operation.

Fluid path 1 ", 1 1/4", 1 1/2 "
The Specifications:

No.	1200 (mm)	S1200 (mm)	DH1200 (mm)	DHS1200 (mm)
A	1116	1116	1116	1116
B	286	286	413	413
C	112	112	130	130
D	18	18	18	18

Appilication	Pressure Mpa(psi)	Hose inner dia. mm (In)	Hose length m (ft)	Reel inlet	Reek outlet	Pin No. (Bottom mounting)	Pin No. (Side mounting)
Oil/Water	25(3625)	16(5/8)	20(65)	M27×1.5	M27×1.5	1200250500	S1200080500
Oil/Water	8(1160)	19(3/4)	25(82)	M30×1.5	M30×1.5	1200080600	S1200080600
Oil/Water	8(1160)	25(1)	19(62)	M36×2	M36×2	1200080700	S1200080700
Oil/Water	6(870)	32(1 1/4)	17(55)	M42×2	M42×2	1200060800	S1200060800
Oil/Water	5(730)	38(1 1/2)	12(40)	M52×2	M52×2	1200050900	S1200050900
Oil/Water	4(580)	50(2)	10(33)	M64×2	M64×2	1200041000	S1200041000
Hydraulic oil	14(2030)	12(1/2)	28(92)	M22×1.5	M22×1.5	DH1200140400	DHS1200140400
Hydraulic oil	8(1160)	19(3/4)	25(82)	M27×1.5	M27×1.5	DH1200080600	DHS1200080600
Hydraulic oil	25(3625)	16(5/8)	20(65)	M27×1.5	M27×1.5	DH1200250500	DHS1200080500

Prod Model:	Series 1200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Drive Type:	Spring
Spring Brand:	Kern-Liebers
Construction:	All Bolted Unitized
Mounting:	Floor, Wall, Bench, Truck
Inlets:	1/4", 5/16", 3/8", 1/2",3/4",1"
Material:	3.0mm Cold Steel
Surface Finish:	Powder Coated
Color:	Red
