1. PRODUCT DESCRIPTION
1. Structure
2. Connecting rod bearingMaterial: high tin alloys and common. You can choose as you like.Size: 0.00 0.25 0.5 0.75 .Brand: S,ZS, ZH,CF,WL, EM, L,CT, JD,SF, R, YN ETC...Model: 175,180,185,195,1110,1105,1115,1120,1125,1130 and so on. It has 2 pieces, up kind and down kind, don't mix them when install. Also pay attention to the edging of the connecting rod bearing. Package 1 set/box or 1set/plastic3. Connecting rod bushMaterial: brass/brass alloy, corrosion-resistant, werable, oxidation resiting. Quality has good and common, you can choose as you like.

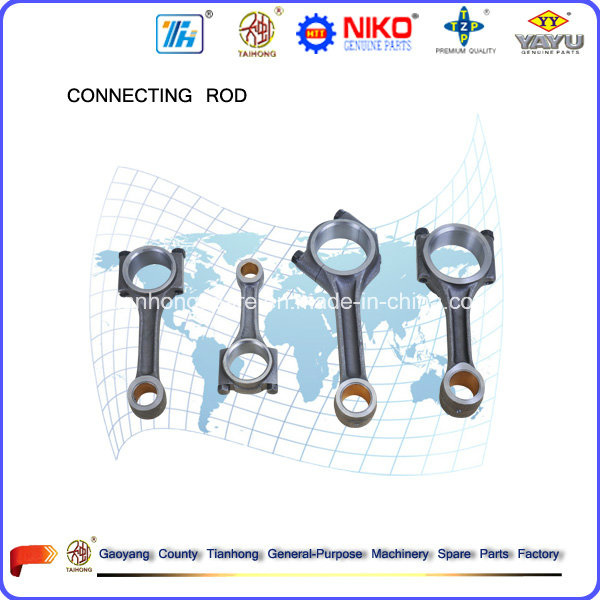

Package: 10pcs/box or 10pcs/plastic or as you need. 4. Connecting rod

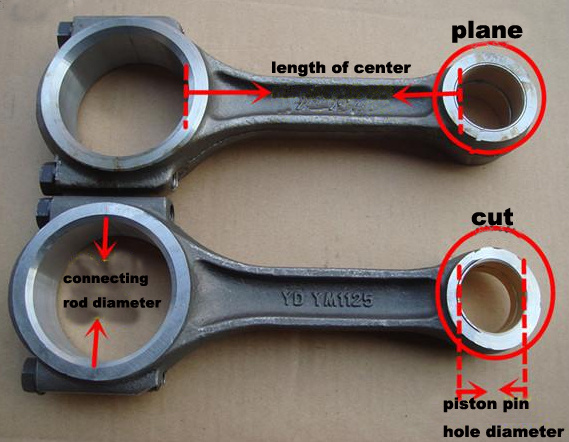

| Model | Piston pin hole
diameter /MM | Connecting rod bearing
diameter /MM | Length of
center/MM | weight
KG | Flat type
/cut type |
| R165/R170A | 19 | 39 | 71 | 0.45 | flat |
| R176 | 20 | 41 | 70 | 0.4 | cut |
| R175 | 23 | 49 | 94 | 0.75 | flat |
| R185 | 28 | 56 | 126 | 1.25 | flat |
| 170F | 19 | 33 | 65 | 0.4 | flat |
| 178F | 21 | 39 | 72 | 0.45 | flat |
| 186F/FA | 23 | 43 | 85 | 0.55 | flat |
| 188F | 23 | 43 | 83 | 0.55 | flat |
| S195/S1100 | 35 | 70 | 158 | 1.85 | flat |
| S1110/S1115 | 36 | 72 | 131 | 1.95 | flat |
| L24 | 36 | 72 | 132 | 1.9 | cut |
| L28/L32 | 36 | 74 | 130 | 2.1 | cut |
| YM32 | 38 | 74 | 149 | 2.4 | cut |
| CT1125 | 38 | 74 | 149 | 2.45 | flat |
| CF1125 37 | 37 | 72 | 156.5 | 1.75 | cut |
| ZH1125 | 36 | 74 | 130 | 1.9 | cut |
| SF1105 | 35 | 72 | 156.5 | 1.75 | flat |
| CF25/CF1118 | 36 | 74 | 130 | 1.9 | cut |
| KM130 | 36 | 74 | 130 | 1.9 | flat |
| EH36 | 36 | 69 | 132.5 | 2.05 | cut |
Brand: S,ZS, ZH,CF,WL, EM, L,CT, JD,SF, R, YN ETC...Model: 175,180,185,195,1110,1105,1115,1120,1125,1130 and so on. Package: 1 pair/box2. OTHER PRODUCT:
A: Name
Crankshaft,Camshaft,Start shaft,Governor shaft, Balancing shaft
Water drain cock
Bore assembly( cylinder liner, water seal ring, piston, piston ring, pinston pin, circlip)
Belt pulley
Cylinder block,Cylinder head, Cylinder head gasket
Cylinder head cover with decompression assembly
Rocker arm assembly
Valve sets

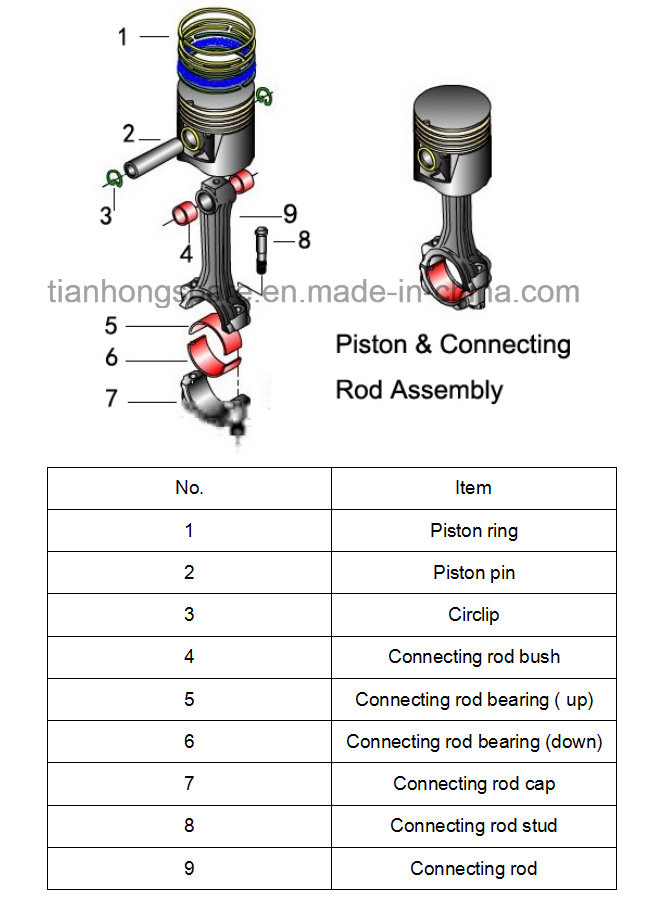

Diesel engine connecting rod assembly
Diesel engine starter handle
Fuel injection pump assembly
Fuel pump assembly
Gears,Filter,Fuel tank,pipes, bushes
Main bearing housing,Gear casing
Governor ball spacer, Governor ball race, Dipstick
Water pump
Rear cover, Oil indicator assembly
Main bearing
Oil strainer assembly, Air breather
Fuel tank screen, Oil strainer screen
Oil pump assembly
Hopper, Hopper cover with pipe
Fly wheel, Engine block
B: Model
Single cylinder | JD | 018,33,38,108,118,148,1105,1108,1110,1115,1118,1125,1130,1133. |
KM | 130,138,160,173,186. |
CF | 22,25,118,139,195,1100,1105,1110,1115,1125,1130. |
L | 18,22,24,26,28,32. |
EM | 170,175,180,185,190. |
S | 195,1100,1115,1125. |
R | 170,170A,175A,,180,180A,185,190,195,1115. |
ZH | 1105,1110,1115,1120,1125,1130. |
LD | 24,28,32,130,138,160,173,176,186,1105,1110,1115. |
ZS | 195,1100,1105,1110,1115,1120,1125,1130. |
SF | 24,148,176,178,188,1105,1115. |
| WL | 195, 1100,1105,1110,1115,1120,1125,1130 |
| X | 195 |
SD | 1100,1105,1110,1115. |
Multi-cylinder | | SF-12,DF-12,GN-12,295,2100etc |
3. COMPANY PROFILE:
Our company is established in 1996 and located in China's largest base of diesel engine parts. We're a major agency by agreement for CYPR FYAN HB XINYA SUZHONG HEYANG ect.
The company has been exporting these diesel engine parts to India Vietnam Indonesia Burma ect. In African countries' market we gain the good reputation for good quality/ price and best service.
We also export other agricultural machine like Disk Mill, Meat Mincer, Oil Expeller, Rice Mill and related spare parts.
If any question about the product or cooperation, contact us with no hesitation. Welcome your inquiry and visit !
4. OUR ENGINE BRAND:
Changchai,
Changfa,
Jianghuai,
Sifang,
Wuling,
Yunei,
Jiangdong,
Laidong,
Wujin,
Taian,
Yangma,
AMEC,
Emei,
Quanjiao
5. WHY CHOOSE US?
1. Professional support over many kinds of engines in Price, Quality and Customer requirements.
2. Can offer more complete engine spare parts than others.
3.Offer the price quicker than other.
4. Can offer competitive price, which lower than the customer get from the factory directly.
5. Various packing options and the ability to develop new models according to customers' requirements.
6. If customers need side-line range of product, we also can help you export if we can.
6. CONTACT US:
Contact:Sarah Huang
Phone : 86-18233353898
Web : www.tianhongjx.com
Tianhong Machinery Export
Pangkou, Gaoyang, Hebei Province, China
Gaoyang County Tian Hong General-Purpose Machinery Spare Parts Factory was established in 1996. It integrates the R&D, production and sale of rocker arm assy and starting handle. The taihong brand rocker arm assy is famous is south Asia and Africa market.
We establish our exported departement in 2004. Specially exported all single cylinder diesel engines spare parts, diesel engine. Model R175A S195 S1100 ZS1105 S1110 S1115 ZH1105 ZH1100 ZH1115. CF1125 CF1130 JD300 L28 L32 GN12 and so on. We also exported some agricultral machine, such as disk mill.,
Model FFC 15 FFC23 FFC37 FFC45, meat mincer oil expeller ect
Our company located in the biggest diesel engine spare parts base. We ensure the competitve price on the good quality. We also have a good cooperation of China famous spare parts factory, such as the CYPR FAYN piston ring factory.
The HB XINYA nozzle factory and other big factory who supply spare parts for famouse diesel engine factory. During a few years developing, we come into
Our own managment mode...
Our group is responsible for customers. Pay good attation on every order. Our carfully work is approved by our customers. Relay on our experience and machinery spare parts knowleage. We alreay sign long-stable s/c with so many importer who from Myanmar., Vietnam, srilanka, India, Bangladesh. Africa country such as Sudan, Kenya, Nigeria and so on.
Welcome to cooperate with us, we belive our group will be win-win cooperation
