Compression Driver Unit 1 Inch Speaker Box Components

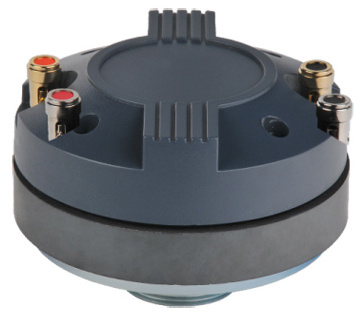

Name: Compression Driver Unit 1 Inch Speaker Box Components
Brand: ibuyautoparts.com
SKU: 822993275
Availability: InStock
Rating: 4.6 (89 reviews)

Price:	US $ 1-2/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Specifications : ZRTD-T3

Throat Diameter: 1 in (25mm)
Mounting Type: Screw on 1 3/8 ″ or Bolt-on
Nominal Impedance: 8 Ohm
Power Capacity: 30Watts RMS
Sensitivity(1W/1M): 105dB

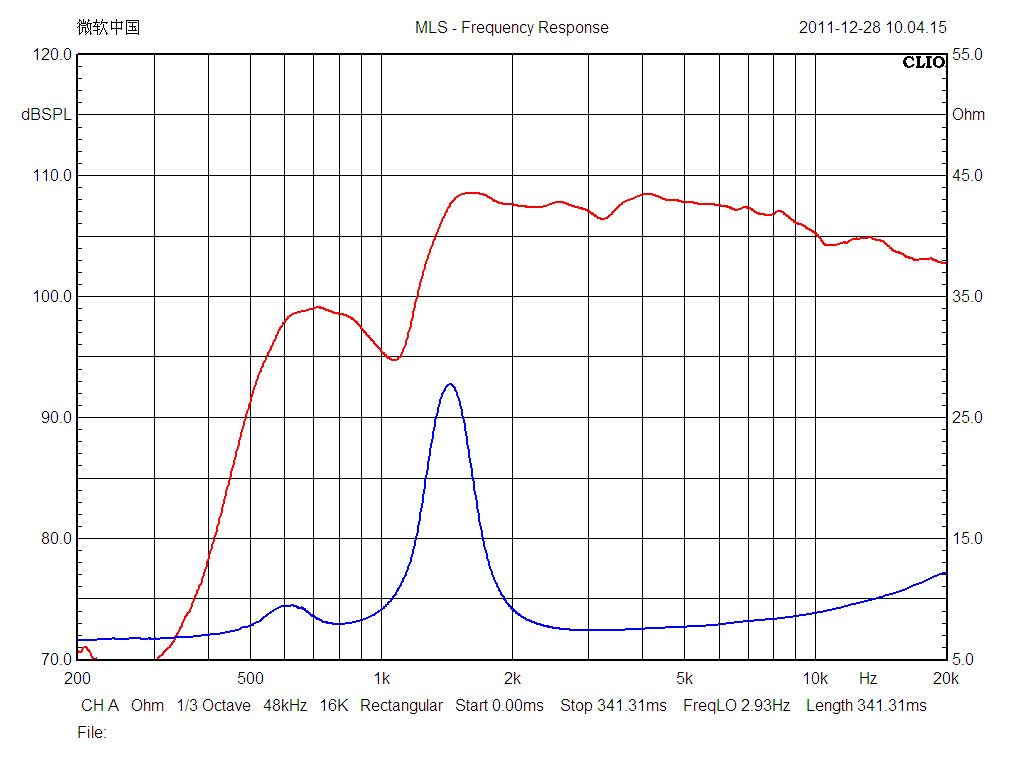

Frequency Range: 1.2KHz-20KHz
Diaphragm Material: Titanium
Voice Coil Diameter 1.35 in(34.4mm)
Voice Coil Material Round Aluminium Wire
Voice coil Former Kapton
Flux Density: 1.4T
Magnet: Strontium Ferrite

Packing Details:

Overall Diameter × Depth: ф90mm (3.54in) ×62.5mm (2.46in)
Net Weight: 0.93Kg
Pcs/CTN: 12pcs
Carton Size: 30×21×16cm

Prod Model:	ZRTD-T3
Type:	Speaker
Speaker Design:	Tweeter
Shape:	Spiral
Material:	Aluminum
Sound Frequency:	High Pitch
Voltage:	24V
Connection Mode:	Double Wire
Current:	3A
Contact Point:	With Contact Point
Energy Exchanging Mechanism:	Electrical

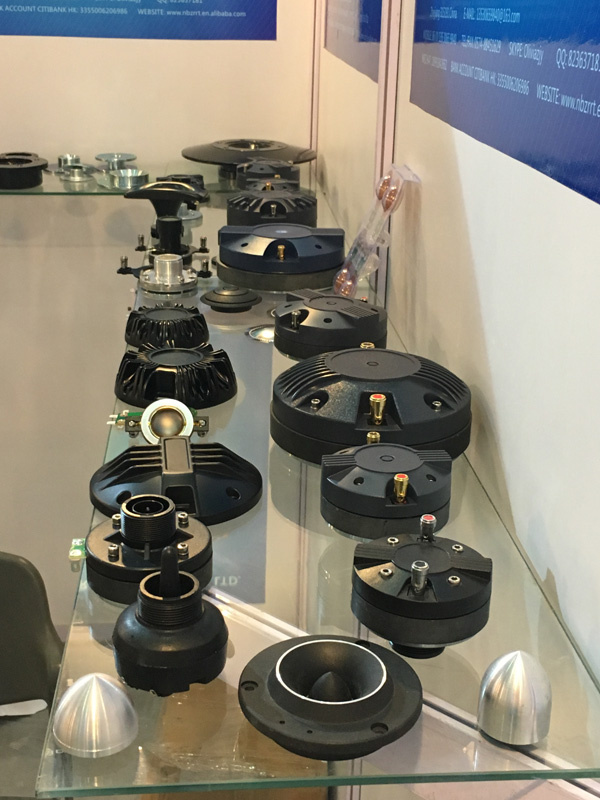

Ningbo Rongtor Electronics Co., Ltd., located in Ningbo, port city in Zhejiang and established in 2012 (previously ZR Factory), is a reliable professional speaker driver unit manufacturer.

Our factory have development department, production department, processing department and marketing department.

Our factory have the Uniter States LMS systems, test equipment and follow strict quality control of computer products, quality assurance.

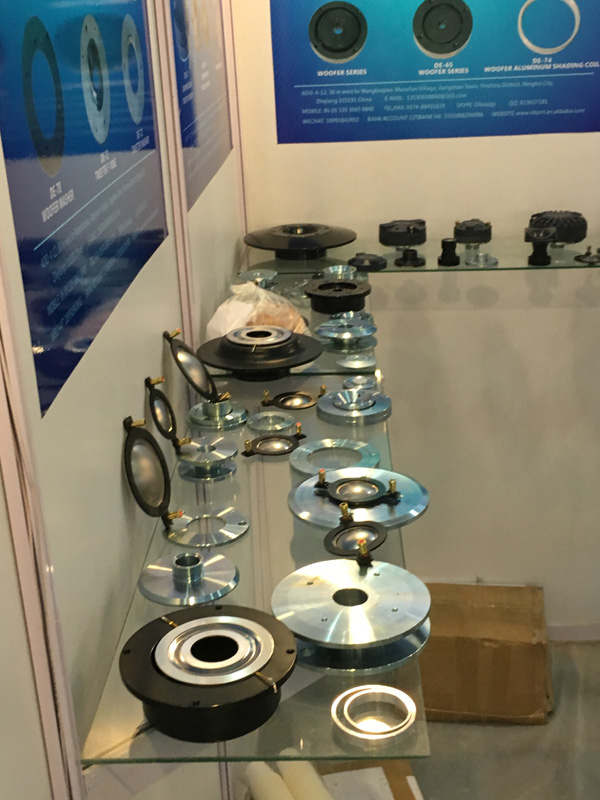

Our product mix includes: Tweeter, PA SPEAKER. SUBWOOFER. Diaphragm parts, T-yoke, U-yoke, washer, CNC series, etc.

Rongtor can offer OEM/ODM services per customer needs. Our lead time is usually 20-45 days after receiving order.

Rongtor has built a team of experienced designers, NC technicians and managing personnel. It is striving for fine and zero-defect products to ensure constant quality services.
