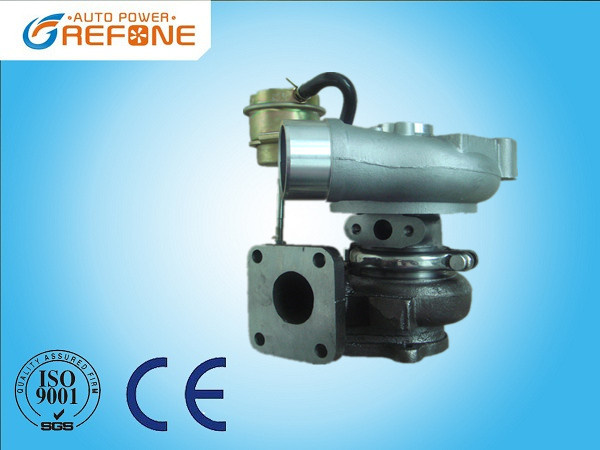

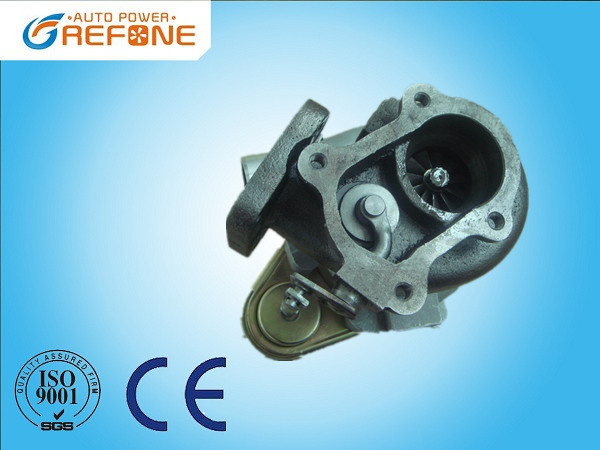

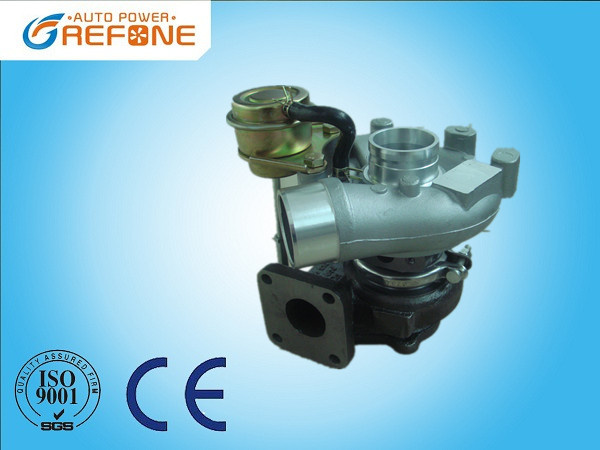

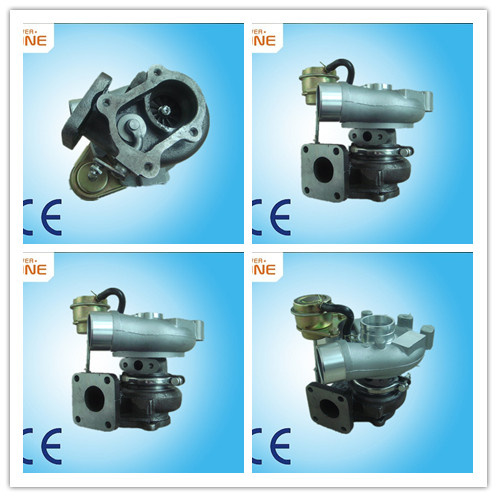

Commercial Vehicle TF035HM Turbo 49135-05010 53149886445 Diesel Turbocharger For Iveco Daily II 2.8L Engine 8140 Product Description
| Part Number | 49135-05010 |
| Previous Part Number | 4913505010, 53149886445 |
| OE number | 99450704, 7701044612, 99466793 |
| Description | Commercial Fiat Iveco Daily II, Renault Master, Opel/Vauxhall Movano |
| Engine Code | 8140.43.3700 |
| Manufacturer Part Number | 49135-05010 |
| CHRA | 49135-08100 (49135-08101) |
| Turbo Model | TD04, TF035HM-13T-6 |
| Engine | 8140.23.3700, 8140, S9Q700/702 |
| Displacement | 2.8L, 2798 ccm, 4 Cylinders |
| KW | 90/122 |
| RPM Max | 3500 |
| Fuel | Diesel |
| Bearing Housing | 49177-25420 (Oil Cooled) |
| Turbine Wheel | 49135-30100 |
| Comp. Wheel | 49135-00015 |
| Back plate | 49135-00044 |
| Heat shield Number | 49170-19100 |
| Repair Kit | 49135-TFO35 |
| Turbine Housing | 49135-15000 |
| Compressor Cover | 49135-00080 |
| Turbine Housing AR | 6.0 |
| Settings Wastegate (pressure) | 1.160/1.300 bar |
| Settings Wastegate (lift shaft) | 1.00/5.00 mm |
| Actuator | 49135-18884 |
| Gasket (turbine inlet) | 210338 |
| Gasket (turbine outlet) | 210350 |
| Gasket (oil outlet) | 210243 |
| NOTE | Intercooler |
| Replaced By | 53149886445 |
Applications
1996-99 Iveco Daily II 2.8L Engine 8140
Company Description
Refone is a group company which engaged in turbocharger and turbo parts manufacturing and exporting.
Our teams are excellent technical engineers and experienced sales. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly.
We are looking forward to build long business relationship with worldwide friends.
Why choose us
1) The products have passed the balancing test and the high speed GHRA balancing test
2) We usually have some products in stock, in case of the clients purchase urgently. And if the order is minimal, we can also Delivery the goods on time.
3) The clients can have their own forwarders to ship the products to the destination
4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and durable
5) We have our own factory to manufacture. That can control the quality during the procedure of making the goods. Besides the price is at factory price, competitive
Our Advantage
1. Quality Warranty: 1 Year
2. High speed balancing tested.
3. Produce turbo as customer's requirment.
Our After-sale Service
1. Take photos, sending back for testing
2. Send new turbo to customer
Welcome to inquire! We will feedback within 24 hours!
Contact us
Vorina zhu
Tel: 86055165617152
Fax: 86055165613152
Mobile: 8618133658728
| TD04HL | 49189-01800 | 1999-05 Saab 9-3, 9-5 Aero, Viggen with B253R Engine |
| TD04HL | 49189-01350 | 1997- Volvo 850, C70 with N2P23HT Engine |
| TD04H | 49189-01355 | 97-98 Volvo S70 - V70 - 850 Car with B5234FT Engine |
| TDO4 | 49189-05200 | 1999- Volvo X-Country, V70, XC 70, S80, XC 90 with N2P25LT Engine |
| TD04HL | 49189-05400/01/10/11 | 1999- Volvo C70 2.3 T5 Engine B5234
1999- Volvo S70 2.3 T5 Engine B5234
1999- Volvo XC70 2.3 T5 Engine B5234
1999- Volvo V70 2.3 T5 Engine B5234 |
| TD04HL-13T-6 | 49189-02912, 49189-02911 | 04- UP Iveco DAILY 3.0 16V Commercial with F1C Euro 3 Engine |
| TD04 | 49377-06213 | 2003-2009 Volvo XC70 2.5L T Engine B5254T2
2003-2009 Volvo XC90 2.5L T Engine B5254T2 |
| TD04 | 49177-01501 | 1992-1996 Mitsubishi L 200 2.5L TD 4WD (K_4T) Engine 4D56 (Turbo)
92-96 Mitsubishi Shogun
1988-1996 Mitsubishi L 300 2.5L TD 4WD (P25W,P25V) Engine 4D56 (Turbo) |
| TD04 | 49177-01510 | 1992-96 Mitsubishi L 200 2,5L TD 4WD (K_4T) with 4D56 Engine
1988-96 Mitsubishi L 300 2,5L TD 4WD (P25W,P25V) with 4D56 Engine
1986-89 Mitsubishi Pajero I 2.5L TD with 4D56 Engine
1989-90 Mitsubishi Pajero I 2.5 TD with 4D56 Engine
1990-91 Mitsubishi Pajero II 2.5 TD with 4D56 Engine |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
