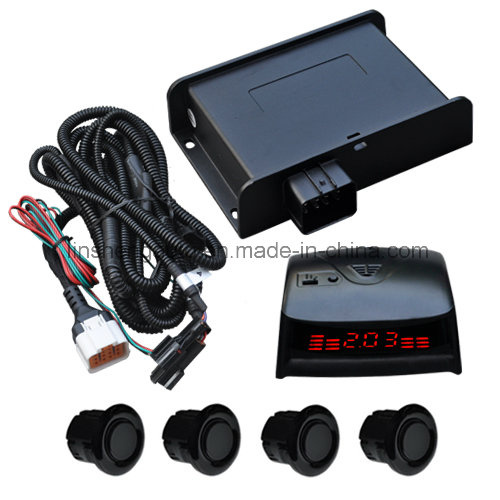

Commercial/Truck Wireless Parking Sensors with LED Display

Name: Commercial/Truck Wireless Parking Sensors with LED Display
Brand: ibuyautoparts.com
SKU: 812209655
Availability: InStock
Rating: 4.9 (99 reviews)

Price:	Negotiable/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Specifications:

Sensor type:	digital sensor
Sensor frequency:	40kHz
Sensor quality:	4pcs
Measurement range(wall):	4.0m
Measurement range:	2.0+/-0.2(m) (75mm PVC pipe)
Working voltage:	10.5-32.0(VDC)
Rated voltage:	12/24V DC
ECU rated current:	200mA max.
Display rated current:	200mA max.
Working temperature:	-30-80°C
Storage temperature:	-40-85°C

ECU specification:

Normal voltage:	12V DC/24V DC
Operation voltage:	10.5-32.0V DC
Rated current:	≤60mA at 24V DC
Operation frequency:	40+/-1kHz
Housing material:	metal
Housing color:	black
Operating temperature:	-30°C-80°C
Storage temperature:	-40°C-85°C
IP code:	IP65

Feature:

CAN-power technology transmission; against any surrounding interference, stable working complete.
Automatically activated the drawbar trailer sensor without driver input.
One LED can be working with different tailors ECUs sensors, can be shifted to automatically.
9-28V DC wide voltage suit for all trucks, 3-year warranty.

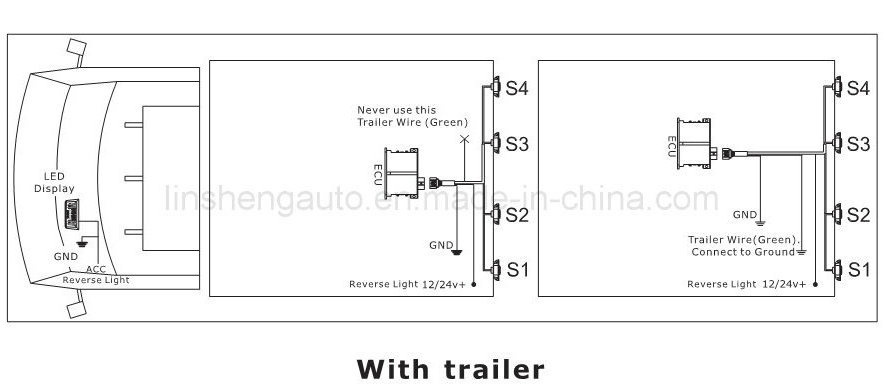

When drawbar trailer is connected the trucks rear sensors are automatically deactivated and the trailer sensors activated.
When the drawbar trailer is detached the trucks rear sensors are automatically re-activated.
VANs, SUVs, pick-ups, MPVs, heavy duty trucks, buses, commercial vehicles and more parking sensors system.

Prod Model:	LS-WCVPS-led
Customized:	Yes
OEM:	Yes
ODM:	Yes
Fucntion Anti-Interference:	High Anti-Interference
Voltage:	12VDC and 24VDC Compatible
Kind:	Obstacle Detection Radar
Certification:	RoHS
Working Principle:	Frequency Modulated Continuous Wave
Operating Temperature Range:	-20??C~+80??C
Test Distance:	0.2~4.0 Meters
Warning Type:	LED+Audio
Technich Type:	Powerline
Installation Method:	Open-Hole or Hungup
Brand:	Linsheng Auto

Located at Guangzhou city south of China, LINSHENG INTERNATIONAL ENTERPRISE Co., Ltd specialized in automobile Safety and Security Systems and Accessories electronics with decade rich of experience.

Mainly of our products are Pickups Tonneau Cover Remote Control System, Wheelchair Platform Remote Control System, Commercial Vehicles Parking Sensors(wired and wireless), and Trucks Power Window Kits and Central Locking. Manufactured under strict quality control measures, products with CE, FCC certified by SGS; Which are ready for Europe, USA, Canada and Australia developed countries.

We can provide customized design and molding support, our R&D department 16 engineers team always standing by for your OEM and ODM projects. Addtionally, both software and hardware technicians always working in the meanwhile will speed up your projects finished and perfected in a shorter time.

To work with a qualified and reliable supplier, please do contact us today!
