| Prod Model: |
LTC45/1960-3J |
| Max Lifting Height: |
1960mm |
| Total Height: |
3672mm |
| Arm Type: |
3 Stages Arm Lock(Semi-Circle) |
| Rise/Drop Time: |
90s/60s |
| Type: |
One Cylinder Hydraulic Lift |
| Lifting Capacity: |
4.5T |
| Certification: |
ISO |
| Design: |
Two Post |
| Brand: |
Gg Lifters |
Product Description

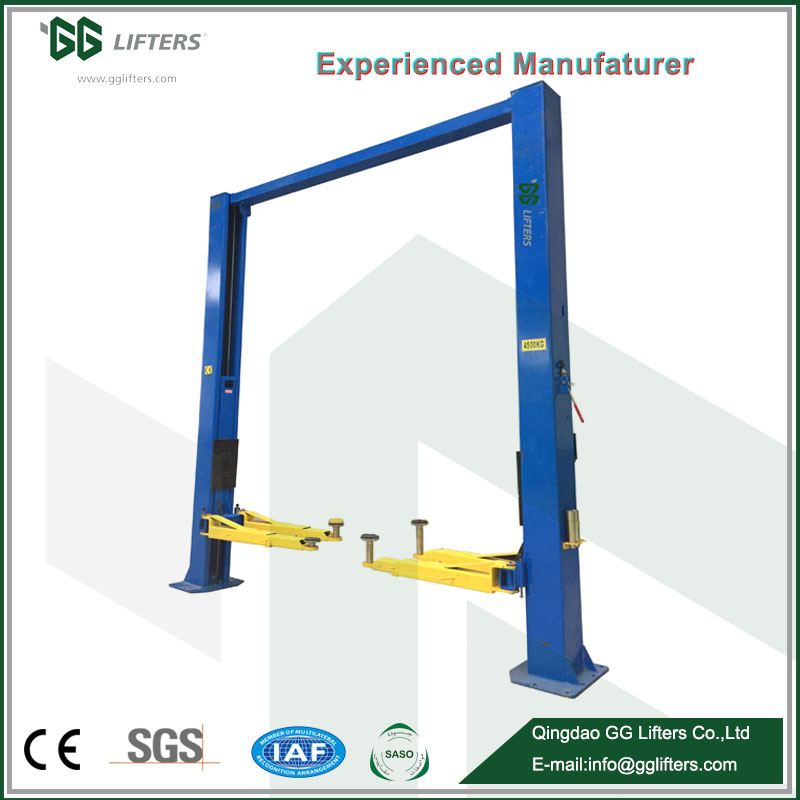

CLEAR FLOOR TWO POST CAR LIFT

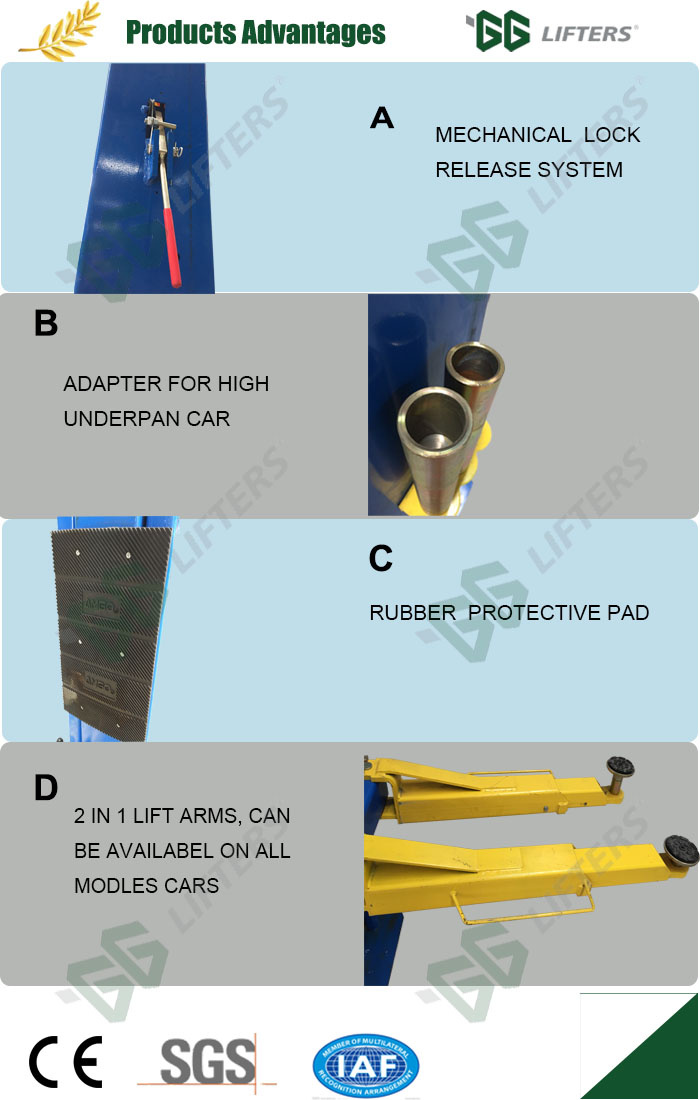

Two post, Dual-cylinder drive , steel rope-balancing system Extra width between two posts without floor plate Automatic safety locks , manual or electric lock release system Limiting displacement bar with limit switch to automatically stop in the highest position 4T to 4.5T lifting capacity Lifting carriages to minimize pressure on the posts Self-lubricating high polymer polyethylene sliding blocks Adjustable height, binodal posts if needed , Large load quantity Asymmetrical design of the arms,30 degrees rotated posts Polished and powder coated posts PARAMETERS
| Model NO. | LTC35/1850-2J | LTC45/1960-3J | LTC50/1960-3J |
| Lifting Capacity | 3500kgs | 4500kgs | 5000kgs |
| Max Lifting Height | 1850mm | 1960mm | 1960mm |
| Total Height: | 3672mm | 3672mm | 3672mm |
| Arm Type: | 2 Stages | 3 Stages | 3 Stages |
| Arm lock(semi-circle) | Arm lock(semi-circle) | Arm lock(semi-circle) |
| Safety Lock | MANUAL UNLOCK | MANUAL UNLOCK | MANUAL UNLOCK |
| Limit Switch | 1 | 2 | 3 |
| Sliding table or top beam | Sliding table and top beam | Sliding table and top beam |
| Others | Spare parts and install tools box(free) | Spare parts and install tools box(free) | Spare parts and install tools box(free) |
| ANOTHER SAFETY LOCK | ELETRIC UNLOCK WILL ALSO BE AVAILABLE. |
| DOCUMENTS | INSTALLATION MANUAL BOOK, USER BOOK, TROUBLE SHOOTING SHEET |
| TEST BEFORE SHIPPMENT, AND SHOW THE VIDEO TO CUSTOMER WITH SHIPPING LIST |
| Warranty | 2 years for electric parts, 5years for steel frame structure |
| Rise/Drop Time | 90s/60s |
| Power Supply/Motor Capacity | 220v/380v/2.2kw OR according to customer reques |
Frequently Asked Question
Q: Are you a factory?
A: GG LIFTERS invested a factory with an area of 4500 square meters, specializing in the
production of various car lifts and car parking lift.
Q: Could you offer customized products?
A: Yes,of course. We have professional group to design according to your requests.
Q: How do you control your production quality?
A: We have an independent QC team. Our QC teams do sample inspection, part inspection during production and 100% final inspection before each shipment.
Q: Can I have a visit to your company before placing an order?
A: Sure, welcome to visit GG LIFTERS. Our factories locates in NO.537 Binhai industrial Park ,Huangdao district,Qingdao,China.
Q: What kind of support can I get if I am GG LIFTERS's agent?
A: Bottom price, free catalog and gift for marketing, on site training.
Q: May I know the Lead time?
A:Commonly The lead time of our machine is 15 to 30 days.
Q: What is your payment terms?
We accept Alibaba Trade Assurance, TT, LC, etc.
Q: How long is the warranty?
A:Our products enjoy long warranty which is 2 years for electric parts, 5years for steel frame structure.
CONTACTS:
Qingdao GG Lifters Co.,Ltd
- Add:NO.537 Binhai industrial Park ,Huangdao district,Qingdao,China
- Tel:+86 82191966 82190277 82190377
- Mobile:+86 17663916890
Qingdao GG Lifters Co., Ltd, an established Factory in Qingdao, China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking and car service lifts offered to our customers worldwide.

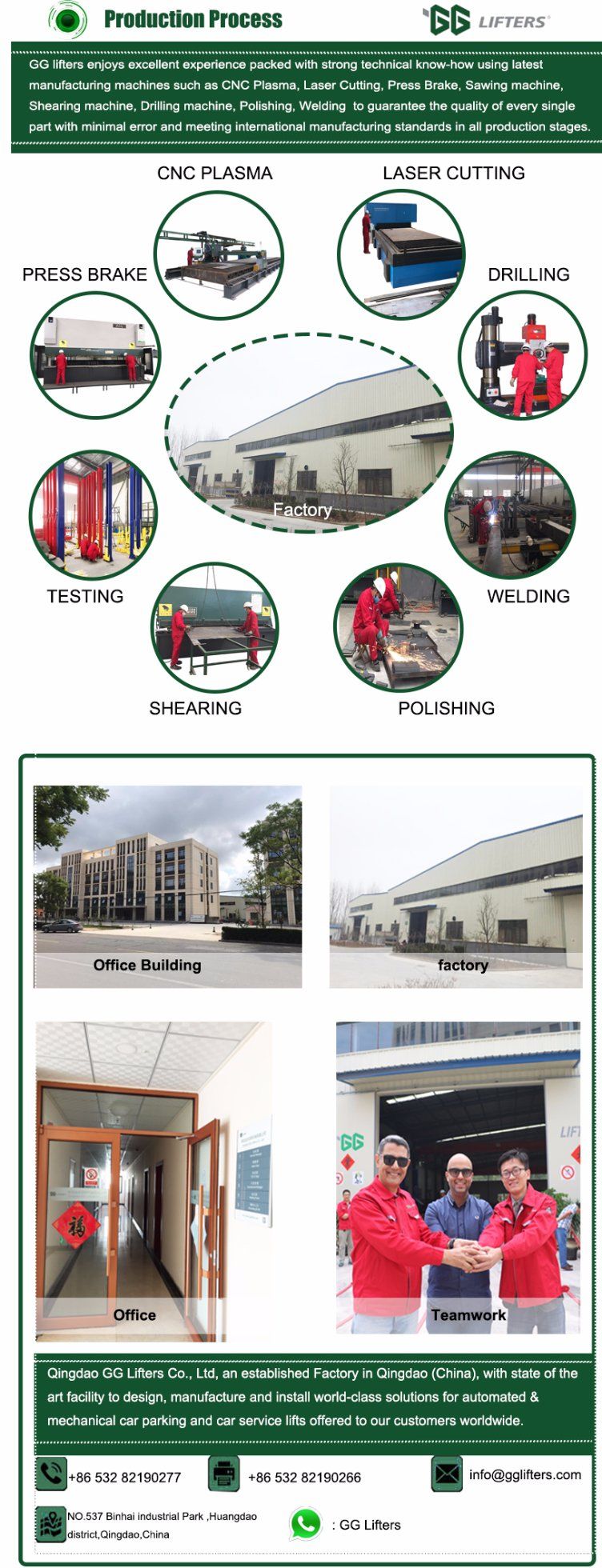

Our competent team in multi languages (English, Chinese, Italian, Arabic, Japanese, etc) is well prepared to anticipate, identify and exceed our customers' expectations. GG Lifters enjoys excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.
GG Lifters through its Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.
