Clear Floor Two Post Car Lift Ltc50/1960-3j

Name: Clear Floor Two Post Car Lift Ltc50/1960-3j
Brand: ibuyautoparts.com
SKU: 728647712
Availability: InStock
Rating: 4.9 (86 reviews)

Price:	US $ 1000-1500/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LTC50/1960-3J
Max Lifting Height:	1960mm
Total Height:	3672mm
Arm Type:	3 Stages Arm Lock(Semi-Circle)
Rise/Drop Time:	90s/60s
Type:	One Cylinder Hydraulic Lift
Lifting Capacity:	≥5T
Certification:	ISO
Design:	Two Post
Brand:	Gg Lifters

Product Description

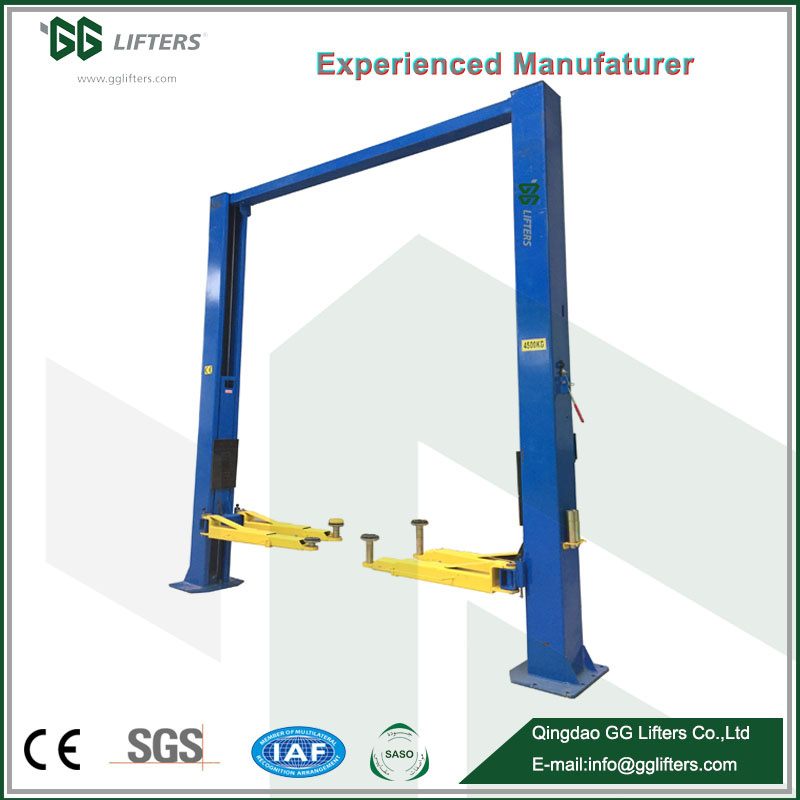

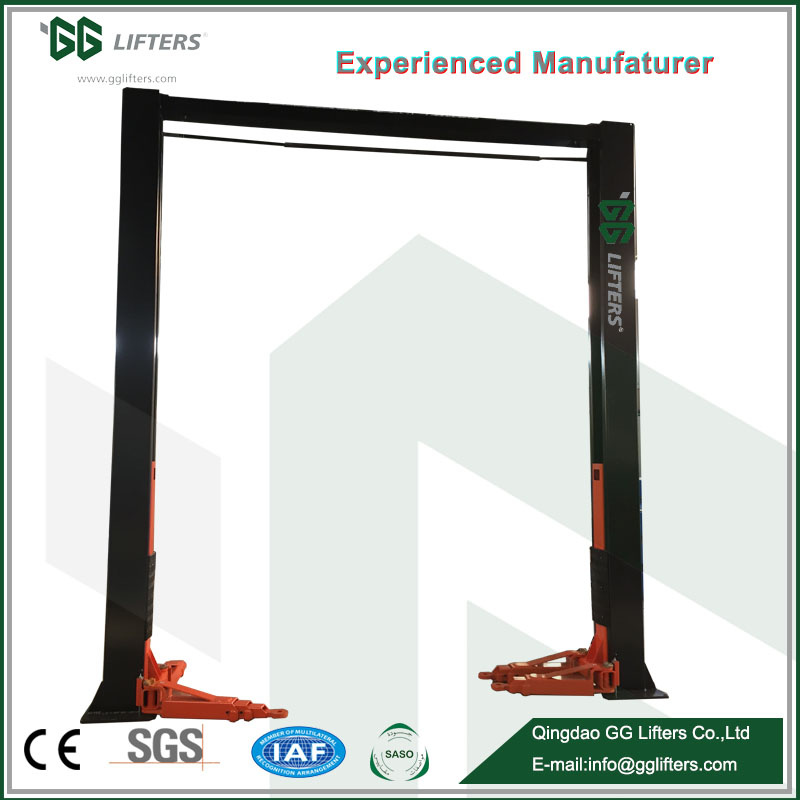

CLEAR FLOOR TWO POST CAR LIFT

Two post, Dual-cylinder drive , steel rope-balancing system

Extra width between two posts without floor plate

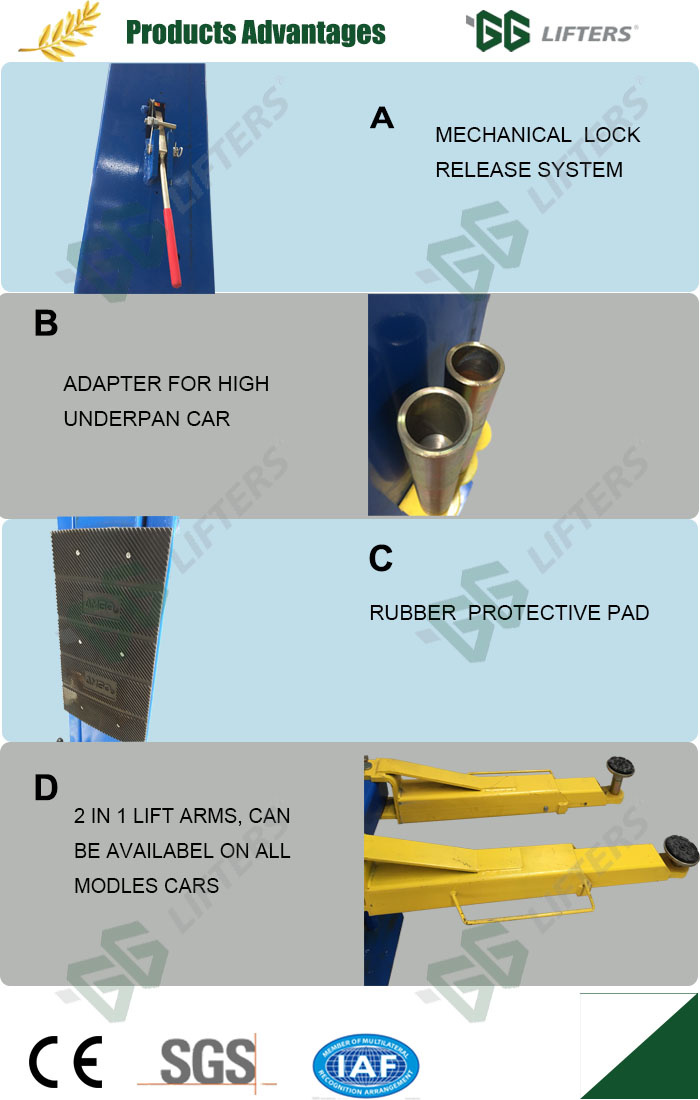

Automatic safety locks , manual or electric lock release system

Limiting displacement bar with limit switch to automatically stop in the highest position 4T to 4.5T lifting capacity

Lifting carriages to minimize pressure on the posts

Self-lubricating high polymer polyethylene sliding blocks

Adjustable height, binodal posts if needed , Large load quantity

Asymmetrical design of the arms,30 degrees rotated posts

Polished and powder coated posts

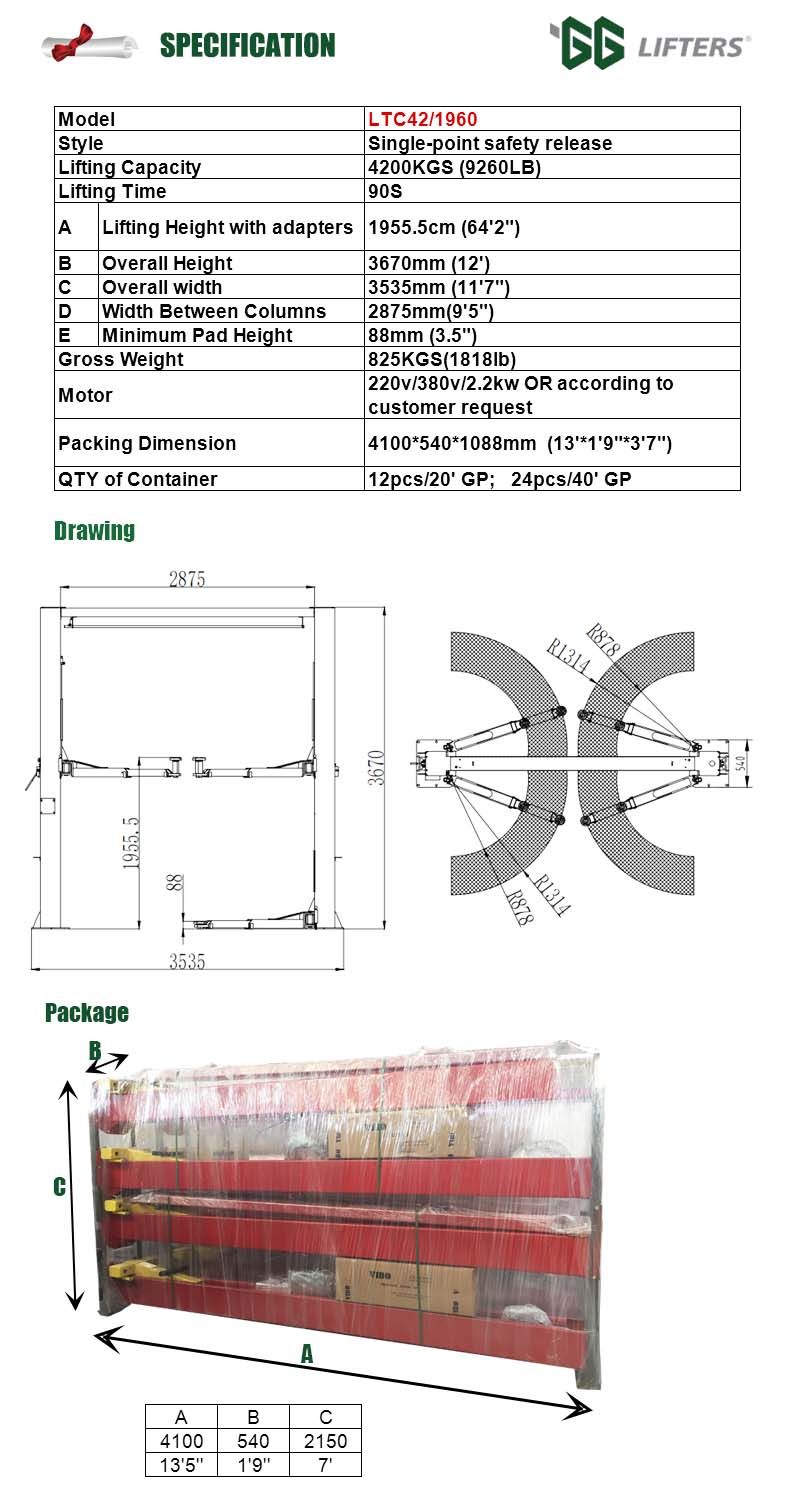

PARAMETERS

Model NO.	LTC35/1850-2J	LTC45/1960-3J	LTC50/1960-3J
Lifting Capacity	3500kgs	4500kgs	5000kgs
Max Lifting Height	1850mm	1960mm	1960mm
Total Height:	3672mm	3672mm	3672mm
Arm Type:	2 Stages	3 Stages	3 Stages
Arm Type:	Arm lock(semi-circle)	Arm lock(semi-circle)	Arm lock(semi-circle)
Safety Lock	MANUAL UNLOCK	MANUAL UNLOCK	MANUAL UNLOCK
Limit Switch	1	2	3
Limit Switch	Sliding table or top beam	Sliding table and top beam	Sliding table and top beam
Others	Spare parts and install tools box(free)	Spare parts and install tools box(free)	Spare parts and install tools box(free)
ANOTHER SAFETY LOCK	ELETRIC UNLOCK WILL ALSO BE AVAILABLE.
DOCUMENTS	INSTALLATION MANUAL BOOK, USER BOOK, TROUBLE SHOOTING SHEET
TEST BEFORE SHIPPMENT, AND SHOW THE VIDEO TO CUSTOMER WITH SHIPPING LIST
Warranty	2 years for electric parts, 5years for steel frame structure
Rise/Drop Time	90s/60s
Power Supply/Motor Capacity	220v/380v/2.2kw OR according to customer reques

Qingdao GG Lifters Co., Ltd, an established Factory in Qingdao, China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking and car service lifts offered to our customers worldwide.

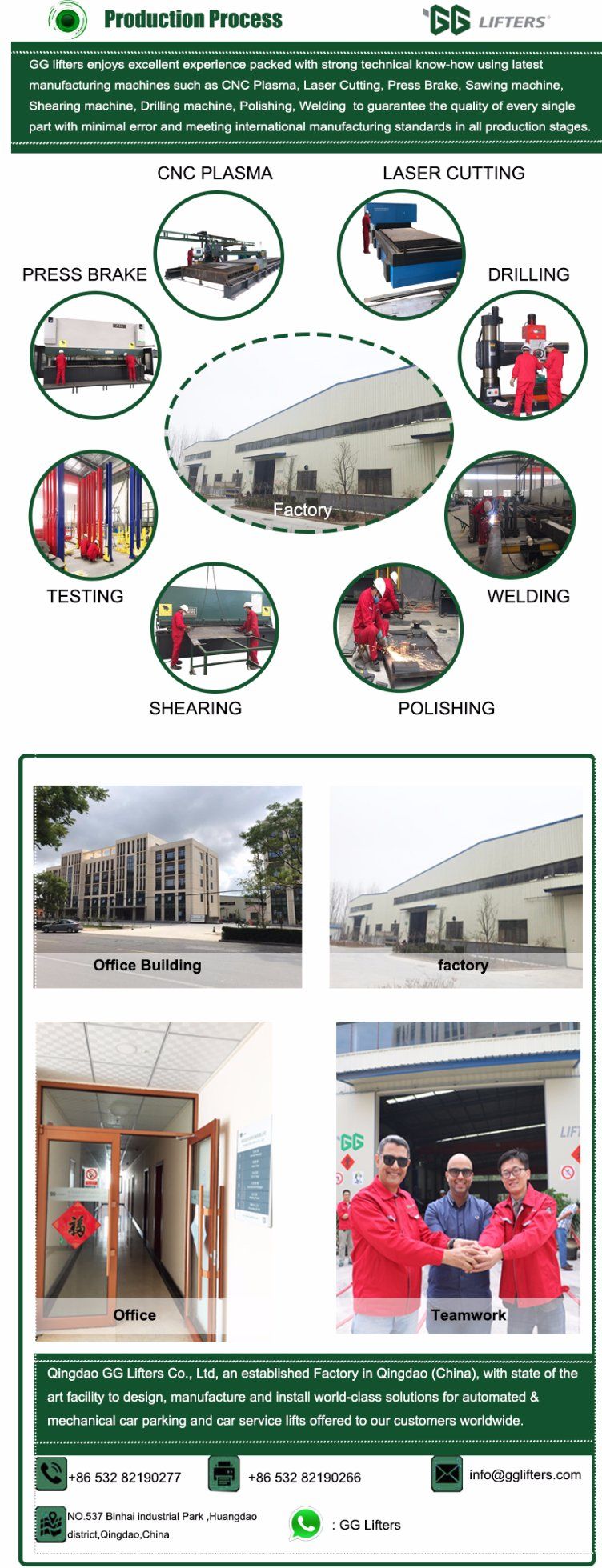

Our competent team in multi languages (English, Chinese, Italian, Arabic, Japanese, etc) is well prepared to anticipate, identify and exceed our customers' expectations. GG Lifters enjoys excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

GG Lifters through its Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.
