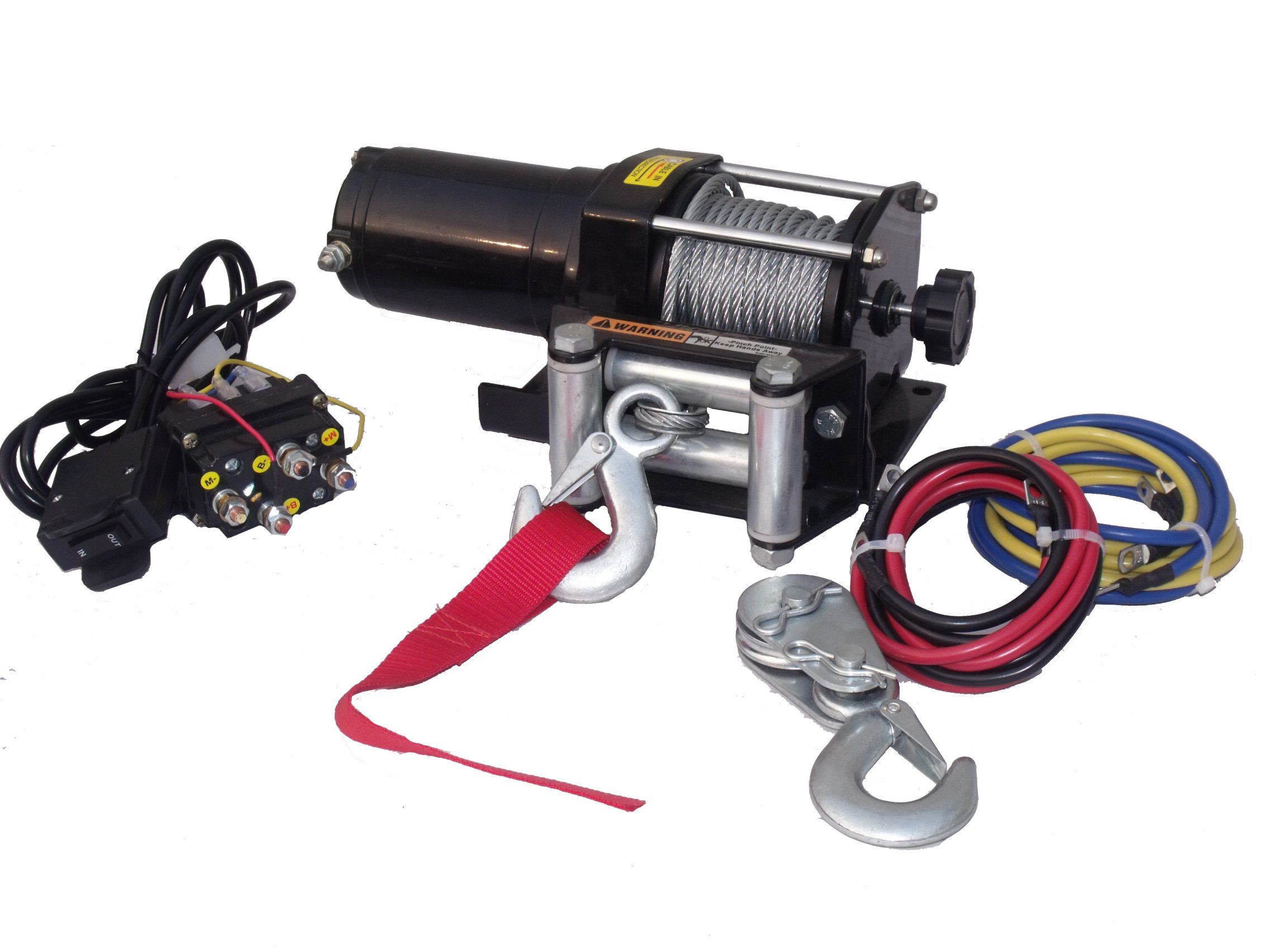

Classic Design Powerful ATV Winch with 3000 Lb Pulling

Name: Classic Design Powerful ATV Winch with 3000 Lb Pulling
Brand: ibuyautoparts.com
SKU: 838530265
Availability: InStock
Rating: 4.3 (125 reviews)

Price:	US $ 43-49PCS
Min Order:	36PCS
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Small size with strong pulling ,Low noise ,low amps ,run evenly , Stable performance ,it's your ideal ATV winch for small ATV , Side x Side . IP67 solenoid with both wired and wireless remote controls .
3000 LBS Features and Specifications :
Part Number : XM-XA808
Pulling rate : single line 3000lbs(1360kg)
Motor: DC 12 V 1.2hp/0.9kw Permanent Magnet
Braking action: Dynamic
Clutch: Sliding ring gear
Gear train : Planetary gear
Gear ratio: 153: 1
Switch: Wire remote control with mini rocker handbar , IP67 separated Solenoid with quick connector
Fairlead: 4-way roller fairlead
Mounting plate and pulley block included
Steel cable: 4.8mm x 12.5 m
Weight: 13.6 lbs
Overall dimension: 11.22" x 4.2" x 4.2" (285mm x 105mm x 105mm) Line Speed And Amp Draw ( First Layer )

Line Pull	lb	NO	1000	2000	3000
Line Pull	kg	LOAD	453	907	1360
Line speed	ft/min	5.28	4.6	3.8	2.97
Line speed	m/min	1.6	1.4	1.15	0.9
Motor current	Amps	14	25	40	68

Line Pull And Cable Capacity

Layer of cable		1	2	3	4
Rated line pull per layer	lb	3000	2422	2090	1805
Rated line pull per layer	kg	1360	1098	948	818
Length of cable on drum	ft	13.8	20.5	30.7	41.7
Length of cable on drum	m	3.5	5.2	7.8	10.6

Prod Model:	XM-XA808
Pulling:	3500 Lb
Durable Cycle:	10000 +
Size:	Compact Design
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Electric Winch Model:	ATV
Certification:	RoHS
Pull Direction:	Forward and Backward
Working Voltage Of Electric Winch:	12 or 24 V

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.
