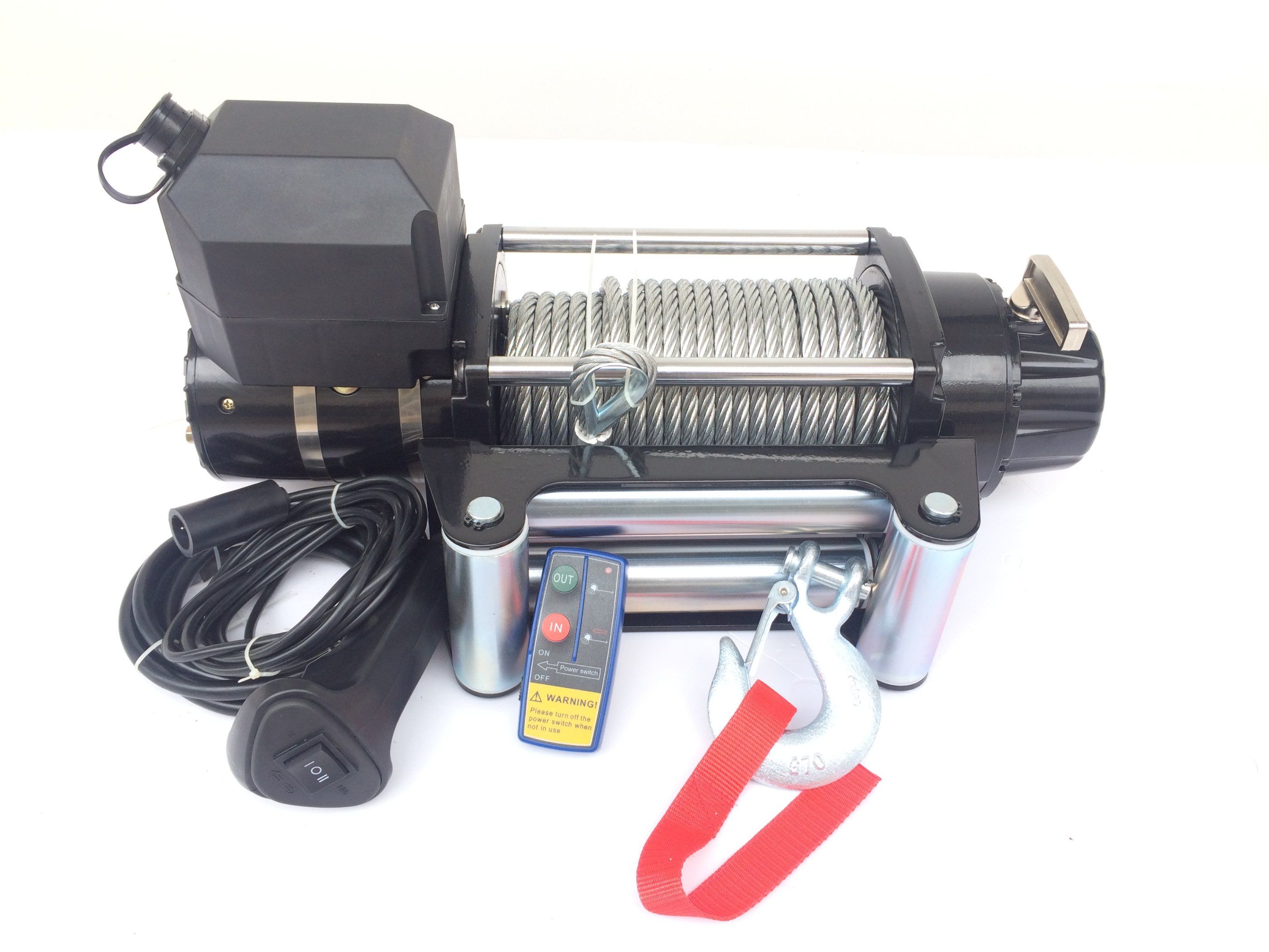

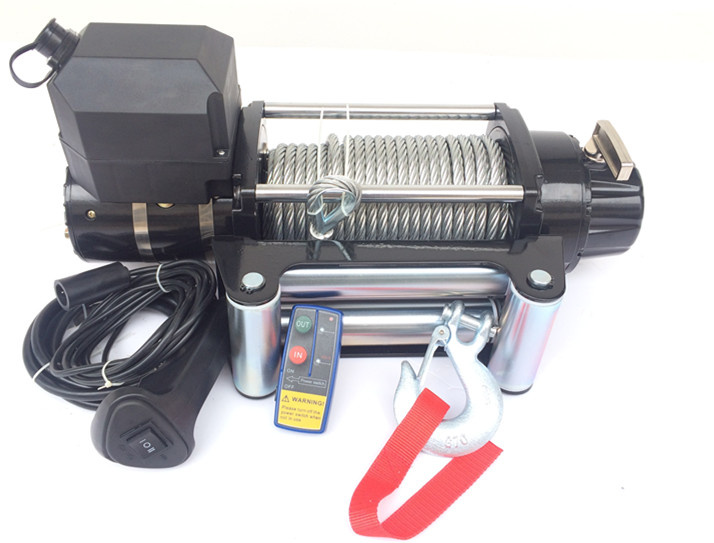

Classic Design off Road Winch 12000 Lb

This 4x4 truck winch designs to customers who love off road driving for Entry Level .Classic design  ,Pre-set solenoid control box seated on the motor , Sliding ring gear for freespooling by handle-turn ,three gears drive train with 216: 1 gear reduction ration .Appropriate speed line with safe operation .Both wired cord remote and wireless remote control.  4-way roller fairlead .Reliable performance and durable make your driving happily . The economic price is more advantage that you choose it !
Features and Specifications :
PN:          XM-TE902
Performance:        DC 12 V or 24 V
Single line rated pull:  12,000lbs ( 5436kg)
Motor:              6.0hp/4.5kw series -wound sealed
Braking action:       Automatic locking
Clutch:              Sliding ring gear
Gear train :           3 -stage planetary
Gear ratio:            216: 1
Remote Switch:   11ft ,wire remote control with black handbar ,
wireless remote control included
Battery:         Recommended:650CCA minimum for winching
Battery Leads:         2 Gauge 72"(1.83m)
Fairlead:             4-way roller fairlead
Steel cable:           Ф9.5 x 72 ft (Ф9.5 x 24 m )
Weight:               92.5 pound  (42kg )
Overall dimension:  21.3" x 10.3" x 6.3" (540mm x 260mm x 160mm)
Mounting bolt pattern:  10" x 4.5" (254mm x 114.3mm)
Line Speed And Amp Draw ( First Layer )

Line Pull	lb	NO	4000	6000	8000	10000	12000
	kg	LOAD	1812	2718	3624	4304	5436
Line speed	ft/ min	37.32	14.22	12.72	10.26	8.55	6.45
	m/ min	12.44	4.74	4.24	3.42	2.85	2.15
Motor  current	Amps	72	136	198	266	310	360




Line Pull And Cable Capacity

Layer of cable		1	2	3	4
Rated line pull per layer	lb	12500	9927	8250	7045
	kg	5665	4497	3737	3191
Length of cable on drum	ft	17.8	38.2	64.2	72
	m	5.93	12.73	19.57	24.00
