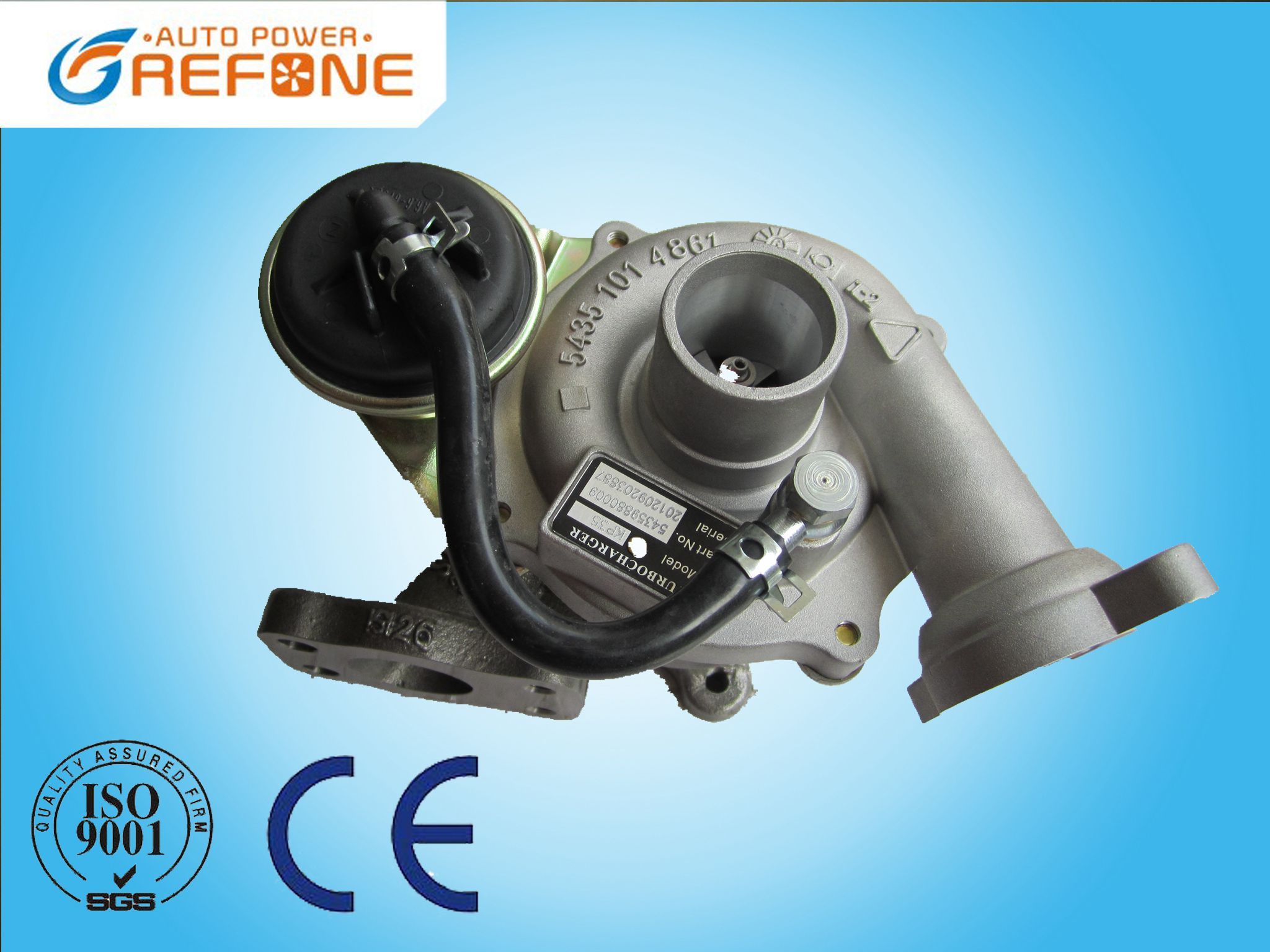

Ford / Citroen / Mazda / Peugeot with DV4TD Engine KP35 Turbocharger 54359880009 54359880001 54359880007 54359700009 54359700001 54359700007 0375G9 2S6Q6K682AB
Product Description
Part Number: 54359880009
Previous Version: 54359880001, 54359880007
OE number: 9648759980, 0375G9, 9643574980, 9643675880, 9643675880, 2S6Q6K682AA, 2S6Q6K682AB, 1219456, 1488986 - 2S6Q6K682AD, 1348618, 2S6Q6K682AC, 0375K0
Year: 2001-2011
Description: Mazda, Ford, Peugeot, Citroen
Manufacturer Part Number: 54359700001, 54359700007, 54359880009, 54359710009, 54359700009
CHRA: 54357100502
Turbo Model: KP35-1574CBK240.82ACAXD
Engine: DV4TD
Displacement: 1.41L
KW: 50
RPM Max: 4000
Angle α (compressor housing): 339
Angle β (turbine housing): 78
Bearing Housing: 54351510007
Turbine Wheel: 54351205006
Comp. Wheel: 54351232007
Backplate: 54351523001
Heat shield: 54351652000
Turbine Housing: 54351009015
Compressor Cover: 54351014801
Actuator: 58201104180
Manufacturer: Refone
Applications
2001-2011 Citroen C3 with DV4TD Engine
01-05 Ford Fiesta 1.4 TDCi with DV4TD Engine
09- Mazda 2 with DV4TD Engine
2002-2011 Peugeot 206 1.4 HDI with DV4TD Engine
Sample Order is acceptable and 1 year Quality Warranty!
High speed balancing testing is used by us to ensure our quality!
This model has been sold to France, Poland, Sweden and has a stable quality! Welcome to contact us! We will feedback promptly!
Contact person: Ms. Lillian Wang
GT1852V | 709835-5002S | 6110960399/6110960799 | Mercedes-PKW E-Klasse 220 CDI (W210) |
GT1852V | 709836-0004 | A6110960899 | Mercedes Sprinter OM611 |
GT1852V | 717625-5001S/1 | 86005024445061 | Opel Astra G 2.2 DTI |
GT1852V | 7176265001S/1/2/5002S | 860055-24443096 860051-24445062 | Opel Signum 2.2 DTI |
GT1852V | 718089-5008S/5/6/5007S | 8200267138/7701475282 8200447624/7711134877 8200447624A | Renault Avantime 2.2 dCi |
GT1852V | 726698-0001/2/3/5003S 778794-0001 709836-0001/5004S | A6110960899 A6110961699 A6110961599 | Mercedes Sprinter I 211/311/411CDI OM611 109HP 00-06 |
GT2052V | 7246390002/5002S/5006S 705954-0009/0015/0017 | 14411-2X900 14411-VC100 | Nissan Terrano II 3.0L Di 229 |
GT2052V | 454135-0001/2//5006S/5009S/5010S | 059145701G/GZ/GV/C/CX/CV | Audi A4 2.5 TDI (B5) |
GT2052V | 454205-0006 | 074145701DV248 | VW LT II 2.5TDI |
GT2052V | 710415-0001/5003S | 11657781434/5 7781436 /7780199D | BMW 525 d (E39) |
GT2052S | 452301-0001 | 2674A326/391 | Perkins 4000 - T4.40(0.0) |
GT2052S | 703389-0001 | 28230-41450 | Hyundai Mighty Truck |
GT22 | 709838-5004/5S/3/1 | A6120960399 | Mercedes Sprinter I 216/316/416CDI |
GT2252 | 452187-0006 | 1441169T00 | BD-30Ti |
GT2252V | 454192-0001 | 074145703E | V.W. T4 Transporter 2.5L |
GT2556V | 454191-0001/0003/5012S/5015S | 11652248906/11652248907/11652247691 | BMW 530 d (E39) |
GT2256V | 704361-0004/5/5006S | 11652249950/11652248834 | 330 d (E46) |
GT2256V | 709838-0001/3/4/5005S | 05104006AAA6120960399 | BENZ,DODGESprinter |
GT2256V | 710811-5002S | 55191597 | ALFA ROMEO |
GT2256V | 751758-0001/5001S 707114-0001 | 5001855042/500379251 | Iveco Daily |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
