Chziiri Dol Starter CCC CE Approved
| Price: |
US $ 30/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T |
| Application |
| LE1-D magnetic starter is mainly applied in circuit of AC 50/60HZ, voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor. It has the features of small volume, light weight, low power consumption, high efficiency, safe and reliable performance etc. |
|
|
|
| Specification |
| Type | Maximum power AC3 duty(KW) | Rated current(A) | Type of enclosure | Code Number | Suitable Thermal Relay(A) |
| 220V 230V | 380V 400V | 415V | 440V | 500V | 660V 690V | LL (long life) | NL(3) (normal life) |
| LE1-D09 | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | 9 | IP42 IP65 | LE1 D094.. LE1 D093.. | - - | LR2-D1312 LR2-D1314 |
| LE1-D12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 12 | IP42 IP55 | LE1 D124.. LE1 D123.. | LE1 D094.. LE1 D093.. | LR2-D1316 |
| LE1-D18 | 4 | 7.5 | 9 | 9 | 10 | 10 | 18 | IP42 IP55 | LE1 D188.. LE1 D185.. | LE1 D124.. LE1 D123.. | LR2-D1321 |
| LE1-D25 | 5.5 | 11 | 11 | 11 | 15 | 15 | 25 | IP42 IP55 | LE1 D258.. LE1 D255.. | LE1 D188.. LE1 D185.. | LR2-D1322 LR2-D2353 |
| LE1-D32 | 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | 32 | IP55 | LE1 D325.. | LE1 D255.. | LR2-D2355 |
| LE1-D40 | 11 | 18.5 | 22 | 22 | 22 | 30 | 40 | IP55 | LE1 D405.. | LE1 D325.. | LR2-D3353 LR2-D3355 |
| LE1-D50 | 15 | 22 | 25 | 30 | 30 | 33 | 50 | IP55 | LE1 D505.. | LE1 D405.. | LR2-D3357 LR2-D3359 |
| LE1-D65 | 18.5 | 30 | 37 | 37 | 37 | 37 | 65 | IP55 | LE1 D655.. | LE1 D505.. | LR2-D3361 |
| LE1-D80 | 22 | 37 | 45 | 45 | 55 | 45 | 80 | IP55 | LE1 D805.. | LE1 D655.. | LR2-D3363 LR2-D3365 |
| LE1-D95 | 25 | 45 | 45 | 45 | 55 | 45 | 95 | IP55 | LE1 D955.. | LE1 D805.. | LR2-D3365 |
| Enclosure | LE1-D09 and D12 | Double insulated, protexted to IP 429(3) or to IP 659(4) |
| LE1-D18 and D25 | Double insulated, protexted to IP 427(3) or to IP 557(4) |
| LE1-D32D95 | Metal, IP 55 to IP 559 |

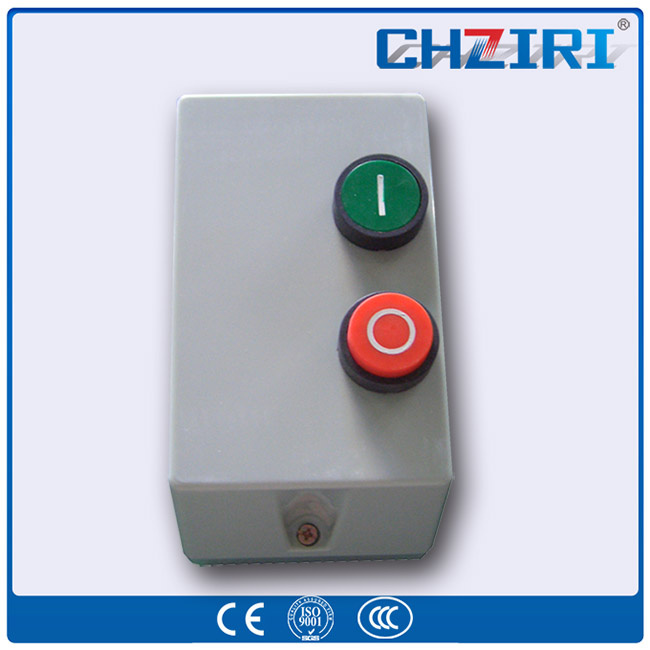

| Control(2 pushbuttons mounted on enclosure cover) | LE1-D09D95 | 1 green Start button "I" 1red Stop/Reset button"O" |
| Connections | LE1-D32D95 | Pre-wired power and control circuit connections |
| Standard control circuit voltages |
| Volts | 24 | 42 | 48 | 110 | 220/230 | 230 | 240 | 380/400 | 400 | 415 | 440 |
| 50/60HZ | B7 | D7 | E7 | F7 | M7 | P7 | U7 | Q7 | V7 | N7 | R7 |
CHZIRI Clients
Why you choose the products from CHZIRI Electrical ?- low voltage frequency inverter and soft starter manufacturer and exporter .
- More than 10 years experience and professional devoting the automation control system . we want to be the best to serve our clients.
- CHZIRI frequency inverter and soft starters are certificated with CE. CHZIRI Electrical passed ISO9001:2008 quality control system.
- Key parts inside the CHZIRI Frequency Inverter are imported .We use Infenion IGBT ,Fans are from Germany company ,Capacitors are imported from Japan .
- CHZIRI frequency inverters and soft starters are easy and convenient to operate .
- CHZIRI frequency inverter have built-in RS485 Port .and support Modbus communication protocol.
- CHZIRI Frequency Inverters and Soft starters are selling to all over the world . CHZIRI Products earn good reputation and sell well in the market .
- CHZIRI Electrical can offer the optional parts for frequency inverter .Such as braking unit .braking resistors .EMI Filter .Reactor .Choke and remote control cables.
- CHZIRI Electrical can also provide clients with customized control panel .Such as frequency inverter switchgear and soft starters cabinets.
- CHZIRI Electrical located in Liushi,Wenzhou -Capital city of low voltage electrical appliances in China . you can buy different kind of electrical products from our city . Such as breakers ,contactors .relays .fuses . indicators. Pushbutton and so on .
- CHZIRI Electrical are near to NINGBO ,SHANGHAI port .The shipping cost will be cheaper .
- OEM service can be offered .
- Prompt delivery :5-12 days after receipt your money.
- Warranty time :12 ~16 months .
| Prod Model: |
LE1-D40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type Of Enclosure: |
IP42 IP65 |
| Customized Made: |
Yes |
| Warranty Time: |
12 Months |
1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.
2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.
3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.
4. CHZIRI Electrical can also provide clients with customized control panel. We
Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.
5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.
6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.
7. CHZIRI Electrical also go aboard to attend the fair every year.
8. OEM service can be offered.
9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.
10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
