China National Grade Natural Graphtie Carbon Brush NCC634 for Industry
| Price: |
US $ 5-30/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
China National Grade Natural Graphtie Carbon Brush NCC634 for Industry
1. Products description
1). Item name: China National Grade Natural Graphtie Carbon Brush NCC634 for Industry
2). Model No.: NCC634
3). Size: 25X32X100mm, also can according to customed sizes.
4). Material: Natural graphite, graphite material/metal graphite(silver/copper)/eletric graphite/ resin-boned graphite
5). Grade: We have Morgan, Schunk, E-Carbon, Mersen, Megaa for you chooses.
6). Sample Lead Time: 10 days.
7). MOQ: 10PCS.
8). Delivery time: One week.
9). Addition: We can produce as customer's requirement.
10). Payment: TT, L/C, Western Union, Paypal.
11). Shipping: By Sea, by Air, by Express door toor( DHL/TNT/UPS/EMS/FedEx).
12). Packing: (a). Box packing; (b). PP bag 50 or 100 sets; (c). As customer's requirement.
Data sheet:| carbon brush NCC634 : |
| Grade | Resistivity
uΩ@m | Transverse Strength
Mpa | Shore Hardness
Mpa | Density
g/cm³ | Contact Vol.Drop
ΔU(V) | Coef.Of Friction | Current Density
A/cm³ | Normal Max.Surface Speed
M/s |
| NCC634 | 18 | 5.2 | 20 | 1.28 | 2.50 | 0.29 | 10 | 81 |
2.Carbon brush
We manufacture high-quality brushes to meet a wide range of OEM and aftermarket applications for a variety of industries, including Aerospace, Automotive, Construction, Mining, Power Generation, Printing & Paper, Renewable Energy and Transportation. Our brushes are made from the entire range of our customized grades in order to meet the specific demands and applications of our customers.
3. Appliances
-Elevators
-Fork Lifts / Lift Trucks
-Golf Carts
-Light & Heavy Duty Vehicles & Equipment
-Material Handling Equipment
-Turbine & Compressors
-Power Tools
-Rail Systems
4. After-sale service
Our company focus on the inspection not only for the production process but also close to the shipment process when the cargo were finished.
All the goods have passed strict testing, whether from the performance, or from the appearance of the package.

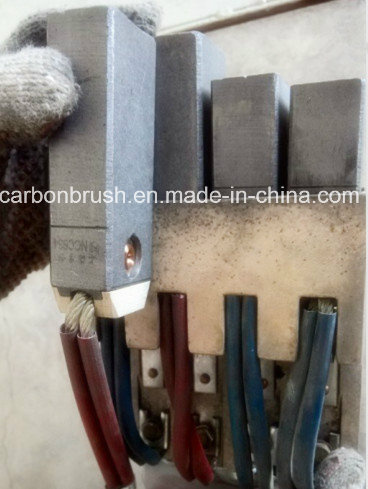

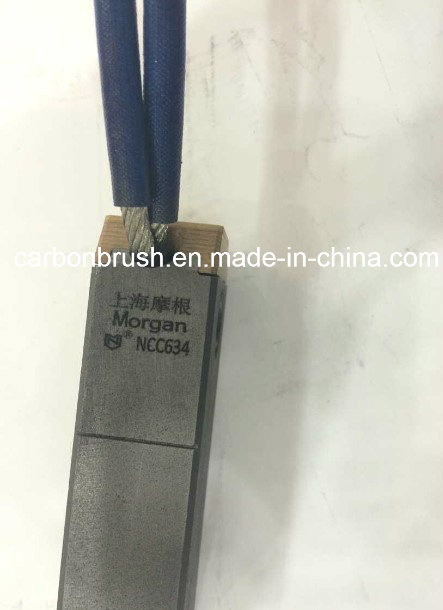

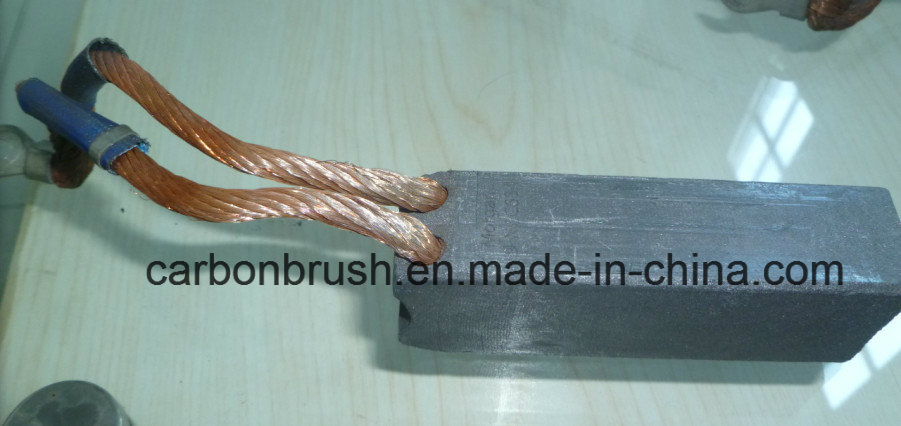

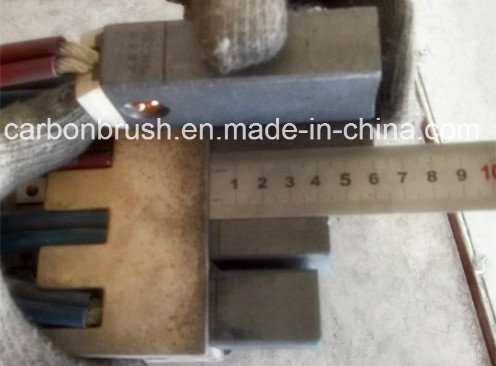

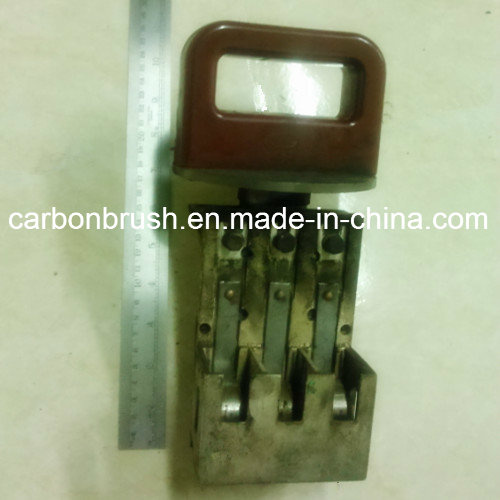

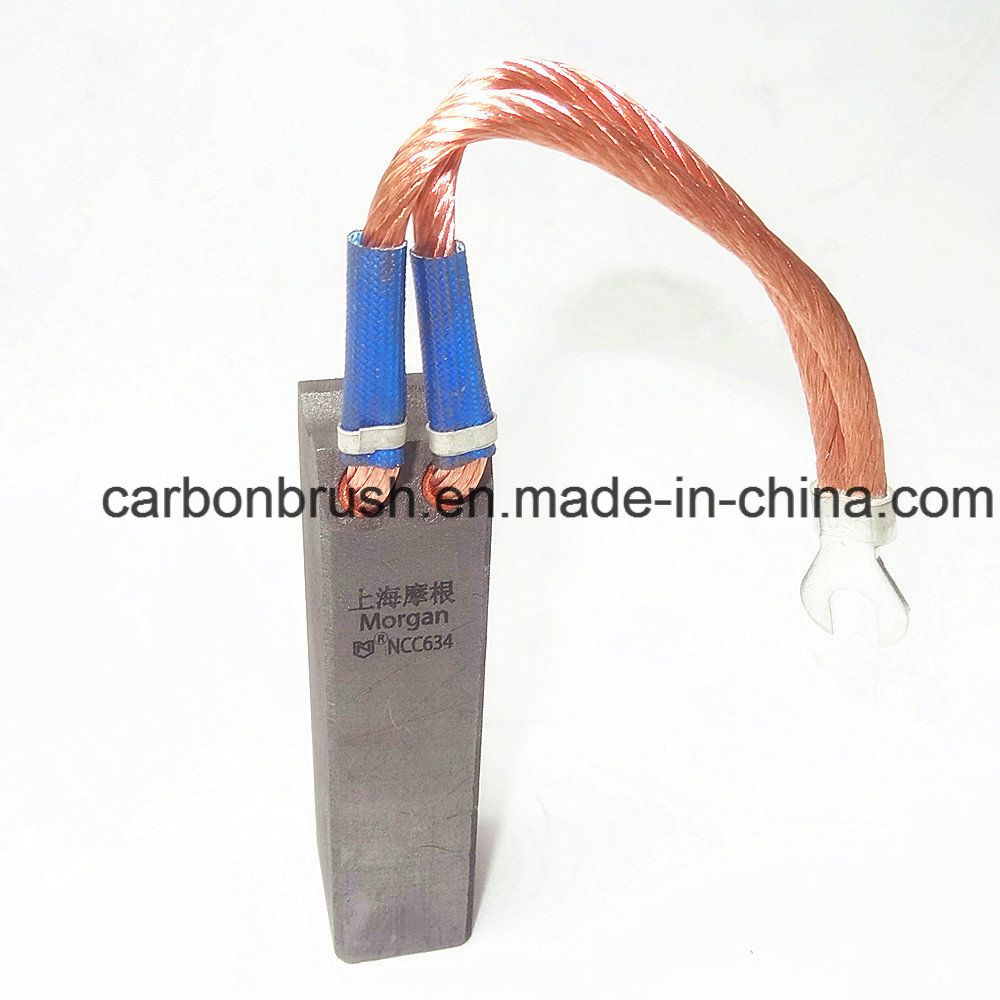

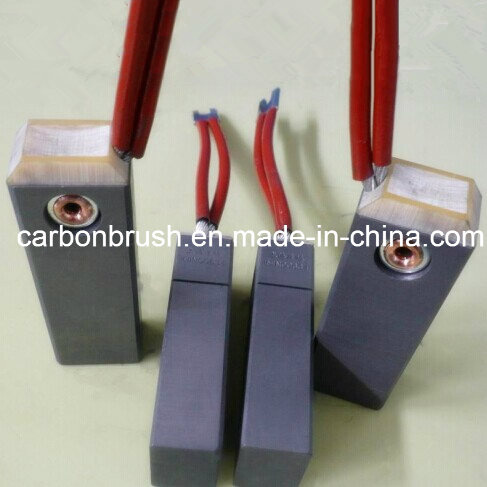

5.Product pictures
Buying guides:
1. when order brushes product, end users should specify the order drawing number, type and size the required quantity and delivery time requirements. |
2. Special specifications and structure, please provide drawings or samples. |
3. Our company has kept the map, when ordering, please indicate the figure number. |
4.We list the commonly used various sizes and models of carbon brushes , if there are special requirements, please note so that specify them in contract. |
Welcome to send the inquiry to us, thanks .
| Prod Model: |
NCC634 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
China(Mainland) |
| Brand Name: |
Morgan |
| Model Number: |
NCC634 |
| Types: |
Carbon Brush |
| Material: |
Soft Graphite |
| Size: |
25X32X100mm |
| Design: |
as Sample or Draft |
| Approved: |
SGS, ISO |
| Package: |
10PCS/Small Box |
| Application: |
Industry Motor |
| Type: |
Carbon Brush |
| Certification: |
ISO9001, SGS |
Changsha Aobo Carbon Co., Ltd was established in 2011, the company is located in Laodao River Town, Kaifu District, Changsha city, Hunan, China. The factory area is covered more than 1200 square meters. The transportation is very convenient.
We have a full set of advanced first-class production equipment, technology and brand-new management system, advanced production craft, complete examination method. Aobo Carbon employs experienced technical and most of them have more than 15 years experience in this field. Currently, Aobo Carbon is already exported to America, France, Austria, Italy and many other countries and regions. We attained ISO9001 Certification in 2015.
We are able to manufacture all kinds of carbon products, such as the carbon brush, brush holder, Carbon-graphite and High-purity graphite seal rings, carbon composite material, constant pressure spring, carbon vane and related products. Our products are widely used in Starter motor, Alternator, Mechanical applications, Power tools, parts for high temperature, samll motors, industry motors and Railway application, and Automotive technology etc.
The company business principle is "Quality first, customer supreme, honest for customer, credibility and integrity management, efficient production time and good after-sale service". We are sincerely hope that to achieve mutually beneficial cooperation both of us for a long time.
