China Manufacturers of Common Rail Test Bench with Laptop

Name: China Manufacturers of Common Rail Test Bench with Laptop
Brand: ibuyautoparts.com
SKU: 688550701
Availability: InStock
Rating: 4.5 (143 reviews)

Price:	Negotiableset
Min Order:	1set
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Show

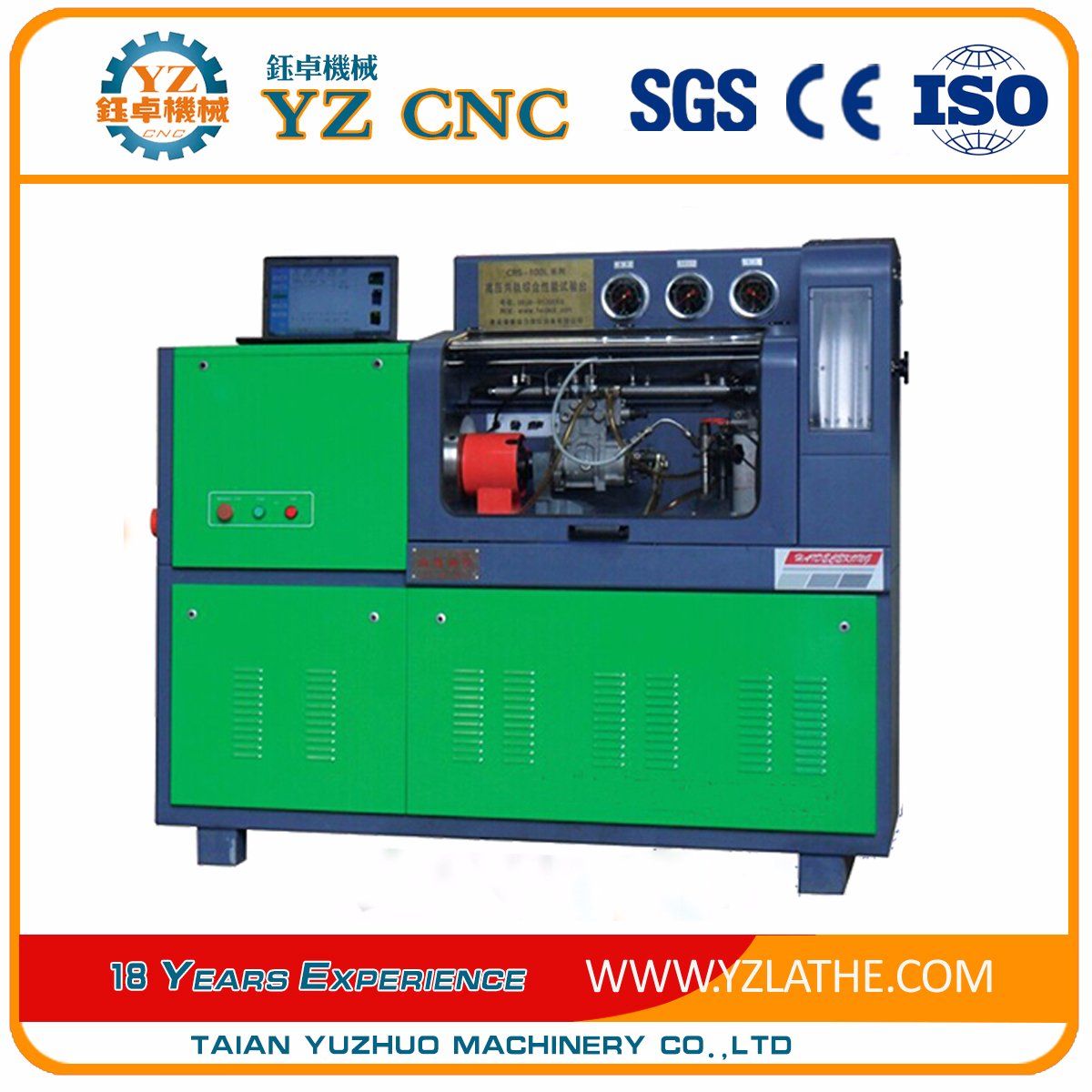

China manufacturers of common rail test bench with laptop

Functions:
1.Application: Bosch,Delphi,Denso,Siemens common rail injector and pump.
2.Pump test: Leak test , delivery oil ,back flow ,pressure and performance testing of the M-PROP/ZME,PCV,DRV
3.Injector test: Leak test ,VL,LL,VE,TL,EM
4. Cleaning the injectors while testing.
5. It can add EUI,EUP testing function and piezo function according to customer requirement.
6. User can add and edit the data by themselves.
7. It can add print function to save and print the testing results & customer information.
8. Support software upgrading and update
Technical parameters :

Motor power : 15KW	Tank: 60L
Power supply : 380V/50Hz,220V/60Hz	Heater : 2KW
Pressure : 0- 1850bar	Cooler : 2P
*Dimension(mm) :19009001600(3.2CBM)*	Speed : two-way 0-4000rpm
Delivery pump : 0.2KW, 6L/min	Weight: 1100KG
Certificate : CE ISO	Filter precision of test oil : 5μ
Temperature of test oil: 40±2ºC

Characteristics:
1 Control system independent research and development, data can be updated at any time to upgrade,
the operation interface can set up according to your requirement .
2. Full-automatic operation procedure, save the time to set up the data.
3.High quality import configuration: Bosch CP3.3 pump , Danfoss inventer ,
Germany imported high pressure hose, China's famous brand MN motor .
4 .Remote control is convenient for software upgrading and after-sale service.
5 .Frequency converter is used to change the rotation speed.
6. Original Bosch and Denso data .
7. Use Refrigeration units of Air Conditioning.
8. Multi language support.
9. Frequency converter is used to change the rotation speed.

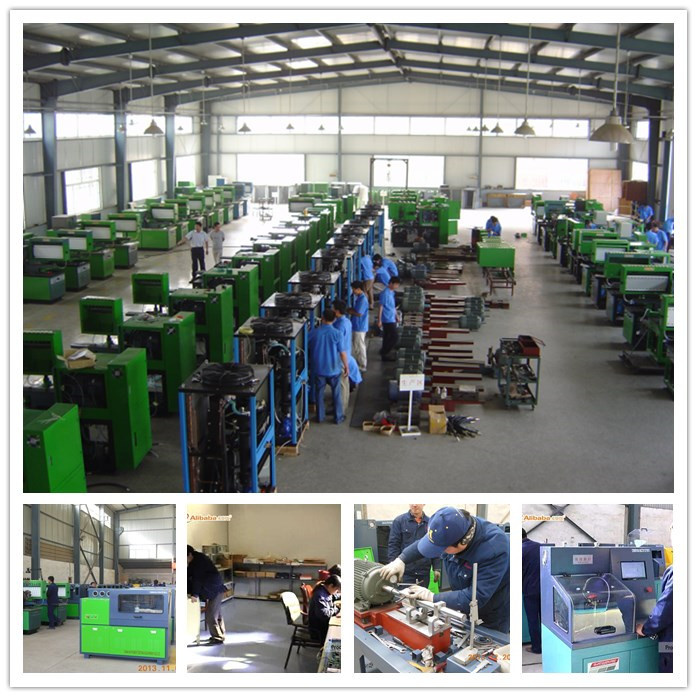

2.OUR COMPANY SHOW

3.OUR EXHIBITION

4.OUR COOPERATION CUSTOMERS

5.WE ALSO CAN SUPPLY SPARE PARTS AND REPAIR TOOLS

Prod Model:	CRS100L
Product Name:	China Manufacturers of Common Rail Test Bench with
Output Power:	15kw
Speed:	0-4000rpm
Tank:	60L
Supply Power:	380V/220V ,3 Phase
Weight:	1100kg
Pressure:	1850bar

Tai'an YuZhuo Machinery Co., Ltd (as for "YZ CNC"), is a company including active and professional teams, specialized in CNC machining Center, CNC Lathe Machine, Wheel Lathe machine. Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.

We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.

Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
