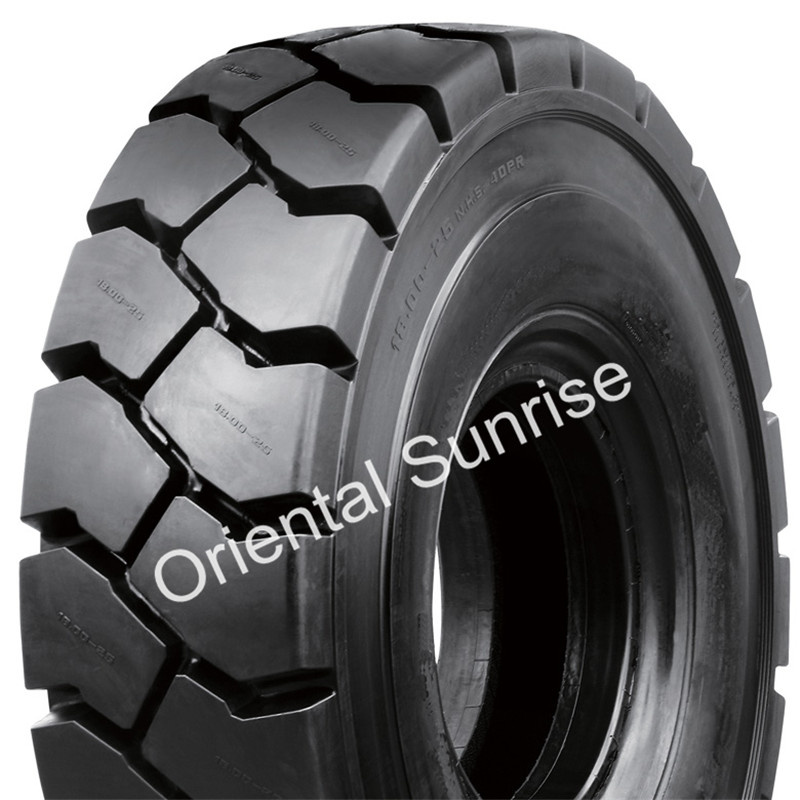

China Industrial Port Use Tyre 18.00-25 40pr for Reach Stacker
Price: |
US $ 800-1600/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
2/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
China Industrial Port Use Tyre 18.00-25 40pr for Reach StackerThe Port use tyres are suitable for heavy forklift trucks, Airport aircraft tractor, Empty container handler, Reach Stacker, Straddle Carrier, RTG Crane and other port equipments.Advantages1. Special Rubber Compound make tyre have low heat generation, good wear resistance and longer service life.
2. Reinforced tyre body and special tyre bead design, the tyre have very high torque and high load ability.
3. Wider tread surface, deeper pattern, tyre have good grip ability, good brake performance and safety operation.
4. Top level quality Port industrial tyres in China, excellent performance, few quality problems, tyre body can be retread for several times.Size and Specification SheetE-4 & E-4A (IND-4)
Deeper tread pattern design, longer service life, reduce downtime and save cost. These pattern tyres are especially suitable for reach stacker, airport aircraft tractor applications.
Size | PR | Pattern | Tyre | T.D (mm) | Std. Rim | Inflation Pressure | LOAD CAPACITY AT VARIOUS SPEED | S.W. (mm) | O.D. (mm) |
| 0km/h | 5km/h | 10km/h | 15km/h | 20km/h | 25km/h | 30km/h |
Static | 3mph | 5mph | 9mph | 12mph | 15mph | 19mph |
18.00-25 | 40 | E-4 | TL | 69 | 13.00/2.5 | 1000 | kPa | kg | 30600 | 24650 | 22950 | 22100 | 21590 | 21250 | 21080 | 526 | 1673 |
145 | psi | lbs | 67470 | 54350 | 50610 | 48730 | 47610 | 46860 | 46480 |
16.00-25 | 36 | E-4 | TL | 62 | 11.25/2.0 | 1100 | kPa | kg | 24090 | 19470 | 18060 | 17400 | 16980 | 16705 | 16535 | 432 | 1548 |
160 | psi | lbs | 53105 | 42915 | 39810 | 38360 | 37440 | 36840 | 36470 |
16.00-25 | 32 | E-4 | TL | 62 | 11.25/2.0 | 1000 | kPa | kg | 22100 | 17800 | 16600 | 16000 | 15600 | 15350 | 15195 | 432 | 1548 |
145 | psi | lbs | 48730 | 39240 | 36595 | 35280 | 34430 | 33880 | 33540 |
16.00-25 | 28 | E-4 | TL | 62 | 11.25/2.0 | 900 | kPa | kg | 20700 | 16675 | 15525 | 14950 | 14605 | 14375 | 14260 | 432 | 1548 |
130 | psi | lbs | 45640 | 36770 | 34230 | 32970 | 32200 | 31700 | 31440 |
14.00-25 | 28 | E-4 | TT | 57 | 10.00/1.5 | 1000 | kPa | kg | 18000 | 14500 | 13500 | 13000 | 12700 | 12500 | 12400 | 386 | 1417 |
145 | psi | lbs | 39690 | 31970 | 29770 | 28670 | 28000 | 27560 | 27340 |
14.00-24 | 32 | E-4 | TT | 57 | 10.00 | 1100 | kPa | kg | 19605 | 15845 | 14700 | 14160 | 13820 | 13600 | 13460 | 386 | 1417 |
160 | psi | lbs | 43220 | 34925 | 32400 | 31200 | 30450 | 29960 | 29660 |
14.00-24 | 28 | E-4 | TT/TL | 57 | 10.00 | 1000 | kPa | kg | 18000 | 14500 | 13500 | 13000 | 12700 | 12500 | 12400 | 386 | 1417 |
145 | psi | lbs | 39690 | 31970 | 29770 | 28670 | 28000 | 27560 | 27340 |
12.00-24 | 24 | E-4 | TT | 54 | 8.5 | 1000 | kPa | kg | 13600 | 11000 | 10250 | 9850 | 9650 | 9500 | 9400 | 333 | 1300 |
145 | psi | lbs | 29980 | 24250 | 22595 | 21715 | 21265 | 20940 | 20720 |
12.00-20 | 24 | E-4 | TT | 45 | 8.5 | 1000 | kPa | kg | 14260 | 11510 | 9800 | 9440 | 9230 | 8250 | 8180 | 340 | 1173 |
145 | psi | lbs | 31430 | 25370 | 21600 | 20800 | 20340 | 18180 | 18030 |
10.00-20 | 18 | E-4 | TT | 40 | 7.5 | 1000 | kPa | kg | 9630 | 7780 | 7255 | 6990 | 6830 | 5520 | 5480 | 300 | 1097 |
145 | psi | lbs | 21220 | 17150 | 16000 | 15400 | 15050 | 12160 | 12080 |
18.00-33 | 40 | E-4A | TL | 69 | 13.00/2.5 | 1150 | kPa | kg | 35600 | 28700 | 26700 | 25710 | 25120 | 24700 | 24500 | 509 | 1860 |
165 | lbs | lbs | 78480 | 63270 | 58860 | 56660 | 55360 | 54450 | 54000 |
18.00-25 | 40 | E-4A | TL | 68 | 13.00/2.5 | 1000 | kPa | kg | 30600 | 24650 | 22950 | 22100 | 21590 | 21250 | 21080 | 528 | 1684 |
145 | psi | lbs | 67470 | 54350 | 50610 | 48730 | 47610 | 46860 | 46480 |

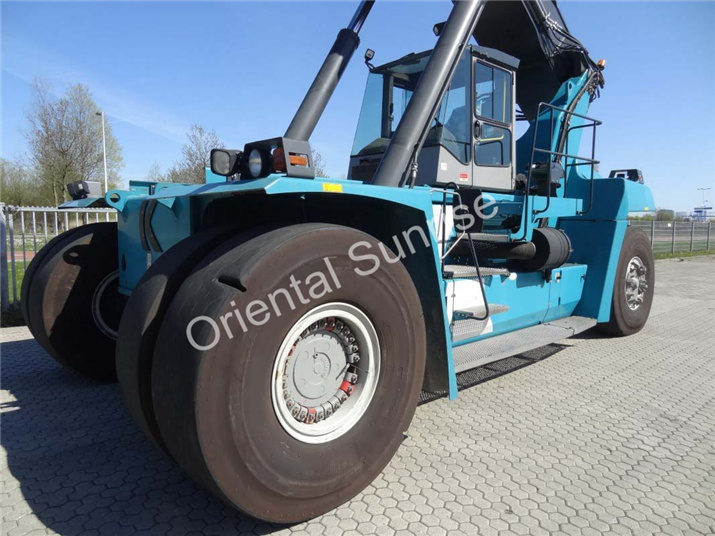

18.00-25 E-4A 40PR TYRE on Reach Stacker
E-3A (IND-3)
Reinforced structure, strong casing, high load ability and high torque, especially suitable for RTG Crane and straddle carrier.
Size | PR | Pattern | Tyre | T.D (mm) | Std. Rim | Inflation Pressure | LOAD CAPACITY AT VARIOUS SPEED | S.W. (mm) | O.D. (mm) |
| 0km/h | 5km/h | 10km/h | 15km/h | 20km/h | 25km/h | 30km/h |
Static | 3mph | 5mph | 9mph | 12mph | 15mph | 19mph |
21.00-25 | 44 | E-3A | TL | 42 | 15.00/3.0 | 1150 | kPa | kg | 39580 | 31860 | 29950 | 28480 | 27800 | 27360 | 27140 | 572 | 1750 |
165 | psi | lbs | 87230 | 70230 | 66000 | 62770 | 61270 | 60300 | 59810 |
21.00-25 | 42 | E-3A | TL | 42 | 15.00/3.0 | 1030 | kPa | kg | 37370 | 30200 | 28000 | 27000 | 26360 | 25940 | 25730 | 572 | 1750 |
150 | psi | lbs | 82360 | 66600 | 61710 | 59500 | 58100 | 57170 | 56700 |
18.00-25 | 44 | E-3A | TL | 41 | 13.00/2.5 | 1030 | kPa | kg | 32290 | 25990 | 24110 | 23240 | 22700 | 22340 | 22160 | 510 | 1636 |
150 | psi | lbs | 71170 | 57300 | 53140 | 51220 | 50000 | 49230 | 48840 |
18.00-25 | 40 | E-3A | TL | 41 | 13.00/2.5 | 1000 | kPa | kg | 30600 | 24650 | 22950 | 22100 | 21590 | 21250 | 21080 | 510 | 1636 |
145 | psi | lbs | 67470 | 54350 | 50610 | 48730 | 47610 | 46860 | 46480 |
L-4S & L-5SSize | PR | Pattern | Tyre | T.D (mm) | Std. Rim | Inflation Pressure | LOAD CAPACITY AT VARIOUS SPEED | S.W. (mm) | O.D. (mm) |
| 0km/h | 5km/h | 10km/h | 15km/h | 20km/h | 25km/h | 30km/h |
Static | 3mph | 5mph | 9mph | 12mph | 15mph | 19mph |
18.00-25 | 40 | L-4S | TL | 58 | 13.00/2.5 | 1000 | kPa | kg | 30600 | 24650 | 22950 | 22100 | 21590 | 21250 | 21080 | 526 | 1673 |
145 | psi | lbs | 67470 | 54350 | 50610 | 48730 | 47610 | 46860 | 46480 |
21.00-25 | 40 | L-5S | TL | 97 | 15.00/3.0 | 1000 | kPa | kg | 36386 | 29311 | 27290 | 26279 | 25672 | 25268 | 25066 | 617 | 1798 |
145 | psi | lbs | 80230 | 64630 | 60170 | 57950 | 56610 | 55720 | 55270 |
18.00-25 | 40 | L-5S | TL | 85 | 13.00/2.5 | 1000 | kPa | kg | 30600 | 24650 | 22950 | 22100 | 21590 | 21250 | 21080 | 538 | 1673 |
145 | psi | lbs | 67470 | 54350 | 50610 | 48730 | 47610 | 46860 | 46480 |
14.00-25 | 28 | L-5S | TT/TL | 77 | 10.00 | 1000 | kPa | kg | 18000 | 14500 | 13500 | 13000 | 12700 | 12500 | 12400 | 386 | 1417 |
145 | psi | lbs | 39690 | 31970 | 29770 | 28670 | 28000 | 27560 | 27340 |
14.00-24 | 28 | L-5S | TT | 74.5 | 10.00 | 1000 | kPa | kg | 18000 | 14500 | 13500 | 13000 | 12700 | 12500 | 12400 | 386 | 1417 |
145 | psi | lbs | 39690 | 31970 | 29770 | 28670 | 28000 | 27560 | 27340 |
12.00-24 | 24 | L-5S | TT | 55 | 8.50 | 1000 | kPa | kg | 13600 | 11000 | 10250 | 9850 | 9650 | 9500 | 9400 | 333 | 1300 |
145 | psi | lbs | 29980 | 24250 | 22595 | 21715 | 21265 | 20940 | 20720 |
12.00-20 | 28 | L-5S | TT | 67 | 8.5 | 1030 | kPa | kg | 13440 | 10975 | 10250 | 9910 | 9690 | 9520 | 9400 | 330 | 1173 |
150 | psi | lbs | 29620 | 24200 | 22590 | 21840 | 21355 | 20980 | 20710 |
10.00-20 | 18 | L-5S | TT | 58 | 7.5 | 1000 | kPa | kg | 9630 | 7780 | 7255 | 6990 | 6830 | 5520 | 5480 | 300 | 1097 |
145 | psi | lbs | 21220 | 17150 | 16000 | 15400 | 15050 | 12160 | 12080 |
8.25-15 | 24 | L-5S | TT | 52 | 6.5 | 1030 | kPa | kg | 6070 | 4900 | 4550 | 4390 | 4280 | 4200 | 4100 | 260 | 864 |
150 | psi | lbs | 13380 | 10800 | 10030 | 9670 | 9430 | 9250 | 9030 |

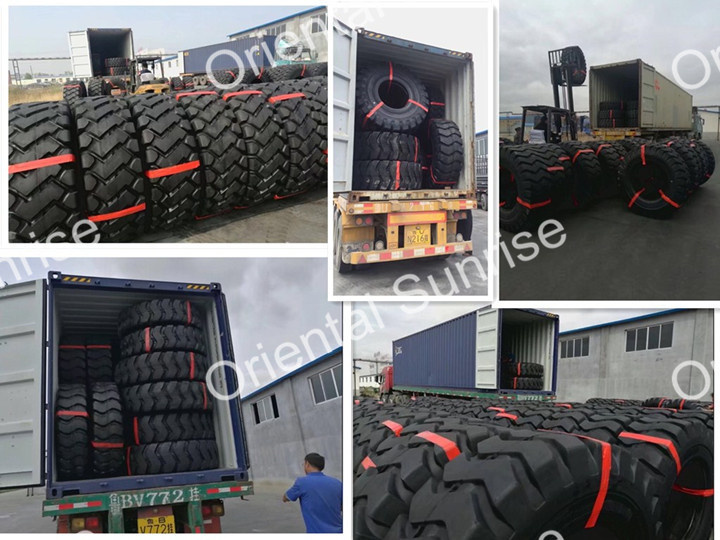

18.00-25 L-4S 40PR TYRE on Reach Stacker14.00-24 E-4 28PR TYRE on Empty Container HandlerCOMPANY INTRODUCTIONOriental Sunrise Corporation Limited is a professional tyre enterprise in Shandong Province of China have more than 20 years experience specialised in manufacturing and marketing port tyre, OTR tyre, Industrial tyre, Solid Tyre, RTGC Tyre, Truck tyre and etc, products passed the certification of DOT, ECE, GCC, CCC, SNI, ISO and solid tyre meet the standard of TRA of USA, ETRTO of Europe, JATMA of Japan. Our tyres exported to America, Europe, Middle East, South East Asia countries and got sastifying performance.LOADING OTR TYRESWHY CHOOSE US1. Reliable quality, get you free from quality problem, longer service life.
2. Reasonable prices, the price per hour cost is the best.
3. Market protection, we exactly know your concerns, sign sole agent contract with long term cooperation customers.
4. Fast delivery and fast market informaiton shared with agent.
5. One stop service center, meet most of customer requirements.
Prod Model: |
18.00-25 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Pattern: |
E4/E4a/L4s/L5s/E3 |
Structure: |
Bias Tyre |
Warranty: |
Two Years |
OEM: |
Available |
Retread: |
Available |
Trade Term: |
Fob/CNF/CIF |
Delivery Time: |
Within 30 Days |
Application: |
Reach Stacker/Rtg Crane/Container Hanlder |
Market: |
America/Europe/Australia/Asia/Africa |
Size: |
18.00-25/16.00-25/14.00-24/21.00-25 |
Type: |
Tubeless |
Diameter: |
≥22" |
Tire Design: |
Bias Belted Tyre |
Certification: |
CCC |
Tread Pattern: |
Transverse Pattern |
Tire Hierarchy: |
40pr |
Oriental Sunrise Corporation Limited is a professional tyre manufacturer located in the beautiful seaside city Qingdao of Shandong Province for years.
Specialised in OTR Tyre, Industrial tyre, Solid and Pneumatic forklift tyre, truck tyre, car tyre, not only relying on advanced technology, world class production and testing equipments, but also the spirits to put the best possible tires on the road and the desire to satisfy customer's expectation.
Nowdays, we have got most certifications in the tire industry, including DOT, ECE, CCC, ISO9001, REACH, S-MARK, TS16949, GCC, BIS, SMARTWAY, INMETRO, SNI, SASO, SONCAP, and etc.
Products exported to North America, South America, Europe, Middle East, Australia and South East Asia countries, customers are very satisfy with tire performance. Especially for port tire, quality stable and service is much longer, have advantage technology from Japan and Taiwan and tens of years experience.
Our attitude is quality first, and have long term cooperation with our business partner and grow together.
