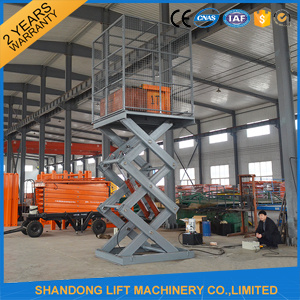

china hydraulic scissor cargo lifting equipment / hydraulic lifter
Application:
·The cargo lifting equipment can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.
·Operation is easy. There are 2 sets control system installed on the cargo lifting equipment, 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.
The frequent models we supplied for our clients:
MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
SJG0.3-2 | 0.3T | 1.5m x 1.5m | 2m | 400mm | 220V, 240V, 380V or 400V |
SJG0.5-3 | 0.5T | 2m x 1.8m | 3m | 500mm | 220V, 240V, 380V or 400V |
SJG1-4.5 | 1T | 2.1m x 1.5m | 4.5m | 650mm | 220V, 240V, 380V or 400V |
SJG1.5-4 | 1.5T | 2.2m x 1.6m | 4m | 600mm | 220V, 240V, 380V or 400V |
SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 800mm | 220V, 240V, 380V or 400V |
SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
The cargo lifting equipment can be customized as your detailed size. |

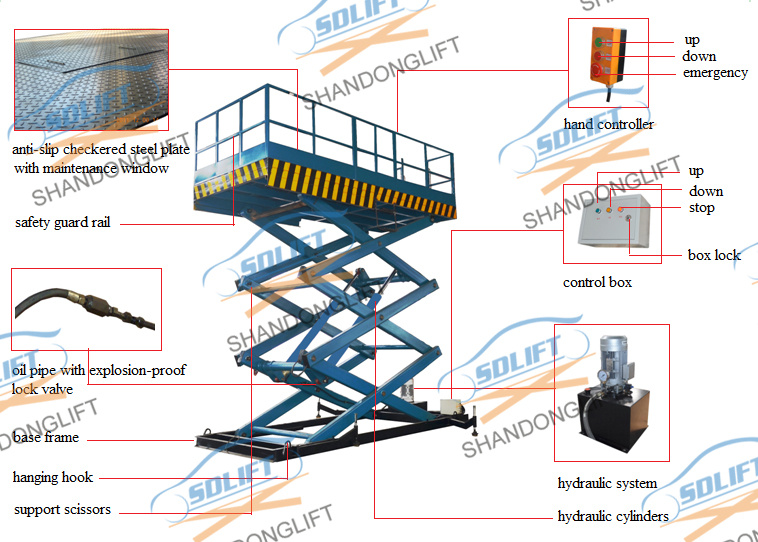

Parts Showing:
Configuration:
1) Platform Material: rectangular tube + checkered anti-slip plate
2) Support scissors: high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw or 220v or as your request
4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.
7) Hydraulic pipe: high pressure pipe with double expanded metal protected
8) Hydraulic oil: summer 46#, winter 32#
9) Controller: 1 control box below, 1 hand controller above platform
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above Electric Hydraulic lift platform .
3) Equipped 4 guide rails, to ensure the cargo lifting equipment runs more smoothly and steadily.
4) The limit switch system helps the cargo lifting equipment to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the cargo lifting equipment are passed 1.2 times loading test before leaving factory.
Our services:
1) We can design the cargo lifting equipment as per your requirement.
2) The most suitable cargo lifting equipment will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.

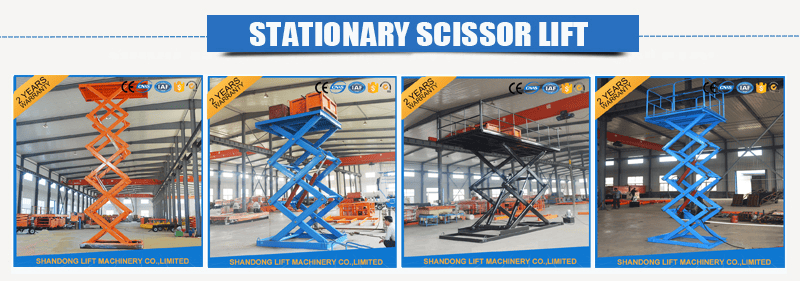

Shandong Lift Machinery Co., Ltd is one of the leading manufacturer of heavy duty scissor lifts and car parking lifts in China. Being in this field for over 59 years, and exported lift machine more than 17 years till 2017. Our main products are stationary scissor lift, mobile scissor work platform, car park lift, cargo elevator, disable wheelchair lift, aerial aluminum lift ladder, and mobile container loading ramps etc.
Now there are more than 116 staffs in our factory, and 10 production lines in 8 workshops. There is a engineer team focus on research, development and innovation. The biggest load weight of our scissor lift is 100tons. All the products are passed the test held by Check Station of China Special Equipment and Manufacture.
We regard ''reasonable prices, efficient production time and good after-sales service'' as our tenet, and hope to cooperate with more customers for mutual development and benefits. We sincerely welcome each potential customer to visit our factory!
