Name: China Customized Bus Spray Booth Paint Baking Booth with Ce
Brand: ibuyautoparts.com
SKU: 676463115
Availability: InStock
Rating: 4.9 (133 reviews)

Price:	US $ 8820-48500/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZB-FB-20
Markets:	North America,South America,Eastern Europe,Africa,Mid East,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

Specifications
1. Spray Booth-Truck bus booth
2. CE and ISO approved
3.4 sets of Riello G20 diesel burner
4. Wall panel: 75mm thickness

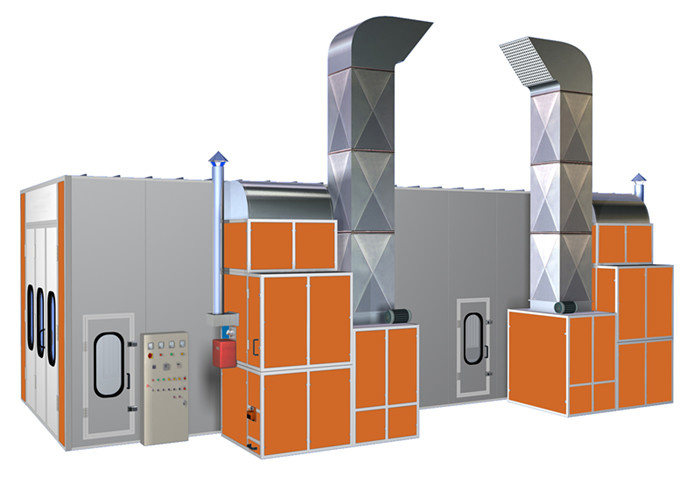

Spray booth /Truck Bus Paint Booth/ Baking booth- BZB-FB15 ( CE )
External Size (mm): (L) 20200 x (W) 8850 x (H) 5600
Internal Size (mm): (L) 20000 x (W) 5000 x (H) 4800
Main Door Size (mm): (W) 4000 x (H) 4800
Air Flow (m3 /h): 24000 x 4
Air Speed (m/s): 0.3-0.5
Operating Temperature (° C): 60 ~ 80
Power (kw): 61
Vehicle Suited: Truck and Bus
Main features:

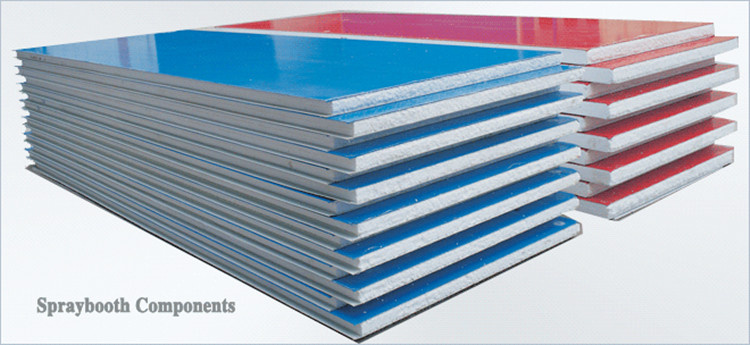

1. Wallboard: Sandwich style EPS (epispastics polystyrene) 75mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.
2. Door: 4 pcs of front doors with special rigid frame. Size: 4000(w) x 4800(h). 2 pcs of emergency doors.
3. Air Intake System (4sets): Each set consists of 2x4kw intake fan. Total 8 units of 4kw intake fan. BELIMO 20N electric damper.
4. Air Exhaust System (4sets): Each set consists of 1x5.5kw exhaust fan. Total 4 units of 5.5kw exhaust fan. Multi-layer fiberglass filter. Exhaust air from basement or two sides of wallboard.
5. Heating System (4sets): Each set consists of 1 unit Italy Riello G20 diesel burner, 200000Kcal/h. Total 4 units of burners, 800000Kcal/h. The heat exchanger is made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency.
6. Lighting System: Ceiling light has 24 units x 4 pcs of 40w lamps. Side light has 31 units x 2 pcs of 40w lamps. Total 158 pcs of 40w lamps. 900 Lux.
7. Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.

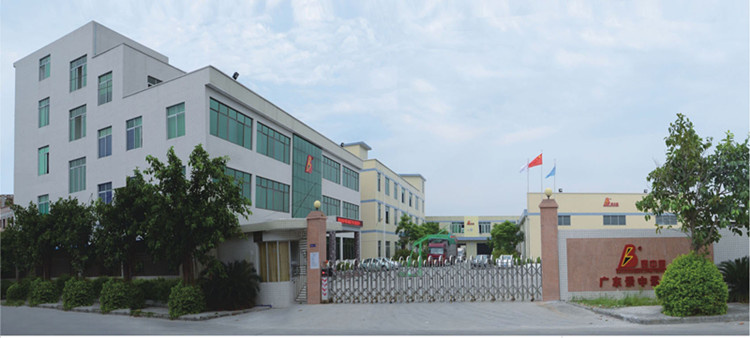

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
