Application of China Coal Zbl-R630 Digital Portable Surveying Testing Concrete Rebar LocatorChina Coal Zbl-R630 Digital Portable Surveying Testing Concrete Rebar Locator can be used for testing the Location, distribution, direction, and diameter of the rebar and the thickness of concrete cover in concrete structure projects such as bridges, tunnels, walls etc. Detecting Ferro magnets in non-ferromagnetic media;
Evaluating the quality of construction;
Evaluating the integrity and the durability of existing structures;
Testing the quantity of rebar when evaluating and developing the old structure;
Testing the distribution and direction of electric cables and plumbing inside walls and floors.
Feature of China Coal Zbl-R630 Digital Portable Surveying Testing Concrete Rebar LocatorUni-probe with two detect range: The uni-probe has both a small and large detect range;
Detect closely located bars: Can detect closely situated, parallel bars with 1.5 diameter gap;
Unlimited cyberscan: Can scan object with unlimited size, and display the thickness of cover concrete and bars distributing simultaneously;
Actual distributing map of bars: Can out put the actual distributing map of bars after several times scanning;
Transverse Section Bars Distributing Map: Can output the transverse section map of bars distributing;
Test data may be transferred to computer via USB port, allowing real time analysis of data;
Rechargeable lithium battery; Convenient, value for money, and environmentally friendly.
Datesheet of China Coal Zbl-R630 Digital Portable Surveying Testing Concrete Rebar Locator| Model | ZBL-R800 | ZBL-R650 | ZBL-R630A | ZBL-R630 | ZBL-R620 |
| Protective layer thickness range (mm) | φ6~φ50 | φ6~φ50 | φ6~φ50 | φ6~φ50 | φ6~φ50 |
| Max range(mm) | First range | 3~98 | 6~90 | 3~98 | 6~90 | 6~90 |
| Second range | 3~196 | 10~180 | 3~196 | 10~180 | 10~180 |
| Max allowed error | ±1(mm) | 3~79 | 6~70 | 3~79 | 6~79 | 6~79 |
| ±2(mm) | 57~119 | 51~110 | 57~119 | 60~119 | 60~119 |
| ±4(mm) | 70~196 | 70~180 | 70~196 | 70~180 | 70~180 |
| Applicable range(mm) | φ6~φ50 | φ6~φ32 | φ6~φ50 | φ6~φ32 | φ6~φ32 |
| Max allowed error for diameters measurement | ±1 |
| Common type | ü |
| Closely bars type | ü |
| Transverse section bars | ü | × |
| Grid type | ü | × |
| Signal wave | × | Real time display | × |
| Scan range | Borderless |
| Data correction | Automatic | Manually | × |
| Data transfer | U disk | USB | U disk | USB |
| Wireless transfer | ü | × | ü | × |
| LCD | 160×128 | 320×240 | 160×128 |
| Power | Built-in battery | DC:9V 5 batteries |
| Size (mm) | 212×134×50 | 190×135×52 | 212×134×50 | 190×135×52 |
| Weight(kg) | 0.9 | 1.1 | 0.9 | 0.9 | 0.7 |

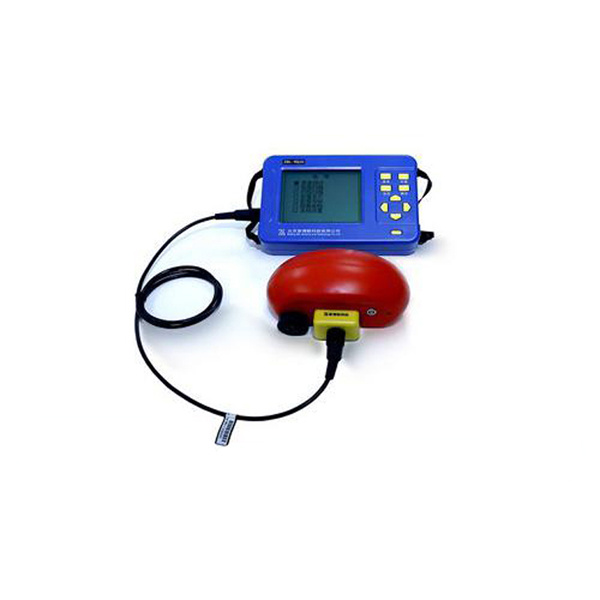

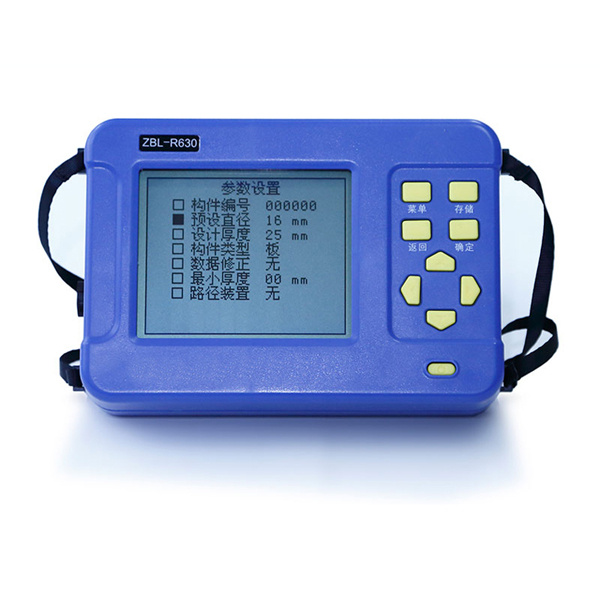

Photos Of China Coal Zbl-R630 Digital Portable Surveying Testing Concrete Rebar Locator
