China Cheap Price 120tons Tyre Press with Ce Certificates
| Price: |
US $ 4000-8000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
China Cheap Price 120tons Tyre Press with CE Certificates
Forklift Solid Tire Press Machine: 80Ton, 120 Ton, 160Ton, 200Ton, with Tools for 8'-25' Tire
We have exported to America, Greece, Norway, Denmark, UK, Singapore etc. The feedback of the performance is very good.Specification:
ASSEMBLY & DISAAAEMBLE OF SOLID TYRE
HIGH -GRADE HYDRAULIC CYLINDER
COMPACT HYDRAULIC POWER UNIT
OPERATION PANDELTOOLS
SELF-PROTECTION SYSTEM
EASY SERVICES& HEAVY DURALIBITY | Model | | TP80 | TP120 | TP160 | TP200 | | TP80 | TP120 | TP160 | TP200 |
| Max Hydraulic Pressure | Ton | 80 | 120 | 160 | 200 | lb | 176000 | 264000 | 352000 | 440000 |
| Max Tyre Dimension | mm | 381 | 508 | 508 | 508 | inch | 15 | 20 | 20 | 20 |
| Total Length | mm | 1640 | 2090 | 2090 | 2090 | inch | 64.6 | 82.3 | 82.3 | 82.3 |
| Total Midth | mm | 700 | 850 | 850 | 930 | inch | 27.6 | 33.5 | 33.5 | 36.6 |
| Total Height | mm | 2170 | 2210 | 2210 | 2210 | inch | 85.4 | 87 | 87 | 87 |
| Operating Pressure | Mpa | 21 | 25 | 33 | 33 | Mpa | 21 | 25 | 33 | 33 |
| Cylinder Stroke | mm | 400 | 400 | 400 | 400 | inch | 15.7 | 15.7 | 15.7 | 15.7 |
| Oil Tank capacity | L | 30 | 30 | 30 | 30 | L | 30 | 30 | 30 | 30 |
| Motor | kw | 5.5 | 5.5 | 7.5 | 11 | hp | 7.37 | 7.37 | 10.1 | 14.7 |
| Weight | kg | 1100 | 1510 | 1610 | 2110 | Ib | 2420 | 3322 | 3542 | 4642 |
| Type | Max Tyre Dimension | Max Tyre Dimension | Cage | Puscher Ring | Flange Ring | | | | | |
| | mm | inch | pcs | pcs | pcs | | | | | |
| TOOL-II | 508 | 20 | 4 | 11 | 6 | | | | | |
| Type | Max Tyre Dimension | Max Tyre Dimension | Cage | Puscher Ring | Cone | Flange Ring | | | | |
| | mm | inch | pcs | pcs | pcs | pcs | | | | |
| TOOL-IV | 508 | 20 | 6 | 6 | 6 | 3 | | | | |

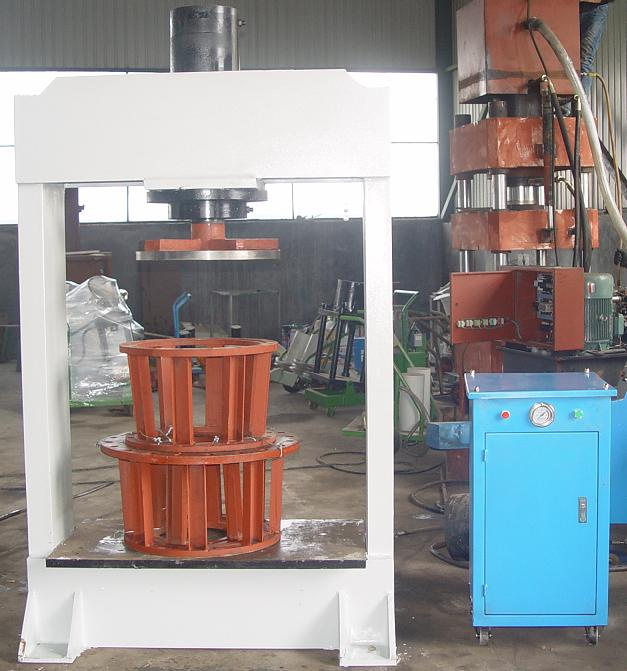

More pictures about the tire press:

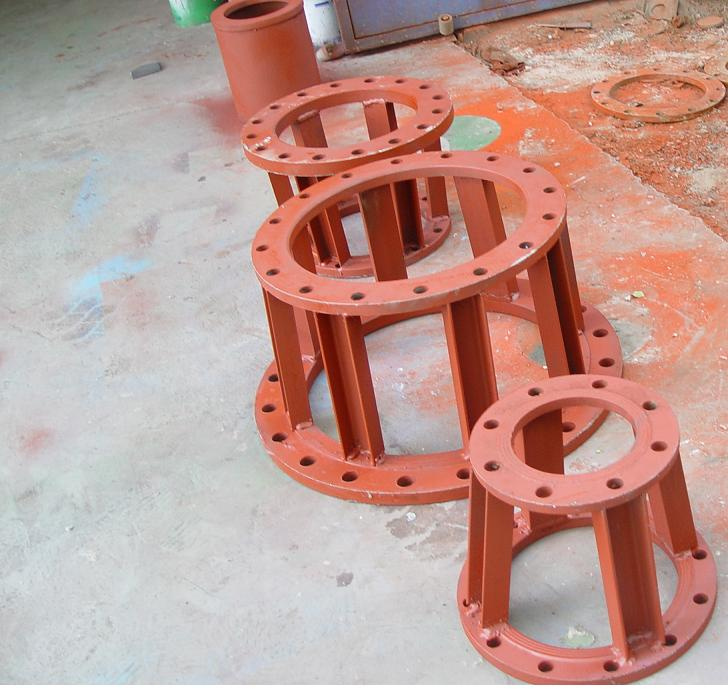

Tools:
Wooden packing:
Solid Tyre Press, used as assemble & disassemble solid typre from 8"-25", from 80Ton to 200Ton
- Rigid Frame: The construction is welded by large-scale channel beam
- High-grade Hydraulic Cylinder: The piston rod is grinded and hard-chromium plated
- Compact Hydraulic Power Unit: First-class quality
- Operation Panel: Operated by a handle for Down/Up, stop at any position when the handle is released
- Optional Tooling: One is for 2-piece rim tire (tyre), another is for 3-piece & 4-piece rim tire
- Easy service & Heavy-duty application
- OPTIONS: Special Tooling requirement is available, special Input Voltage is available
-APPLICATIONS: Assembly & disassembly of solid tyreWELCOME ALL CUSTOMERS COME VISITNG US!
| Prod Model: |
80t 120t 160t 200t Forklift Solid Tire Press |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
80t 120t 160t 200t Forklift Solid Tire Press |
| Type Of Tire Machinery: |
Tire Press |
| Power: |
10kw, 7.5kw, 5.5kw, 3kw |
| Using Life: |
10 Years |
| HS Code: |
8479899990 |
| Delivery Time: |
About 10days After Payment |
| Voltage: |
220V/380V/410V/415V |
| Warranty: |
1 Year |
| Color: |
as Client Required |
| Hertz: |
50Hz/60Hz |
| Certification: |
ISO |
| Condition: |
New |
