| Prod Model: |
c9335 |
| Material: |
Metal |
| Range Of Processing(Brake Drum): |
180-350mm |
| Range Of Processing(Brake Plate): |
180-350mm |
| Rotating Speed Of Workpiece: |
90 R/Min |
| Max. Travel Of Tool: |
100mm |
| Overall Dimension(Lxwxh): |
750X710X730mm |
| N.W/G.W: |
200/260 |
| Motor Power: |
0.75kw |
| Color: |
as Your Requirements |
| Voltage: |
as Your Requirements |
| Type: |
Emergency Tools |
| Certification: |
RoHS |
| Update Method: |
by Internet |
Product Description

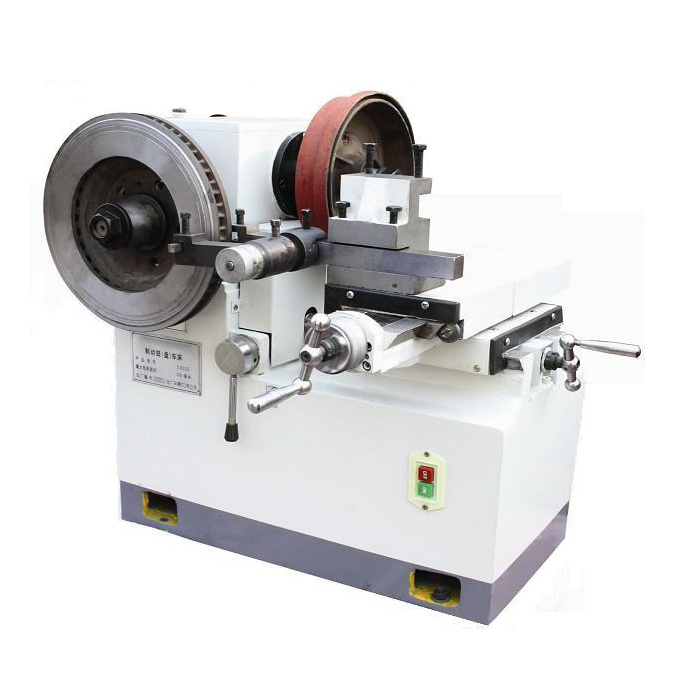

Cheap Brake drum and disc Cutting Lathe machine (C9335)
Brake Disc/Drum Lathe machine
1) Beautiful shape
2) Reasonable structure
3) Convenient operation
4) Safe and reliable
Features:
1. Quickly, accurately and efficiently to cutting rotor.
2. Fast and slow setting allow cutting rotor.
3. Quickly, accurately and efficiently to cutting drum.
4. Finitely adjustably setting allow cutting drum.
5. Three kinds of speed 70, 88, 118 rpm to choose for spindle speed.
6. A convenient design allows to quickly change from rotor to drum, with cross feed extension plate will be increase the maximum rotor diameter to 22'/588mm.
7. Position of stop make the lathe stop automatically after cutting.
8. Fully equipped with adapter package.
| Specification | Unit | C9335 | C9365 |
| Range of processing diameter | Brake drum | mm | φ180-φ350 | φ350-φ650 |
| Brake plate | mm | φ180-φ350 | φ180-φ400 |
| Rotating speed of workpiece | r/min | 90 | 30, 49, 88 |
| Max. travel of tool | mm | 100 | 256 |
| Overall dimension(LxWxH) | mm | 695x565x635 | 1750x800x815 |
| Packing dimension(LxWxH) | mm | 750x710x730 | 1165x956x915 |
| N.W/G.W | kg | 200/260 | 650/800 |
| Motor power | kw | 0.75 | 1.1 |
