Ceramic Honeycomb Catalyst Honeycomb Ceramic Substrate (Used In Vehicle)
| Price: |
US $ 10-20/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Ceramic Honeycomb Catalyst Honeycomb Ceramic Substrate (Used In Vehicle)
Description:The catalyst carrier is mainly used in the automotive and other high-temperature process exhaust. The main material is cordierite, after coated the catalyst, catalytic conversion of the exhaust, so as to achieve the national emission standards. It has characteristics of large surface area, small expansion coefficient, high strength, high water absorption, and good matching with the catalytic active component, heating up fast and
so on.Characteristics:- Large specific surface area: to ensure full access to the exhaust gas with the catalyst;
- Stable water absorption: to ensure the catalyst evenly firmly attached to the surface of the catalyst carrier;
- Warm-up: after start-up the engine, the temperature of the carrier can reach the catalyst activation temperature in the shortest possible time;
- Low exhaust resistance: the engine's exhaust resistance is small, to ensure that doesn't affect the engine performance;
- High strength: the operating environment of the catalyst carrier is in the bumpy car, so the catalyst carrier must be high strength without being external damage;
- Good assembly: the carrier is an exhaust assembly parts, only good appearance and precise dimensions can ensure perfect assembly.
Technical Data Sheet:| Name | index | Tolerance Range |
| Wall Thickness | 0.17mm | 0.03mm-0.02mm |
| Volume Weight | ≤460G/L | ±60G/L |
| Outside Dimension | 25-100mm | ±1mm |
| 100-15mm | ≤±1% |
| Perpendicularity | | ≤1.0%(height) |
| Depth of parallelism | | ≤1.0%(height) |
| mesh number | 200mesh, 300mesh, 400mesh | |
Physical and Chemical Properties:| Name | Unit | Index |
| Chemical Composition | Al2O3 | % | 35.1±1.6 |
| MgO | % | 13.5±1.5 |
| SiO2 | % | 50.0±1.8 |
| Compression Strength | A-axis | Mpa | ≥15.0 |
| B-axis | Mpa | ≥3.0 |
| C-axis | Mpa | ≥0.15 |
| Coefficient of Thermal Expansion (20-800ºC) | ºC | ≤1.5*10-6 |
| Soften temperature | ºC | ≤1410 |
| Thermal Shock Resistance | ºC | ≤550ºC |
| Water-absorbing rate | % | 24±4% |
| Cordierite Crystal Content | % | ≥90 |
| Open area | % | ≥70% |
Catalytic Principle:Using the noble metal catalyst which coated on the carrier, catalyze the harmful gases such as HC, CO, NOx, etc. at a suitable temperature, to make the reaction between three kinds of harmful gases, the reaction equation is as follows:
2CO+O2=CO2
2C2H6+7O2=CO2+6H2O

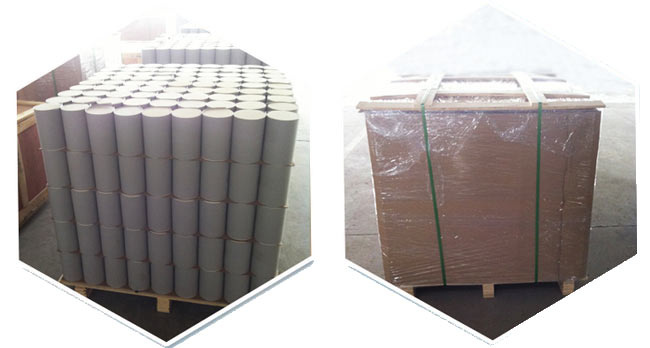

2NO+2CO=N2+2CO2Packages:
| Prod Model: |
Honeycomb Ceramic Catalyst Carrier |
| Usage: |
Automotive Emission Catalytic Converter |
| Discharge Standard: |
Euro IV |
| Certification: |
ISO9001 |
| Component: |
Catalytic Converter |
| Body Material: |
Cordierite |
Pingxiang XINGFENG Chemical Packing Co., Ltd. Is a hi-tech enterprise which specialized in researching, manufacturing, engineering construction and technical service, located in Pingxiang City--"the City of Industrial Ceramic of China". Our company was founded in 1992 in Jiangxi province Pingxiang city Dengxinqiao industrial ceramic factory. Since we always pay attention to product quality and integrity of operation, our scale of production and operation is expanding. In 2003, our company invested 50 million yuan to expand the new plant which covers 60000 square meters, to expand our production and operation covers all the tower packings and environment protection industry such as chemical packing, environment protection material, equipment, technical service and etc. Our main product are ceramic ball, molecular sieve, activated alumina, chemical packing, catalyst, chemical auxiliary, ceramic roller, refractory material, exhaust gas treatment equipment, waste water treatment equipment and technical service for all environment protection.
Our products are mainly used in petrochemical, oil refining, air separation, oxygen generation, chemical fertilizer, coal chemical, fine chemical, pharmaceutical, food, sulfuric acid, iron and steel, coking and other industries, and has been unanimously praised by users. We have establish cooperation relationship with many research institutes, and have strong technical support barriers. And we have import & export right, our products sold in more than 100 countries such as the Southeast Asia, the Middle East, America, Europe, Australia and etc.
We not only focus on promoting our products, but also pay more attention to provide high-quality professional technical services, at the same time, we will be a combination of technological innovation and business demand, has already built long time cooperation relationship with many petrochemical, fine chemical, pharmaceutical, steel, coal chemical enterprises, and obtain much economic benefits and social benefit. We sincerely hope that you will establish long time cooperation relationship with us, we will try our best to maximize the benefits for both of our two sides.
XINGFENG, a reliable partner who will create a beautiful future with you together!
