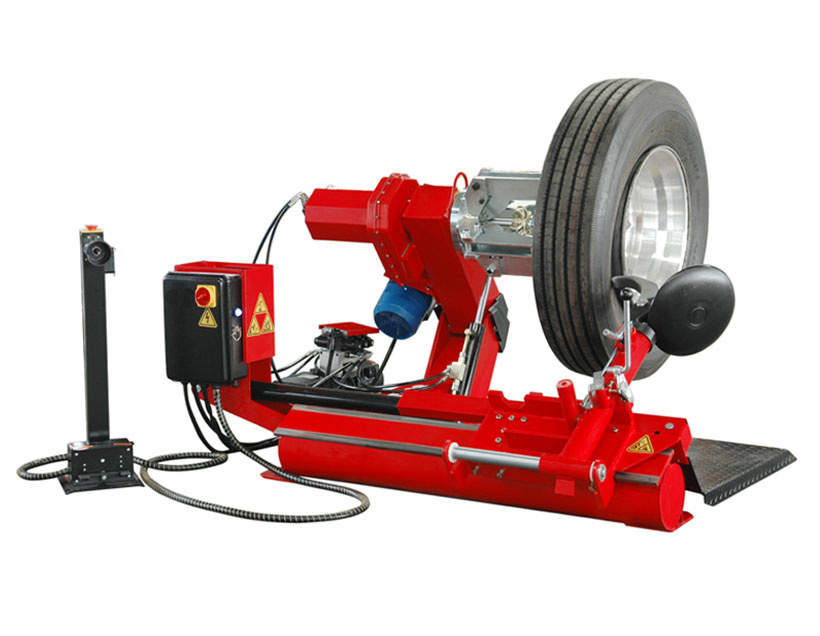

CE Truck Tire Changer Equipment

All movement of the working parts are guided by the movable control platform, particularly suitable for handling truck wheel, agricultural wheels, passenger car wheels and industrial vehicle wheels between 14" and 42" with deep grooved rims. It is an ideal mechanized equipment for maintenance wheel, for it saves time and labor with high efficiency, which does not damage to the inside of the rubber wheel or rim.

1. Full automatic controlling for lifting and falling of the working arm
2. Movable control platform, convenient for operation and observation
3. Working arm with quick speed rotation system and reversible rotation
4. Suitable for changing different type of tyre&wheel
5. Four oil cylinder
6. The product has passed CE certification

Max. Wheel diameter: 2300mm(91")
Handles rim from: 14"-42"
Max. Wheel width: 1065mm (42")
Hydraulic pump motor: 1.1kw 1.5kw 2.2kw
Power supply: 400V/3pH, 230V/3pH, 230V /1pH
Operating pressure: 0-130bar
Pneumatic supply: 8-10bar
Noise level: <70dB
Packing outside dimension: 2130× 1930× 1050mm.
