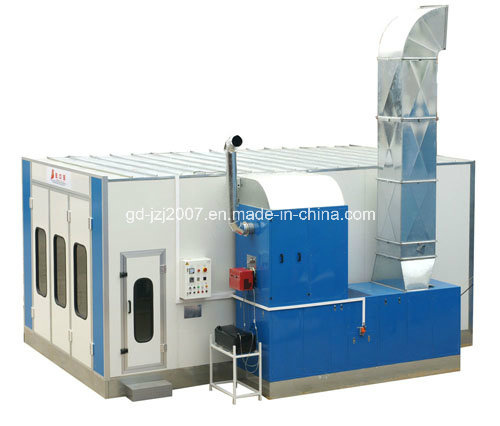

Ce Standard Paint Spray Booth Suitable for Europe

Prod Model:	BZB-T8000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificates:	CE and ISO
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

Specifications
1. CE supported;
2. Professional ventilation system & European-style blower;
3. Good pre-sale, in-sale & after-sale service

BZB-T8000

1) Outside dimension: 7046*5596*3430mm(L*W*H);

2) Inside dimension: 6900*4000*2650mm(L*W*H);

3) Basement: Adjustable base, complete steel assemble,
Height is 300mm, all twist grilles

4) Main door: 3-fold, 3000*2700 mm (W*H); Drive through;

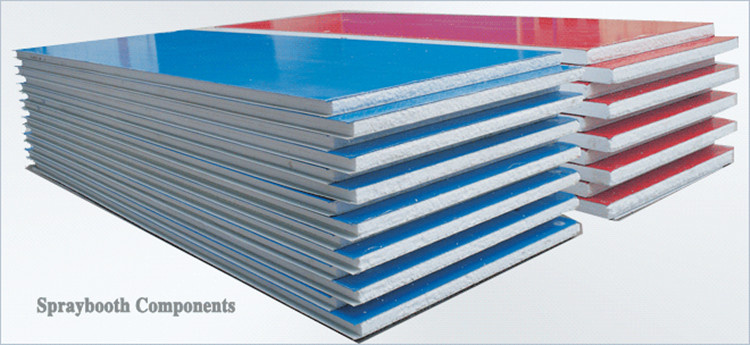

5) Wall Panels: Thickness is 70mm EPS panel;
0.476mm steel sheet; The roof panel is 50mm rock wool panel

6) Lighting: Ceiling Lights: 8Groups*5PCS=40PCS *40W;
Side lights: 8Groups*2PCS=16PCS *20W; Max1000Lux;

7) Glass: All glass is toughened glass;

8) Generator: Back upper intake air, back upper extract air, quadrate steel frame, coated steel;

9) Intake and exhaust air system:

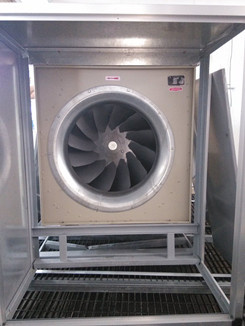

Intake fan: DDF- 800 turbo fan, 7.5KW, motor outside, direct drive, capacity: 25000m3/h;
Extract fan: DDF-800 turbo fan, 7.5KW, motor outside, direct drive, capacity: 25000m3/h;
One set air dry system YYF7112-200A1 cycle fan, 0.18kw in the four corner;

10) Duct: 700mm*700mm;
Intake air duct: 4m straight duct with a trapezoid protection hat; With electric damper
Exhaust air duct: 4m straight duct with a taper protection hat; With gravity damper

11) Heating system: RIELLO FS20 diesel burner (one stage), heating capacity is 200000Kcal/h, pneumatic damper from spraying to baking cycle, the heating time is 5~7 minutes;

12) Filtering system: Pre-filter, high efficiency filter (ceiling filter), floor filter, extract filter, the multilayer bag filtration

13) Control box: Spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, hour meter, pressure gauge, emergency stop, failure alarm, temperature control meter; Triangle drive, all lines contacts with the floor wire;

14) Power: 380V, 50Hz, 3Phase 4 lines
