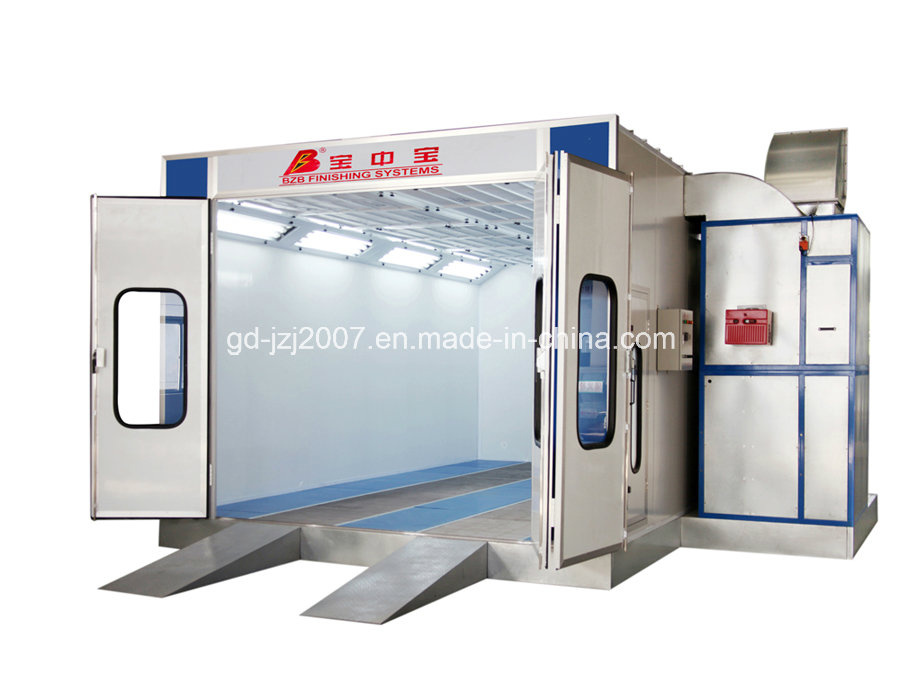

Ce Standard Heated Oven Spray Booth

Name: Ce Standard Heated Oven Spray Booth
Brand: ibuyautoparts.com
SKU: 668958805
Availability: InStock
Rating: 4.8 (30 reviews)

Price:	US $ 3500-9950/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZB-8100A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

Please feel free to tell us your detailed requirements of the booths, then we can design and manufacture it for you. We can totally undertake the design and manufacturing of any booth according to your specific requirements.

The below is our auto spray booth BZB-8100 model, it is very competive price and nice design. For more detailed information, please free to send us inquiries.

BZB-8100A MODEL
External size(mm)		7000×5350×3430
Internal size(mm)		6900×4000×2800
Front door		3000(W)×2700(H)
Total power		7.5kw
Cabin System	1.Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards,50mm Thick, Compound Construction, Anti-flame and Heat-Insulation,Handiwork Door,Galvanized Steel Roof Panel
	2.Basement:	Two Grid& Three Embossed Plate, Galvanized Steel Sheet Construction,Two Ramps made of embossed plate,each 600mm wide.
Air Circulation System	Inlet Fan	Capacity: 22000m 3 /h
		Power: 5.5kw/set
		Quantity: 1set
	Air Volume: 22000m 3 /h; Air Speed: 0.30m/h
Air Purification system	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 5μm. The floor filter is fiberglass filter.The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. TSP≤1.4mg/m3
Heating System	1.Burner	Italy Riello Brand, G20 Diesel Burner, 180000Kcal/h.
	2.Heat Energy Converters	Stainless Steel, Argon Arc Welding. The Heat Exchange Rare 85%
	Max Temp:80 centi degree,Heating Time:4-6min(20-60centi degree), Fuel Consumption:4-6kg/vehicle,10N Damp Motor
Lighting System	Ceiling Light: 32 pcs 36w Philips Lamp;800Lux
Electronic Controlling System	Micro Computer Programe Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
Environmental system	optional environmental cabin

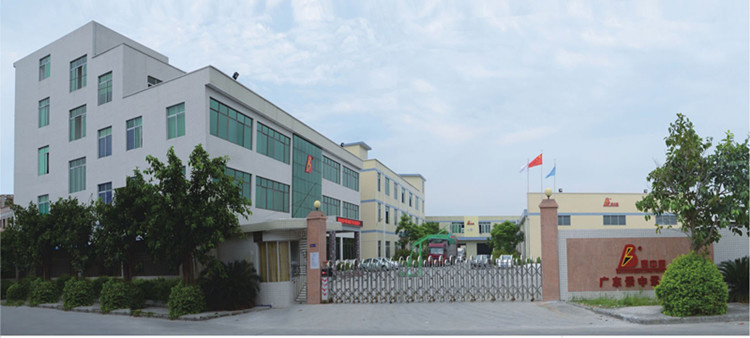

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
