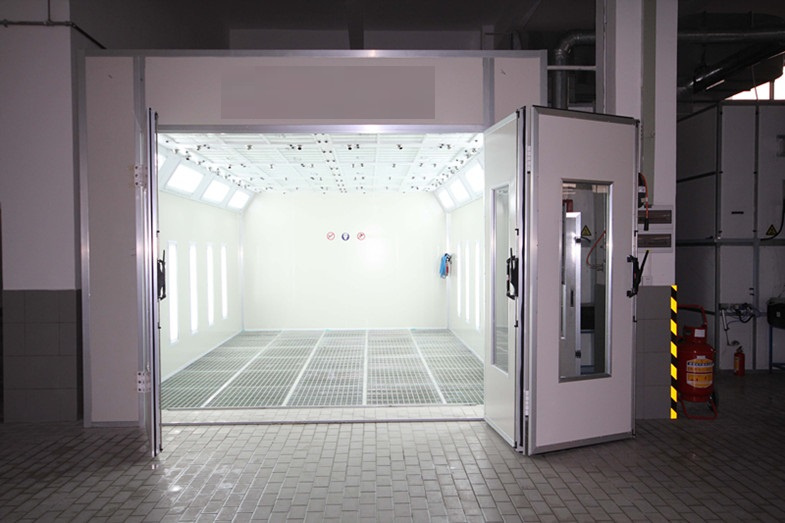

CE Standard Car Spray Booth, Auto Repair Painting Room
| Price: |
US $ 5600-11800/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Car Painting Room |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inside Dimension: |
6900X4000X2600mm(Lxwxh) |
| Outside Dimension: |
7000X5600X3250mm(Lxwxh) |
| Main Door: |
3-Folds, 2700X2500mm(Wxh) |
| Personal Door: |
1fold, 650X1800mm(Wxh) |
| Wall Panel: |
50mm EPS Panel with 0.5mm Thinkness |
| Basement: |
5rows of Grids |
| Lighting System: |
24PCS Ceiling Lights, 16PCS Side Lights |
| Intake Fan: |
2X4kw Double-Intake Centrifugal Fans |
| Exhaust Fan: |
1X5.5kw Double-Intake Centrifugal Fans |
| Heating System: |
Italian Riello G20 Diesel Burner |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Captain |
Product Description
Detailed Product DescriptionCar Care Down Draft Spray Booth, Auto repair painting and baking Room (OEM)
Automobile, Vehicle, Furniture Painting Down Draft Spray Booth, Room With 3 -Fold Door
Ventilation System Vertical Down Draft Spray Booth, Station for Auto Painting
Auto Care Painting, Baking, Polish Down Draft Spray Booth with Italian Riello burner G20
Stainless steel heat exchanger Auto Spray Booths for car repair, painting, baking
Automobile Maintenance Baking, Drying, Auto Spray Booths And Repair Painting Room
1. White, orange. Blue
2. For automobile
3. Complete steel assemble Basement and floorPackaging & DeliveryPackaging Detail: Export professional packages. Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish
Delivery Detail: To effect shipment within 7 days after deposit | Inside Dimension | 6900X4000X2600MM(LXWXH) |
| Outside Dimension | 7000X5600X3250MM(LXWXH) |
| Main door | 3-folds, 2700×2500mm(W×H), with heat insulation glass window, handmade
door without aluminum alloy door frame |
| Personal door | 1fold, 650×1800mm(W×H), with one step. There is two sets of pressure lock
which will automatically open when the pressure inside is over the limit |
| Booth System | Wall panel :EPS(epispastics polystyrene) heat preservation panel, thickness:
50mm, width: 950mm; roof panel: galvanized plate |
Basement and floor:Adjustable height bolt, complete steel assemble. 5rows of
grids. 3pcs of ramps. |
| Lighting System | Ceiling light: 3Pcs X8units=24PcsX36W, Lower light: 2Pcs X8units=16PCsX30W
Philip tube, horizontal installation, with electronic ballasts, lighting box made of
cold roll steel plate, white powder coating |
| Glass | All windows and light cover by ovenproof toughened glass |
| Generator setting type | Intake air from side upper and exhaust air from back upper, framed with aluminum
alloy, white coated steel plate |
| Ventilation System | Intake fan:2X4Kw double-intake centrifugal fans, model:YDW 4.5L, air
capacity is 25000m3 /h. |
| Exhaust fan:1Pc 5.5Kw double-intake fans exhaust air cabinet , model:YDW4.5S, air capacity is15000 m3/h |
| Heating system | Italian Riello G20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 6~8 min. Gas burner as optional |
SUS304 Stainless steel heat exchanger, anti-explosion hole for protection,
highest temperature 80C, 1pc electric damper from spraying to baking cycle.
Reasonable structure, safe and reliable, big heat exchanging area, high heat
utilization, more than 87.1% heat exchanging rate |
| Filter system | Prefilter, high efficiency filte (ceiling filter), floor filter, exhaust active carbon
filter |
| Control system | Spraying, risen-temperature spraying, baking temperature, time setting,
lighting switch, time accumulator, pressure gauge, emergency stop, failure
alarm, limited-temperature device |
| Total power | 16KW |

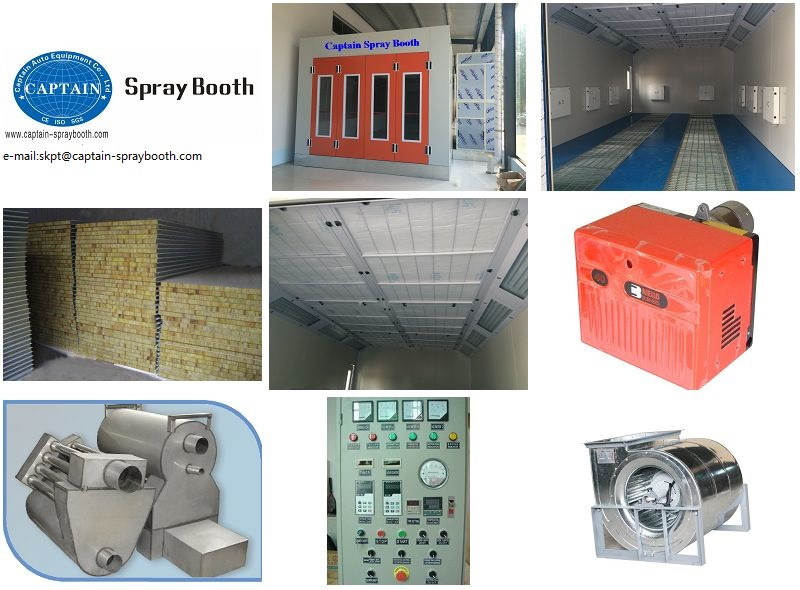

pictures to show parts of the spray booth

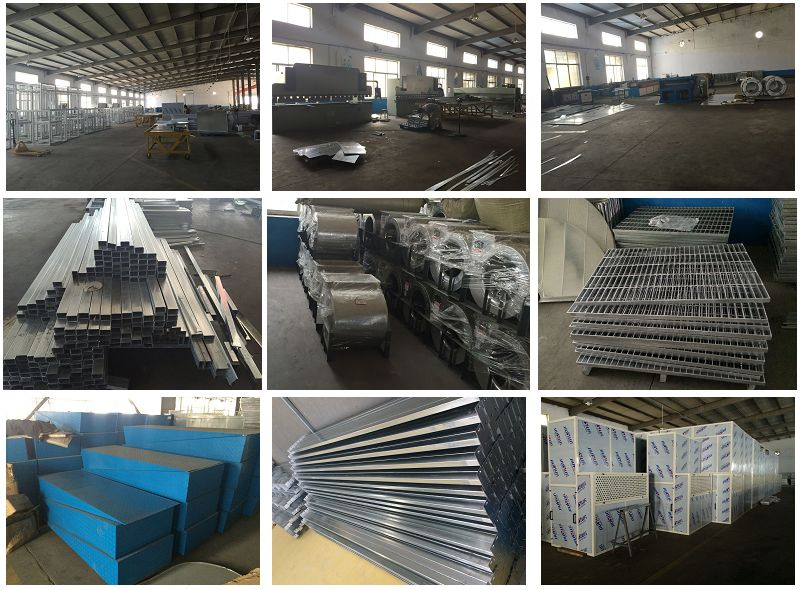

pictures to show our standard workshop and enough stock to ensure fast delivery
Sincerely hope we can get your inquiry, and warmly welcome to our factory!
I'm just here waiting for you!
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
