CE Standard Auto Repair Tool
| Price: |
Negotiableset |
| Trade Terms: |
FOB |
| Min Order: |
1set |
| Pay Type: |
T/T |

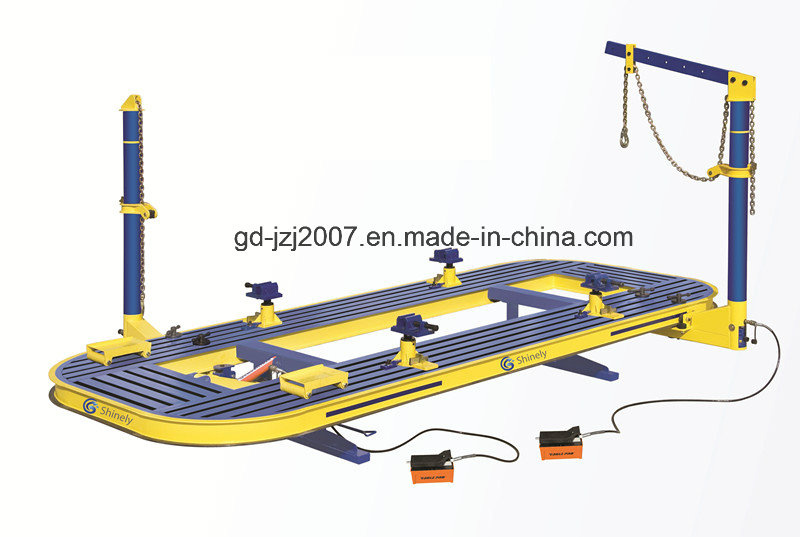

SY-L189 is a channel and mesh work bench which is researched and designed by ourselves according to the repair requirement of a variety of models at domestic and abroad, which has many improvement in welding technology, choosing material, equipment parameters and stress intensity and so on. It is very precise, faster, non-working blind, be in accord with the technician habit, high grade configuration and more convenience for operation. It is particularly suitable for all kinds of import cars, commercial vehicle and SUV which need intensive stretching. SPECIFICATION:| LENGTH | 5600MM |
| WIDTH | 2232MM |
| HEIGHT | 560MM |
| PULLING CAPACITY | 100KN |
| AIR SUPPLY REQUIRED | 0.8MPA |
| RADIUS OF PULLING | 360° |
| MAX LOAD | 3500KG |
·The platform is slot form and reticulation structure which is firstly designed and researched in domestic by ourselves. It conforms to operating requirement, usage and security of technician at home and abroad. Working platform adopts excellent quality 14# GB I-beam, 6 row I-bean design, very wide(2232mm) and long(5600mm),so it can meet the demand of repairing for small car and commercial vehicle and other integrated model car. Tilt hydraulic lifting platform makes the accidental vehicle loadedand unloaded more convenient(even drive the car onto the platform directly). The tower can be rotated 360 degree along the platform which is operated more convenient, more intensity. The material use 10mm seamless pipe. The unique design of the main clamps spiral movements, in thejaw to maintain the level of state, the upper and lower pole vertically movements, fine-tuning the level of all kinds of different vehicle chassis height of rapid adjustment The jaws of main clamps unique adjustable design, only two screws, the thimble jaws, a variety of auto models that the rapid clamping firm to improve work efficiency. The tools mechanical streamline design, after metal, heat treatment process, long service life and high-intensity, almost considered all deformation correction. The leading arm can supply multi-direction tensile during the collision repair. High-precision alloy measurement system can be realized threedimensional measurement, control body size and the same as the original car. Eagle pro pump which is made in China | SY-L189 Configuration List |
| No. | Model No. | Quantity(set) |
| I | SY-L189 Frame racks | 1 |
|
| 1) | Fixed support leg | 1 |
| 2) | Movable support leg | 1 |
| 3) | Tilt- lift of platform(include oil cylinder) | 1 |
| 4) | Ramps | 2 |
| II | 360 degree tower (include Top Bar) | 2 |
| 1) | Push rod of cylinder | 2 |
| 2) | Bolts for fixing towers | 4 |
| 3) | Bolt plates for fixing towers | 4 |
| 4) | Nut for fixing towers | 4 |
| 5) | in-built adjustable collars | 2 |
| 6) | 3.5m Main chain(with chain hook) | 2 |
| 7) | Protective wire | 2 |
| 8) | 10T high pressure cylinder | 2 |
| 9) | Leading arm,U-shape shelf,chain wheel | 1 |
| III | Tiger style main clamp | 4 |
| 1) | Foot for fixing jaws clamp (M12 bolts) | 4 |
| 2) | Screw clamp of main clamp | 4 |
| 3) | Bolts, pressure plate, nut for fixing jaws main clamp | 4 |
| IV | Measuring system | 1 |
| 1) | PTP Measuring system |
|
| 2) | Data disk | 1 |
| V | Wheel dolly | 2 |
| VI | Pneumatic pump(including oil pump,the quick couplers) | 2 |
| VII | Tools board(Pothook) | 1 |
1) | Pothook | 20 |
| VIII | Pulling Clamping Accessories |
|
| 1) | Chains 1.2m with rake body | 2 |
| 2) | Small clamp | 1 |
| 3) | Mini clamp | 1 |
| 4) | Width clamp | 1 |
| 5) | C-clamp | 1 |
| 6) | right angle clamp | 1 |
| 7) | Clamp with chain | 1 |
| 8) | strut puller kit | 1 |
| 9) | Big hook(1-3) | 1 |
| 10) | Deep hook | 1 |
| 11) | Slotted Chain Anchor | 2 |
| 12) | Multi hole pull plates | 1 |
| 13) | nylon sling | 1 |
| 14) | Steel wire | 1 |
| 15) | Handy link | 1 |
| 16) | Crescent spanner | 1 |
| 17) | Double Chain Hook | 1 |
| 18) | Down-pulling Device | 1 |
| 19) | Use of winch | 1 |
| 20) | Wheel bracket | 2 |
| IX | Operating manual | 1 |
| Prod Model: |
SY-L189 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
as Require |
| Type: |
Flatbed-type |
| Max. Lifting Capacity: |
3.5T |
| Certification: |
CE |
| Condition: |
New |
Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.
Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.
It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
